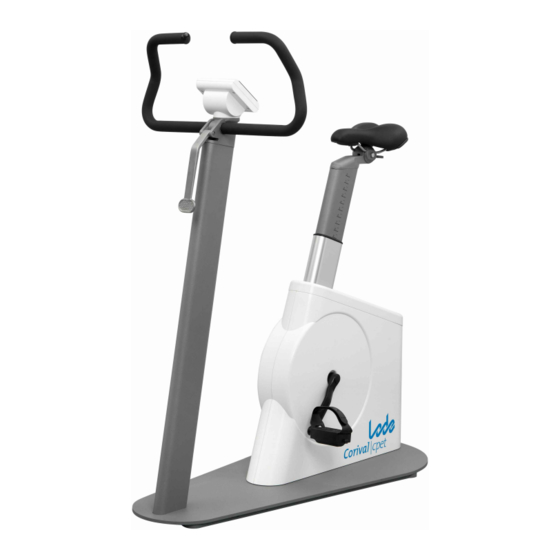

Interface sheet - Cosmed Omnia - Corival CPET
Service documentation
Lode BV
Zernikepark 16
NL 9747 AN Groningen
The Netherlands
t: +31 50 571 28 11
f: +31 50 571 67 46
@: ask@lode.nl
www.lode.nl
INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORIVAL CPET and is the answer not in the manual?

Questions and answers

Related Manuals for Lode CORIVAL CPET

Summary of Contents for Lode CORIVAL CPET

  • Page 1 Service documentation Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29...

  • Page 2: Table Of Contents

    Table of contents Table of contents 1 - List of symbols used 1 - List of symbols used 2 - Validity 2 - Validity 3 - Setup instructions - Cosmed Omnia 3 - Setup instructions - Cosmed Omnia 3.1 - Cable Selection 3.2 - Software setup 3.3 - Ergometer Setup 4 - Setting up the hardware...

  • Page 3: List Of Symbols Used

    This interface form covers the following Lode products: * All Corival ergometers starting with serialnumber 9609xx-20150001 If your treadmill or ergometer is not covered by this interface form please contact Lode service service@lode.nl INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29...

  • Page 4: Setup Instructions - Cosmed Omnia

    In case you are using the Cosmed K5 you may connect the RS232 or USB A-to-B cable to the computer directly. 3.2 - Software setup 3.2 - Software setup Select COSMED device to use for the test (Main menu > Utility > DeviceManager) INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 4/22...

  • Page 5: Ergometer Setup

    OK. The procedure is explained in the next chapters. 3.3 - Ergometer Setup 3.3 - Ergometer Setup The following protocol needs to be set in the Lode ergometer to communicate with the external equipment. Bicycle ergometer: Lode Protocol The next chapters describe the procedures to setup these protocols depending on the type of ergometer.

  • Page 6: Setting Up The Hardware

    4 - Setting up the hardware Setting up the hardware Lode ergometers have two ways of connecting external devices. The cable selection depends on the connection possibilities of the external device. The previous chapter tells you which cable you need. This can be a RS232 cable or a USB cable.

  • Page 7: Connecting With The Usb Cable

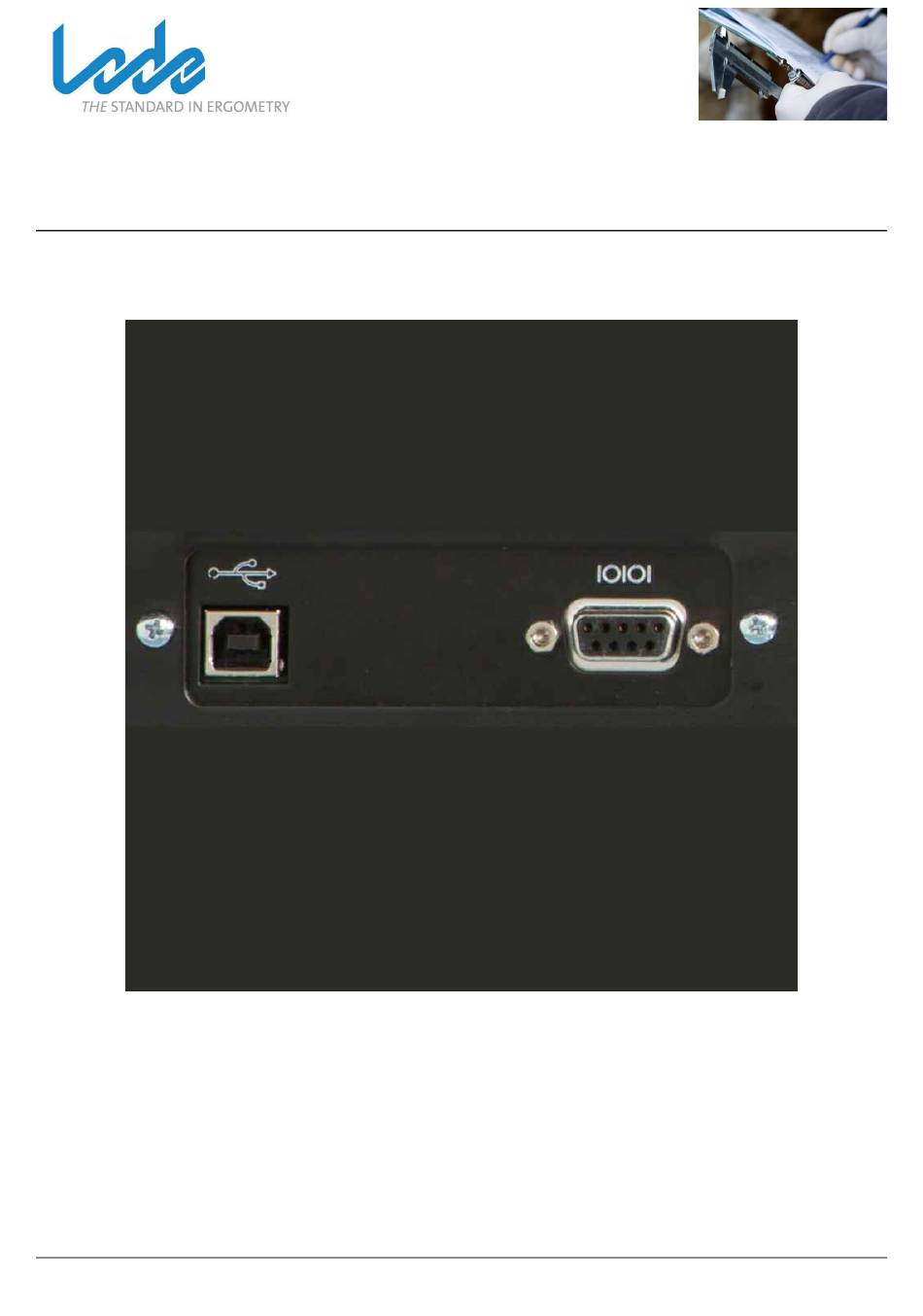

    If there is no other connection available you can also use a USB cable to connect. 1. You will need an USB A to B cable (Lode part no. 930916) to establish communication between the Lode ergometer and your stress system or ergospirometrysystem.

  • Page 8: Treadmill Or Ergometer With 3.5" Touch Screen Unit

    Swipe with your finger over the screen as indicated with the red arrow in the picture to go to the main menu. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 8/22...
  • Page 9 The menu "Service" is only intended for service purposes to be executed by factory trainend personel. Select "Terminal Settings" to change the communication protocol. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 9/22...
  • Page 10 Select the Communication protocol as desribed in "Ergometer setup" chapter. Select "Default" for the baudrate. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 10/22...
  • Page 11 Select "RS232" or "USB" depending in which cable you have connected to the Lode ergometer. Select the button with the house to go back to the main menu. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 11/22...
  • Page 12 Select "Terminal" to set the ergometer in terminal mode. Your device is now ready for external control. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 12/22...

  • Page 13: Treadmill Or Ergometer With 7" Touch Screen Control Unit

    Test window or main menu. To access the menu from the Test window you need to swipe the graph area of the touch screen as indicated in the picture. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 13/22...
  • Page 14 "Terminal". Select the communication protocol ad described in the "Ergometer setup" chapter. Use the scroll button to view the complete list. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 14/22...
  • Page 15 Select "Default" for the baudrate. Select "RS232"or "USB" depending on the type of cable that you connected to the Lode ergometer. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 15/22...
  • Page 16 - Go to the settings menu - Select "Default Start Menu" - Select "Terminal" - Switch the ergometer off and on. It will boot directly into terminal mode. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 16/22...

  • Page 17: Nummerical Control Unit - Treadmill Only

    7 - Nummerical Control Unit - Treadmill only 7 - Nummerical Control Unit - Treadmill only 1. Press and hold key #1 and #2 as shown on "Figure 1" for 10 seconds. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 17/22...
  • Page 18 3. By using the "+" and "-" keys for the grade adjustment #3 you can change the "0" behind terminal to "1" to activate the Terminal mode. 4. Press enter #4 and "prot id" will be shown on the display, for Lode protocol this should be set to "1". Set the protocol as described in the "Ergometer setup" chapter.

  • Page 19: Treadmill Or Bicycle Without Control Unit

    Connect an USB cable from the computer to the USB port of the treadmill or use a RS232 cable from the computer to the RS232 port Start the Lode Service Manager and login with the same account details that you use to login on the website.
  • Page 20 6. Switch the device off, wait 10 seconds 7. Switch the device on The screen as shown left should show up within 5 seconds after powering up. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 20/22...
  • Page 21 Lode ergometer. Select default for the baudrate. Note that Default should always be selected unless different specified by your dealer. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 21/22...
  • Page 22 Your device is now ready for use with the external controller. Note that the device is automatically switched to terminal mode when no manual controller is present at the device itself. INTERFACE SHEET - COSMED OMNIA - CORIVAL CPET / VERSION: 1.0 - 2016-11-29 22/22...
