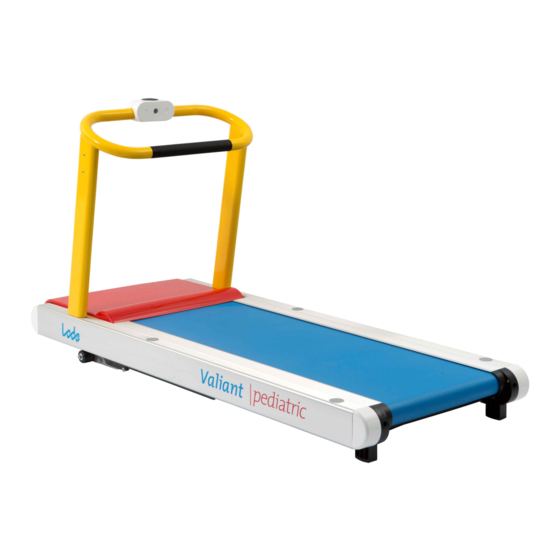

- Page 1 Manual - Valiant 2 Pediatric Pediatric Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25...
-
Page 2: Table Of Contents
9 - Cleaning 10 - Control with an External Device 10 - Control with an External Device 11 - Control with the Lode Ergometry Manager (LEM) 11 - Control with the Lode Ergometry Manager (LEM) 12 - List of symbols used... -
Page 3: Intended Use
Care should be taken in mounting or dismounting the ergometer. Be aware of feet when replacing the ergometer. The operator should not touch accessible parts and the patient simultaneously. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 3/21... - Page 4 The test subject shall wear clothes when using the harness or the lanyard belt to prevent skin irritation. Replacement of parts can only be done by the manufacturer or designated service personnel. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 4/21...
- Page 5 If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of the equipment. Cleaning and user maintenance shall not be made by children without supervision. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 5/21...
- Page 6 The test subject should wear proper sports clothing. The operator should check possible entrapment of clothing, fingers or feet, before the start of an exercise test. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 6/21...
-
Page 7: Contra Indication
Application of the wrong dosis of energy could lead to permanent damage of the test subject health. Only use this device under supervision of a medical physician. 4 - Definition of parts M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 7/21... -
Page 8: Validity
Date of issue: June 14 6 - Install your treadmill 1. While unpacking the Lode treadmill ergometer, leave the transport straps on both ends in place. 2. Place the treadmill in the location where it will be used. 3. Remove Both transport straps and remaining packaging materials. -
Page 9: Maintenance
Opening of the equipment by unauthorized agencies is not allowed and will terminate any claim to warranty. Lode will make available on request circuit diagrams, component part lists, descriptions, calibration instructions, or other information that will assist authorized service personnel to repair those parts of the ergometer that are designated by Lode as repairable by authorized service personnel. -
Page 10: Belt Alignment
The red marked area shows where you can check the belt alignment. The goal is to align the belt edge exactly in the center of the hole. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 10/21... -
Page 11: Cleaning
9 - Cleaning The belt can be cleaned with a sponge, with little lukewarm water. Allow the belt to dry thoroughly after cleaning before re-using the treadmill. M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 11/21... -
Page 12: Control With An External Device
1. Connect the device with the supplied cable to the external device. You can control the device with e.g. an exercise ECG device or Metabolic Card. 2. Download the interfacing instructions from the internet at www.lode.nl after you have registered your device. -
Page 13: List Of Symbols Used
12 - List of symbols used External Control Connector Emergency Stop Network (Proprietary Lode) Class I MEDICAL EQUIPMENT Type B Electrical Safety IEC 60601-1 Safety notes Potential Equalization Conductor RS232 M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 13/21... - Page 14 European Parliament and of the Council on waste electrical an electronic equipment are necessary to reduce the waste management problems linked to the heavy metals concerned and the flame retardants concerned M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 14/21...
- Page 15 M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 15/21...
- Page 16 M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 16/21...
-
Page 17: Electromagnetic Compatibility (Emc)
13 - Electromagnetic Compatibility (EMC) M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 17/21... -
Page 18: Specification Remarks
The specification in this manual is of the basic version of the product at the time of the publication of this manual. The specification of all actual versions can be found on the Lode website. www.lode.nl Changes to specifications can be made without prior notice. - Page 19 Easy networking with subject and test storage LEM and LCRM operator Universal treadmill Arm Bottle holder Extension for emergency Speed 0.5 – 20 km/h for Network Module Support lanyard Valiant 2 M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 19/21...
- Page 20 USB to Serial converter RS232 cable Partnumber: 226012 Partnumber: 226012 Partnumber: 930911 Partnumber: 930911 Easy connection Easy connection USB to Serial converter RS232 cable M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 20/21...
-
Page 21: Specifications
115 V AC 50/60 Hz (2 phases) 230 V AC 50/60 Hz Maximum motor power 1.8 kW Standards & Safety IEC 60601-1:2005 ISO 13485:2016 compliant ISO 9001:2015 compliant Standard emergency lanyard Order info Partnumber 938904 M938904_MANUAL VALIANT 2 PEDIATRIC / VERSION: V1.1 - 2016-08-25 21/21...
