Lode Edan EC-12 EXPRESS Service Documentation

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Interface sheet - Edan EC-12 EXPRESS - CPET treadmill
Service documentation
Lode BV
Zernikepark 16
NL 9747 AN Groningen
The Netherlands
t: +31 50 571 28 11
f: +31 50 571 67 46
@: ask@lode.nl
www.lode.nl
INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Edan EC-12 EXPRESS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lode Edan EC-12 EXPRESS

Summary of Contents for Lode Edan EC-12 EXPRESS

  • Page 1 Service documentation Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22...

  • Page 2: Table Of Contents

    Table of contents Table of contents 1 - List of symbols used 1 - List of symbols used 2 - Validity 2 - Validity 3 - Setup instructions Edan EC12 Express 3 - Setup instructions Edan EC12 Express 3.1 - Cable selection 3.2 - Software Setup 3.3 - Ergometer setup 4 - Setting up the hardware...

  • Page 3: List Of Symbols Used

    * All Valiant treadmills starting with serial number 932900-20122XXX and 9329XX-20121XXX * All Valiant 2 treadmill starting with serial number 9389xx-20140001 If your treadmill or ergometer is not covered by this interface form please contact Lode service service@lode.nl INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22...

  • Page 4: Setup Instructions Edan Ec12 Express

    4. Select TMX425 in the Device Model pull-down list. 5. Press the OK key. The Edan ECG is now ready for communication with the Treadmill. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 4/22...

  • Page 5: Ergometer Setup

    3.3 - Ergometer setup 3.3 - Ergometer setup The following protocol needs to be set in the Lode ergometer to communicate with the external equipment. Treadmill ergometer: Trackmaster The next chapters describe the procedures to setup these protocols depending on the type of ergometer.

  • Page 6: Setting Up The Hardware

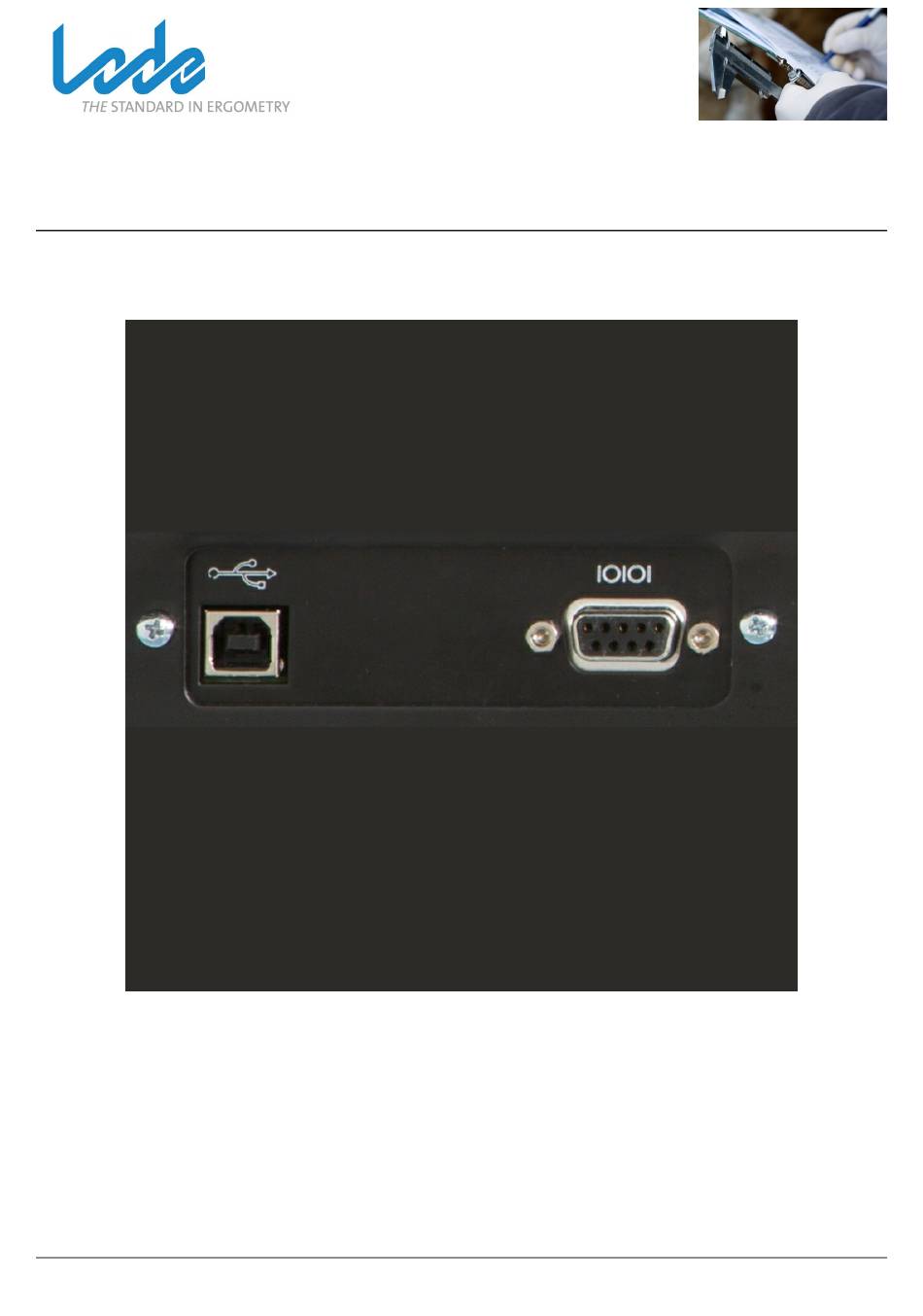

    4 - Setting up the hardware Setting up the hardware Lode ergometers have two ways of connecting external devices. The cable selection depends on the connection possibilities of the external device. The previous chapter tells you which cable you need. This can be a RS232 cable or a USB cable.

  • Page 7: Connecting With The Usb Cable

    If there is no other connection available you can also use a USB cable to connect. 1. You will need an USB A to B cable (Lode part no. 930916) to establish communication between the Lode ergometer and your stress system or ergospirometrysystem.

  • Page 8: Treadmill Or Ergometer With 3.5" Touch Screen Unit

    Swipe with your finger over the screen as indicated with the red arrow in the picture to go to the main menu. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 8/22...
  • Page 9 The menu "Service" is only intended for service purposes to be executed by factory trainend personel. Select "Terminal Settings" to change the communication protocol. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 9/22...
  • Page 10 Select the Communication protocol as desribed in "Ergometer setup" chapter. Select "Default" for the baudrate. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 10/22...
  • Page 11 Select "RS232" or "USB" depending in which cable you have connected to the Lode ergometer. Select the button with the house to go back to the main menu. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 11/22...
  • Page 12 Select "Terminal" to set the ergometer in terminal mode. Your device is now ready for external control. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 12/22...

  • Page 13: Treadmill Or Ergometer With 7" Touch Screen Control Unit

    *Note that for this instruction the graphic view for a Lode Corival is used. The view for a treadmill might difer a bit but the procedure is the same. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 13/22...
  • Page 14 "Terminal". Select the communication protocol ad described in the "Ergometer setup" chapter. Use the scroll button to view the complete list. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 14/22...
  • Page 15 Select "Default" for the baudrate. Select "RS232"or "USB" depending on the type of cable that you connected to the Lode ergometer. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 15/22...
  • Page 16 - Go to the settings menu - Select "Default Start Menu" - Select "Terminal" - Switch the ergometer off and on. It will boot directly into terminal mode. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 16/22...

  • Page 17: Nummerical Control Unit - Treadmill Only

    7 - Nummerical Control Unit - Treadmill only 7 - Nummerical Control Unit - Treadmill only 1. Press and hold key #1 and #2 as shown on "Figure 1" for 10 seconds. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 17/22...
  • Page 18 3. By using the "+" and "-" keys for the grade adjustment #3 you can change the "0" behind terminal to "1" to activate the Terminal mode. 4. Press enter #4 and "prot id" will be shown on the display, for Lode protocol this should be set to "1". Set the protocol as described in the "Ergometer setup" chapter.

  • Page 19: Treadmill Or Bicycle Without Control Unit

    Connect an USB cable from the computer to the USB port of the treadmill or use a RS232 cable from the computer to the RS232 port Start the Lode Service Manager and login with the same account details that you use to login on the website.
  • Page 20 6. Switch the device off, wait 10 seconds 7. Switch the device on The screen as shown left should show up within 5 seconds after powering up. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 20/22...
  • Page 21 Lode ergometer. Select default for the baudrate. Note that Default should always be selected unless different specified by your dealer. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 21/22...
  • Page 22 Your device is now ready for use with the external controller. Note that the device is automatically switched to terminal mode when no manual controller is present at the device itself. INTERFACE SHEET - EDAN EC-12 EXPRESS - CPET TREADMILL / VERSION: 1.0 - 2015-10-22 22/22...
