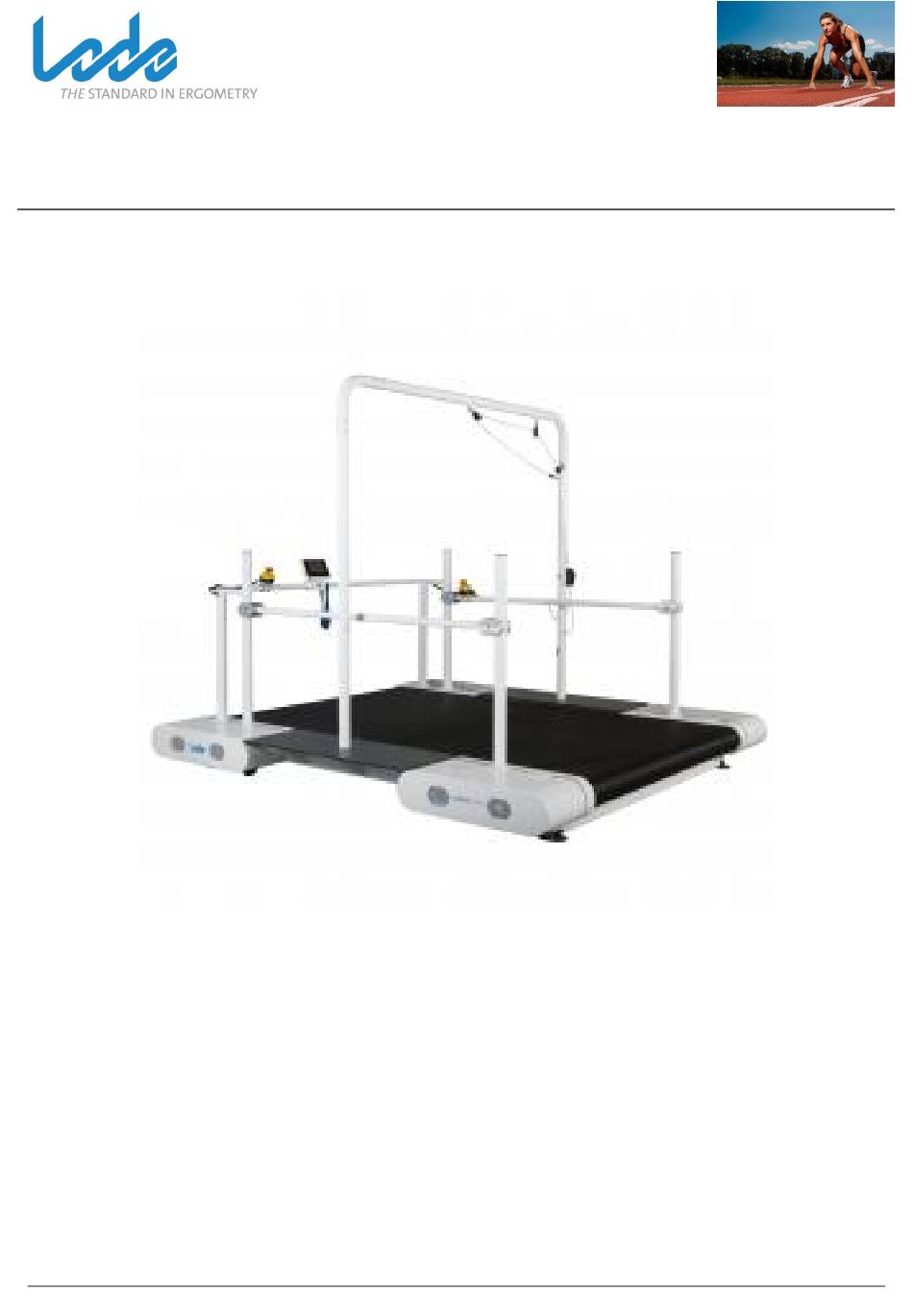

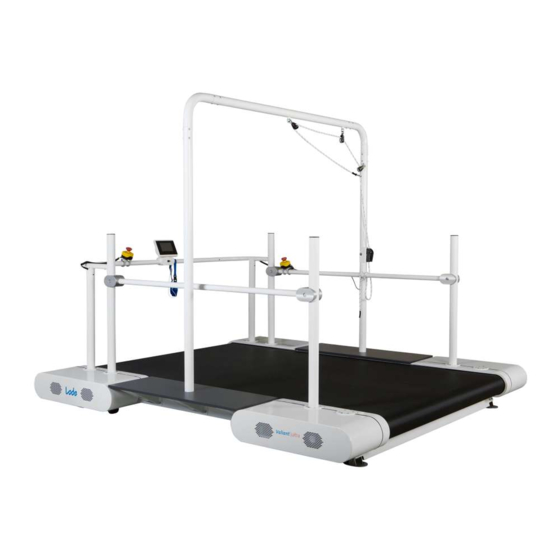

- Page 1 Manual - Valiant Ultra Sports Medicine Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl M938925 / VERSION: 1.0 - 2015-01-09...
-
Page 2: Table Of Contents
7 - Control with an External Device 8 - Control with Control Unit 8 - Control with Control Unit 9 - Control with the Lode Ergometry Manager (LEM) 9 - Control with the Lode Ergometry Manager (LEM) 10 - Maintenance... -
Page 3: Intended Use
Lode devices is to create reproducible stress tests. With cycling ergometers typically workload (watt) is imposed. With treadmills typically speed (km/h) and inclination (% grade) are imposed. A Lode product is designed both for manual operation and for control by external ECG-, pulmonary equipment. Most likely this device will be used in conjunction with another medical device to obtain other important physiological data, allowing a physician to evaluate a test subjects physical status. - Page 4 The operator must keep away from the footrail while lowering. Do not place any loose parts or objects on the device before and during use. Replacement of parts can only be done by the manufacturer or designated service personnel. Read the user guide and follow it carefully before using the device. Service of this device is restricted to factory trained personnel only.
- Page 5 Replacement of the power supply cord should be installed by authorised service personnel, instructions for correct connection and anchoring must be ensured, securing that the requirements of clause 8.11.3 of IEC 60601 1:2005 are met. Inspect the device for worn or loose components prior to use. Tighten / replace any loose or worn components prior to use.
- Page 6 Children being supervised are not to play with the appliance. Children shall not play with the appliance Heart rate monitoring systems may be inacurate. Over-exercise may result in serious injury or death. If you feel faint stop exercising immediately. Keep away from the rollers Move the entrance plate away from the treadmill before switching on When using a bike on the treadmill, the subject needs to be instructed never to use the brake.
-
Page 7: Contra Indication
4 - Validity 4 - Validity This manual covers all Valiant 2 Ultra versions starting with the following serial numbers: 938925 Valiant Ultra: S/N 20150001 - .. 938930 Valiant Ultra: S/N 20150001 - .. 938945 Valiant Ultra: S/N 20150001 - .. -
Page 8: Installation
1. Service Connector 2. Communication Module 3. On/Off switch 4. Equipotential bonding plug 5. Safety symbols tag 6. Serial number tag 7. Motor compartment for height adjustment and drive 8. Motor compartment for height adjustment 9. Walking surface [APPLIED PART] 10. -
Page 9: Emergency Stop Installation
ECG device or Metabolic Card. 2. Download the interfacing instructions from the internet at www.lode.nl after you have registered your device. 3. If your device has a control unit, select “Terminal”- mode to allow external commands. When the device does not have a control unit the terminal mode is automatically selected. -
Page 10: Troubleshooting
Opening of the equipment by unauthorized agencies is not allowed and will terminate any claim to warranty. Lode will make available on request circuit diagrams, component part lists, descriptions, calibration instructions, or other information that will assist authorized service personnel to repair those parts of the ergometer that are designated by Lode as repairable by authorized service personnel. - Page 11 Network (Proprietary Lode) Potential Equalization Conductor Symbol for collection, treatment, recycling and disposal of waste electrical and electronic equipment (WEEE) as set out in Directive 2002/96/EC of 27 January 2003 of the European Parliament and of the Council on waste electrical...
-
Page 12: Accessories
Emergency Stop Button Extension for emergency lanyard Heart rate for treadmills Programmable Control Unit Reverse walking for Valiant Ultra SpO2 for control unit SpO2 for control unit Table foot for Control Wheelchair support for with touch panel... -
Page 13: Specifications
15 - Specifications 15 - Specifications Workload Connectivity Maximum speed 40 km/h 24.9 mph Lode 38K4 interface protocol Minimum operational speed 1 km/h 0.6 mph Lode ERM interface protocol Speed adjustment steps 0.1 km/h 0.1 mph "HP Cosmos" interface protocol... - Page 14 Environmental conditions Maximum operational temperature 40 °C Minimum operational temperature 14 °C Maximum operational air pressure 106 kPa Minimum operational air pressure 70 kPa Maximum operational non-condensing humidity 90 % Minimum operational non-condensing humidity 30 % Maximum storage & transport temperature 70 °C Minimum storage &...
