Summary of Contents for Ecler MIMO7272DN

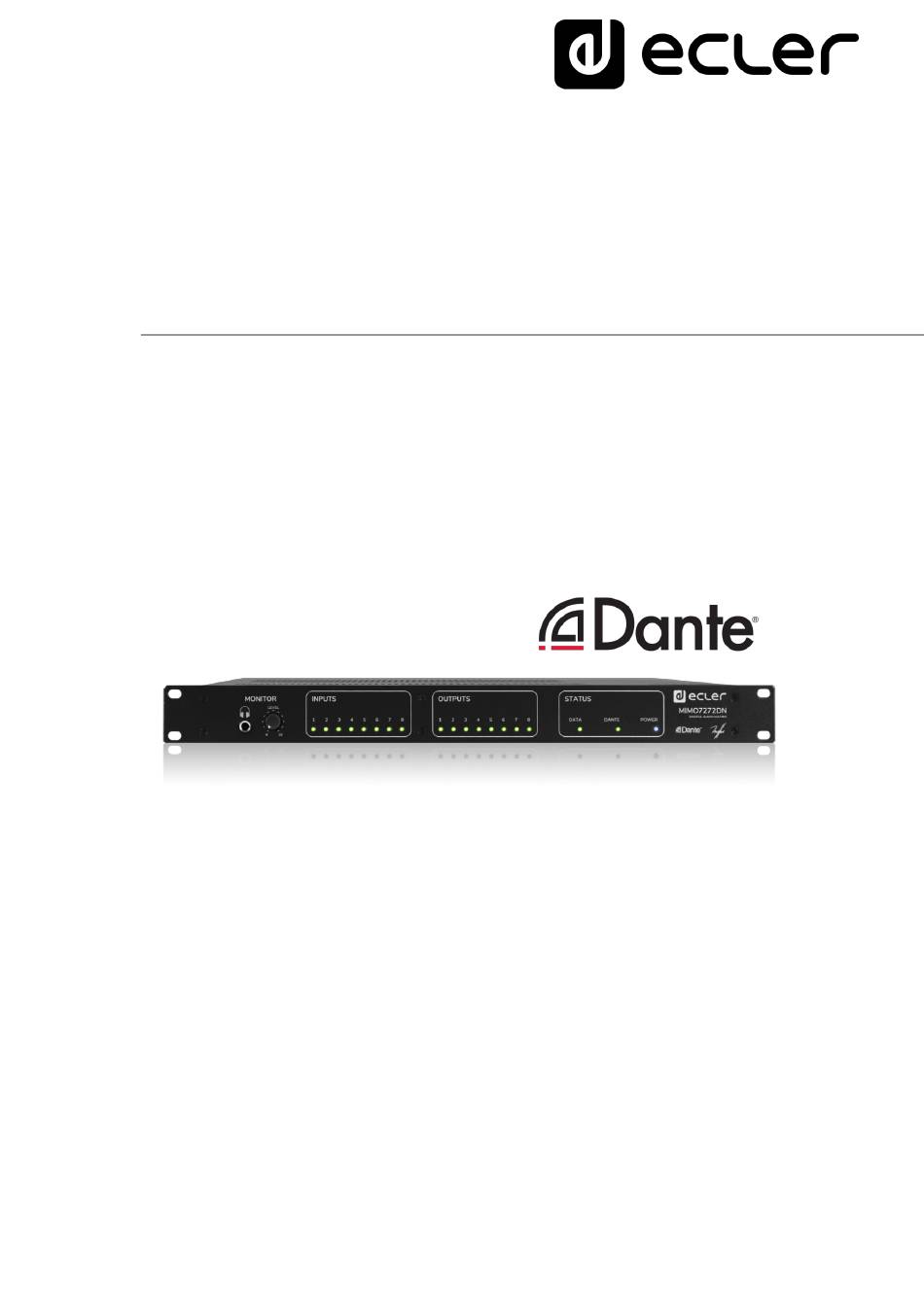

- Page 1 MIMO7272DN DIGITAL MATRIX Digital Matrix with Dante™ Interface USER MANUAL v.20210208...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 4.1. Main features ..........................5 INSTALLATION ........................7 5.1. Location, assembly and ventilation ..................7 5.2. Mains connection and power on.................... 7 5.3. Balanced analog audio inputs ....................8 5.4. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
MIMO7272DN comes with a 3 years warranty. INTRODUCTION MIMO7272DN is a 72x72 digital audio matrix (72 inputs and 72 outputs) for installation, fully programmable through the EclerNet Manager application Refer to the EclerNet Manager Application manual for more information. The EclerNet Manager application is available for download at www.ecler.com. - Page 6 Priorities (ducking) between input channels. o Virtual and physical paging consoles The programming of MIMO7272DN is done using the EclerNet Manager application Refer to the EclerNet Manager Application manual for more information. The EclerNet Manager application is available for download at www.ecler.com.
-
Page 7: Installation
5.2. Mains connection and power on MIMO7272DN operates on alternating voltages from 90 to 264V and 47 to 63 Hz. This device is equipped with an oversized power supply capable of adapting without any type of adjustment to the mains voltage of any country in the world. -
Page 8: Balanced Analog Audio Inputs
For UNbalanced connections, short-circuit the terminal - to earth. 5.4. Balanced analog audio outputs The rear panel of the MIMO7272DN has 8 analog signal outputs (OUT 1 to 8) and 2 additional "MONITOR" monitoring outputs, balanced and with line level. -
Page 9: Digital Audio Inputs And Outputs Over Ip Dante
MIMO7272DN features two ports with RJ45 interface in its rear panel that allow the sending and reception of digital audio Dante™, labelled as primary (PRIMARY) and secondary (SECONDARY). MIMO7272DN can work with these ports in two possible modes: •... - Page 10 Switched mode: in this mode, only a single network connection is actually enabled (and therefore only one IP address exists), with the primary and secondary ports behaving as ports of a network switch integrated within MIMO7272DN, to which devices forming part of the system's Dante™ network, or Ethernet switches forming part of that network's infrastructure, can be directly connected.
-
Page 11: Programming And Control Ethernet Port
• Management from the EclerNet Manager application, by direct connection (CAT5 cable or higher) of a computer with a MIMO7272DN unit or using an Ethernet network as a link between both. Refer to the EclerNet Manager Application manual for more information. -
Page 12: Remote Control Gpi Ports
5.8. Remote control GPI ports The MIMO7272DN rear panel has 8 GPI inputs for direct voltage control, 0 to 12 VDC. Each of these inputs can be connected to an external physical device (a potentiometer, a contact closure, a variable 0-12V DC voltage, etc.) and associated with a MIMO7272DN function, for example: •... -
Page 13: Remote Control Gpo Ports
5.9. Remote control GPO ports MIMO7272DN has on its rear panel 8 relay outputs NO / NC (normally open / normally closed). Each of these outputs can have its status change associated with a trip by means of a specific function programmed through EclerNet Manager, such as a calendar event or the pressing of a key available on a UCP control panel. -
Page 14: Package Contents
/ noise ratio as well, so when this signal reaches the output channels and is amplified, it will have a better ratio than in the previous case. PACKAGE CONTENTS • MIMO7272DN AC power cables • • Euroblock aerial connectors for analog inputs and outputs and GPIO ports •... -
Page 15: Function Diagram
FUNCTION DIAGRAM... -
Page 16: Blocks Diagram
BLOCKS DIAGRAM... -
Page 17: Technical Features
TECHNICAL FEATURES MIMO7272DN Quad core 64bits 1GHz Sampling rate 48 kHz Latency analog IN to analog OUT <4.3 ms. Converters Resolution 24 bit Dynamic range AD:110dB, DA: 115dB Analogue 8 Input / Output Terminal block (Symmetrical) 2 monitor output Terminal block (Symmetrical) Headphones connector Jack ¼... - Page 18 Processing Input level (x40) Range: from Off to 0 dB Mute: Yes Signal Polarity reverse: Yes Metering: VU+clip pre & post fader Output level (x40) Range: from Off to 0 dB Mute: Yes Solo: Yes Signal Polarity reverse: Yes Metering: VU+clip pre & post fader Output gain (x40) Range: from 0 to +6 dB Input delay (x40)
- Page 19 Mix Matrix Size: 72x72 Analogue in/out 8x8 Dante/AES67 network in/out 32x32 Vol: Input, Output, Crosspoint Mute: Set/Clear individual, row, column, all Input /output Mono/stereo selector Meter: Input /output VU and clip Pager (x10) Input: IN1 to IN40 Priorities: 10 (1 max, 10 min) Depth: 0 dB to 80 dB Attack time: from 5 ms.
- Page 20 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
