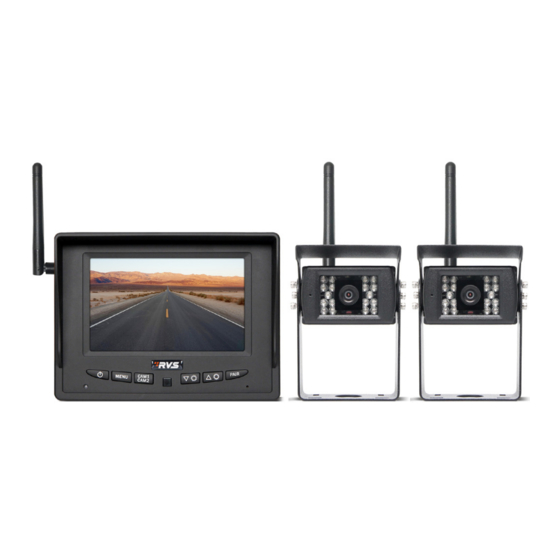

- Page 1 Instruction Manual SimpleSight™ Wireless Backup HD Camera System 5" Two-Channel Monitor RVS-255W-HD Reverse With Confidence ™...
-
Page 2: Table Of Contents
Introduction......Safety Information......04-06 Before Beginning Installation . -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. Improper installation will void manufacturer’s warranty. - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. - Page 8 Warning! 1. This monitor is high voltage. Only professionals should open the monitor's case. 2. Do not watch the video while driving unless you are monitoring the rear view camera display. System Operation Press "POWER ON" to turn monitor on. Press "MENU" to access main menu.
-
Page 9: Monitor Dimensions
Monitor Dimensions Reverse With Confidence ™... -
Page 10: Connection Options
Connection Options Rear View Safety... -
Page 11: Camera Dimensions
Camera Dimensions Note: Certain models include bracket for a pre-wired Furrion mount. Reverse With Confidence ™... -
Page 12: Monitor Specifications
Monitor Specifications Panel Size 5" LED Digital Panel Video System NTSC / PAL Auto Detection Resolution 800 X 3 (RGB) X 480 Brightness 650 cd/m Contrast Ratio 500:1 Screen Mode 16:9 Field of View Top 50°, Bottom 70°, L/R 70° Power Input DC10-32V Operating Temperature -20°C ~ +65°C... -
Page 13: Camera Specifications
Camera Specifications Image Sensor 1/3" Color Active Pixels 1292 x 968V Chief Ray Angle 9 degrees linear Night Vision Range About 5M Audio Input High sensitivity, -36DB microphone Waterproof Level IP69K Transmission Range 2.4G Wireless - 100' in open area Power Supply DC 10-36V Viewing Angle... -
Page 14: Warranty
ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. -
Page 15: Disclaimer
DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. - Page 16 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Engineered For Vehicle Safety. Rear View Safety...
