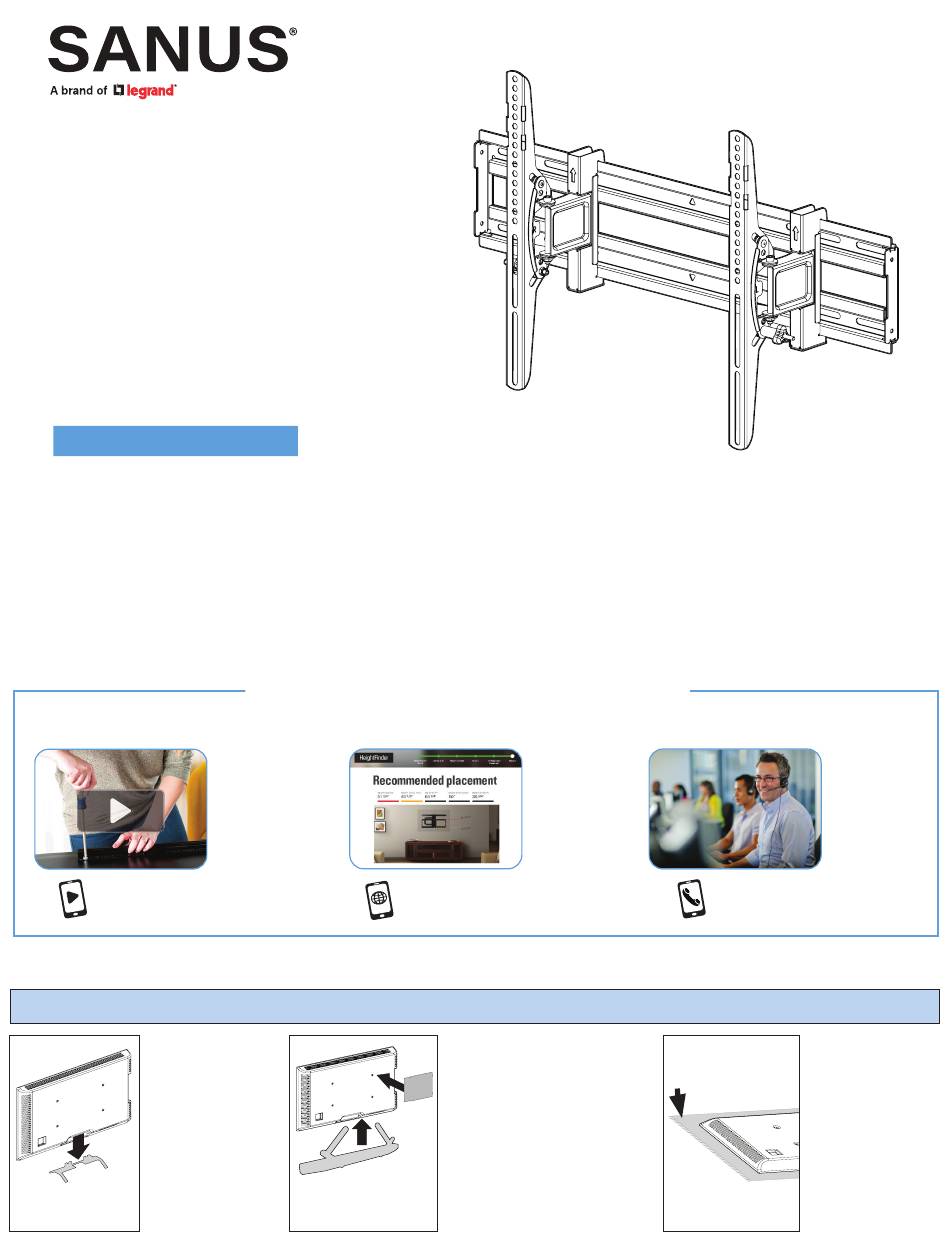

LLT 2
INSTRUCTION MANUAL
Para Español ver página 12
Watch it now at:
SAN.US/3084
BEFORE YOU BEGIN
Remove the
stand
from your TV —
if attached.
WE'RE HERE TO HELP
Want to watch a
video that shows
how easy this DIY
project will be?
Get it right the
first time.
HeightFinder™
shows you
where to drill.
Check it out at:
SANUS.com/2850
Install any accessories
you may have purchased, if they
requireTV removal prior to assembly.
Note that the TV is removable for
future accessory purchases.
Our US-based
install experts
are standing
by to help.
Call us at:
1-855-734-7805
Protect the face
of your TV when
laying it down for
installation.
Advertisement
Table of Contents
Related Manuals for LEGRAND SANUS LLT2
Summary of Contents for LEGRAND SANUS LLT2
- Page 1 LLT 2 INSTRUCTION MANUAL Para Español ver página 12 WE’RE HERE TO HELP Get it right the Want to watch a Our US-based first time. video that shows install experts HeightFinder™ how easy this DIY are standing shows you project will be? by to help.
-
Page 2: Wall Construction
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS CAUTION: Avoid potential personal injuries and property damage! ● This product is designed ONLY to be installed into wood studs, solid concrete* or concrete block*, and steel studs*, —... -
Page 3: Supplied Parts And Hardware
Dimensions TV INTERFACE NOTE: During operation, your TV shifts 3.9in 2.28 in. (58 mm) when retracted or extended. 100mm 23.6in MIN VESA 600mm To help fine-tune the placement of your TV, MAX VESA 3.94in the wall plate includes slotted holes and the 100mm TV brackets MIN VESA... - Page 4 Parts and Hardware for STEP 2 5/16 x 2 ¾ in. Lag Bolts (qty. 4) Lag Bolt Washer (qty. 4) Wall Plate Template 5/16 in. (qty. 1) Hardware for STEP 3 10-32 x 1 ¼ in. Wall Plate (qty. 1) Locking Screw (qty.
- Page 5 STEP 1 Attach TV Bracket to TV 1.2 Select TV Screw Length and Spacers 1.1 Select TV Screw Diameter Only one screw size fits your TV. NO SPACER SPACER NEEDED • Flat Back TV • Flat Back TV • Rounded or with Irregular Back TV Extra Space Needed...
-
Page 6: Wood Stud Installation
Wood Stud Installation STEP 2A Attach Wall Plate CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●... - Page 7 Solid Concrete or Concrete Block Installation STEP 2B Attach Wall Plate CAUTION: Avoid potential personal injury or property damage! ● Mount wall plate directly onto concrete surface (no wall covering) Concrete Install Kit #CMK1 is not included ● Minimum solid concrete thickness: 8 in. (203 mm) (see page 4) Contact Customer Service ●...
-
Page 8: Steel Stud Installation
STEP 2C Attach Wall Plate Steel Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Studs must be at least 2x4 in. / 25 ga. ● If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount ●... - Page 9 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. CAUTION: Avoid potential personal injury! TV brackets contain potential pinch points during operation. Keep fingers away from pinch points when retracting the TV. (arrows) NOTE: The TV brackets (TV) can be positioned anywhere along the wall plate to counteract the 2.28 in.
-
Page 10: Manage Cables
Manage Cables Move your TV to various positions, CAUTION: as needed to attach your cables, Avoid potential personal injury! then adjust the TV as desired. The TV brackets contain potential pinch points during operation. Keep fingers away from pinch points when retracting the TV. -
Page 11: Removing The Tv
LATERAL SHIFT HEAVY! You may need assistance with this step. Remove your TV BEFORE shifting side-to-side: Determine where on the wallplate you want to position your TV. Rehang your TV on the wallplate by following STEP 3 on PAGE 9. REMOVING THE TV HEAVY! You may need assistance with this step. -
Page 12: Instrucciones Importantes De Seguridad
INSTRUCCIONES IMPORTANTES DE SEGURIDAD ESPAÑOL - LEA TODO ESTE MANUAL ANTES DE UTILIZAR ESTE PRODUCTO - GUARDE ESTAS INSTRUCCIONES Revise estas instrucciones para estar seguro de sentirse cómodo con este sencillo proceso de instalación. Consulte además el manual del usuario de su televisor para ver si existe algún requisito especial para montar su televisor en la pared. Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, el montaje o el uso del producto, póngase en contacto con el Servicio de Atención al Cliente al 1-855-734-7805. - Page 13 ESPAÑOL PASO 1 Fijar el soporte al televisor ver página 5 1,1 Seleccione el diámetro de los tornillos VER PÁGINA 5 Solo un tamaño de tornillo es compatible con su TV. 1,2 Seleccione el largo de los tornillos VER PÁGINA 5 SIN ESPACIADOR CON ESPACIADOR •...
- Page 14 ESPAÑOL PASO 2B Fijar la placa de pared Instalación en hormigón macizo o bloque de hormigón VER PÁGINA 7 Kit de anclaje para paredes con hormigón macizo o bloque de hormigón #CMK1 (no incluido) - Póngase en contacto con el Servicio de Atención al Cliente en el 1-855-734-7805 para que le envíen estas herramientas adicionales directamente a su hogar.
- Page 15 ESPAÑOL PASO 3 Colgar el televisor en la placa de pared ver página 9 ¡PRODUCTO PESADO! Podría necesitar ayuda para realizar esta operación. PRECAUCIÓN: Evite posibles lesiones físicas y daños materiales. Los soportes del televisor pueden contener puntos de compresión durante la operación. Mantenga los dedos alejados de los puntos de compresión al retraer el televisor.
- Page 16 Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein.
