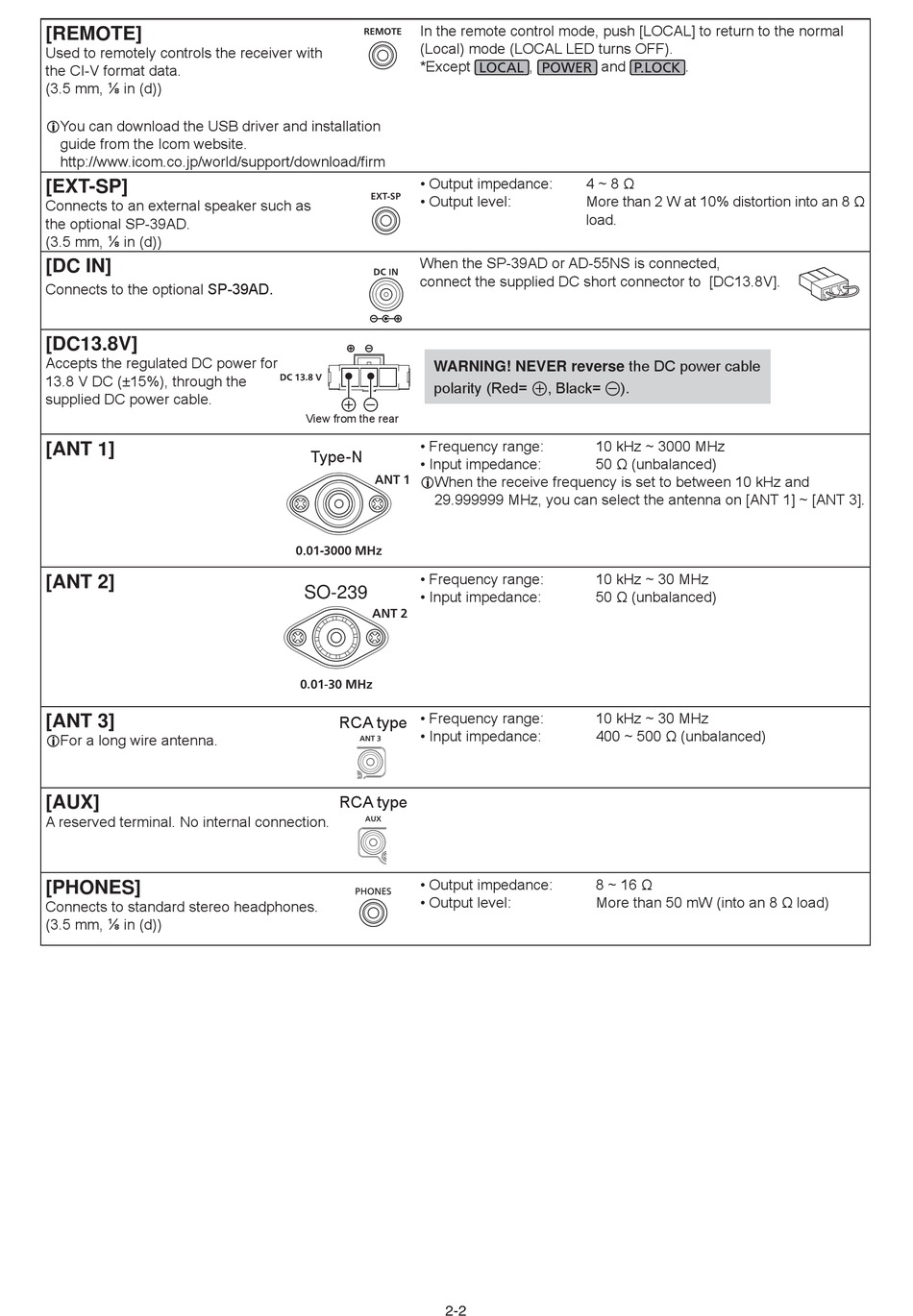

Icom IC-R8600 Service Manual page 7

[REMOTE]
Used to remotely controls the receiver with
the CI-V format data.
(3.5 mm, ⅛ in (d))
 You can download the USB driver and installation
guide from the Icom website.
http://www.icom.co.jp/world/support/download/fi rm
[EXT-SP]
Connects to an external speaker such as
the optional SP-39AD.
(3.5 mm, ⅛ in (d))
[DC IN]
Connects to the optional SP-39AD.
[DC13.8V]
Accepts the regulated DC power for
13.8 V DC (±15%), through the
supplied DC power cable.
[ANT 1]
[ANT 2]
[ANT 3]
For a long wire antenna.
[AUX]
A reserved terminal. No internal connection.
[PHONES]
Connects to standard stereo headphones.
(3.5 mm, ⅛ in (d))
In the remote control mode, push [LOCAL] to return to the normal
(Local) mode (LOCAL LED turns OFF).
*Except
• Output impedance:
• Output level:
When the SP-39AD or AD-55NS is connected,
connect the supplied DC short connector to [DC13.8V].
WARNING! NEVER reverse the DC power cable
polarity (Red=
View from the rear
• Frequency range:
Type-N
• Input impedance:
 When the receive frequency is set to between 10 kHz and
29.999999 MHz, you can select the antenna on [ANT 1] ~ [ANT 3].
• Frequency range:
SO-239
• Input impedance:
• Frequency range:
RCA type
• Input impedance:
RCA type
• Output impedance:
• Output level:
2-2
, and .
4 ~ 8 Ω
More than 2 W at 10% distortion into an 8 Ω
load.
, Black= ).
10 kHz ~ 3000 MHz
50 Ω (unbalanced)
10 kHz ~ 30 MHz
50 Ω (unbalanced)
10 kHz ~ 30 MHz
400 ~ 500 Ω (unbalanced)
8 ~ 16 Ω
More than 50 mW (into an 8 Ω load)
