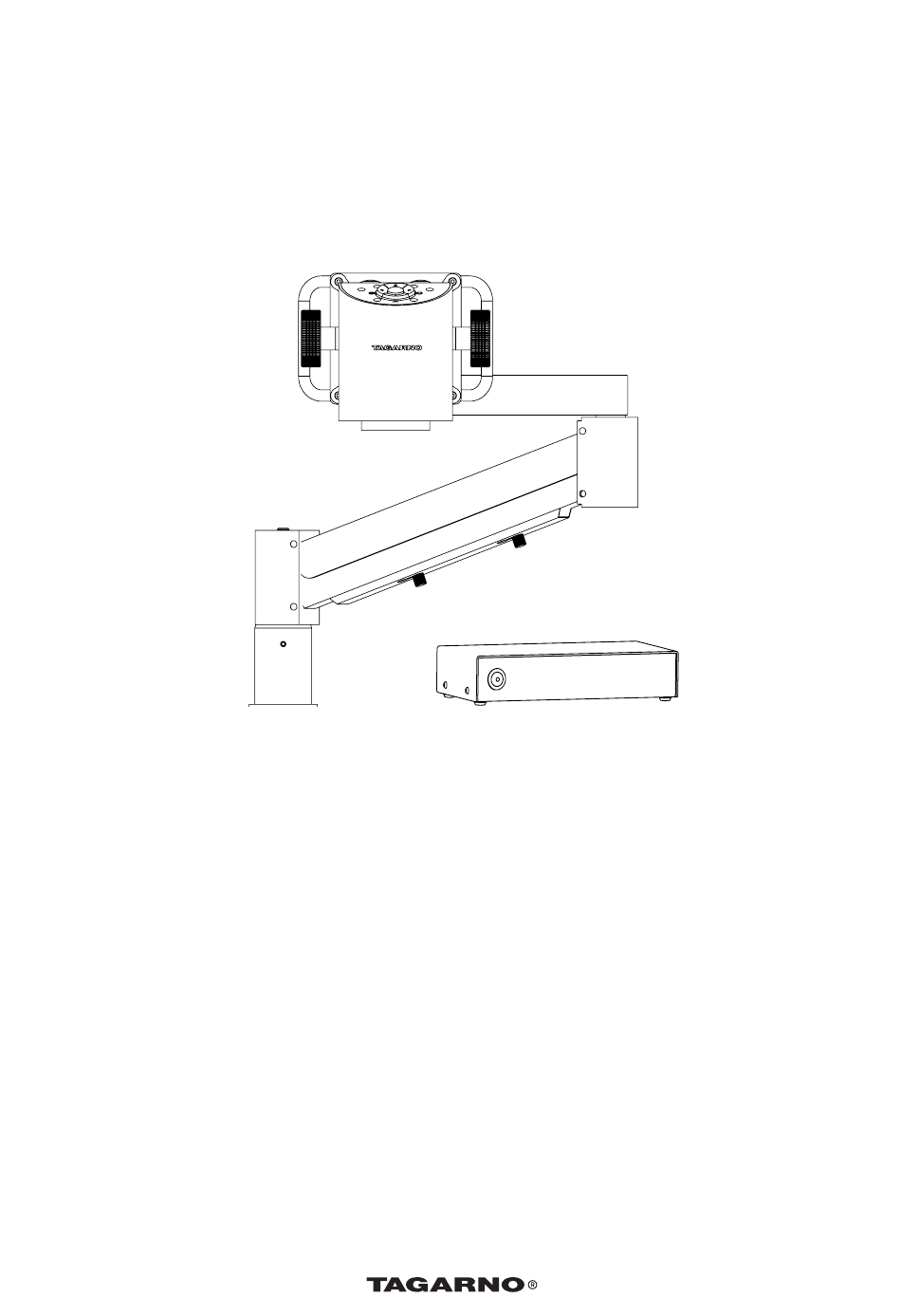

MANUAL | TAGARNO MOVE
VERSION: 1.4.1 | FIRMWARE 7.60 | 2023-01-01
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
2
13.
2
14.
2
15.
3
16.
5
17.
8
18.
10
19.
11
20.
16
21.
23
26
27
31
32
36
36
36
36
37
38
39
1

Advertisement

Table of Contents
loading

Related Manuals for tagarno MOVE

Summary of Contents for tagarno MOVE

  • Page 1: Table Of Contents

    INTENDED USE SYSTEM UPDATE WARNINGS LICENSE ACTIVATION LASER POINTER WARNING TECHNICAL SPECIFICATIONS YOU HAVE RECEIVED MAINTENANCE ASSEMBLING - MOVE WARRANTY ASSEMBLING - MOVE UPGRADE KIT LICENSE AGREEMENT CONNECTING ERGONOMICAL RECOMMENDATIONS OPERATION LABELS SETUP MENU DECLARATION OF CONFORMITY STANDARD APPS COMPLIANCE STATEMENTS...

  • Page 2: Intended Use

    Do not dismantle any parts of the product, except where noted in the manual Never disassemble or clean internal optical surfaces 10. Use only the power supply provided from TAGARNO 11. Always turn off the system before unplugging, when possible 3.

  • Page 3: You Have Received

    4. YOU HAVE RECEIVED DELIVERY (1/2) Please note that the content of your delivery will vary depending on whether you have purchased a complete MOVE microscope or a MOVE Upgrade kit to an existing ZAP microscope. RECEIVED WHEN PURCHASING MOVE AS A COMPLETE MICROSCOPE...
  • Page 4 DELIVERY (2/2) RECEIVED WHEN PURCHASING A MOVE UPGRADE KIT Smart guide XPLUS FHD control box Power box Power supply for Power Height adjustment wheels HDMI - HDMI cable Hex keys USB memory stick...

  • Page 5: Assembling - Move

    5. ASSEMBLING - MOVE NB: If you are purchasing a MOVE Upgrade kit for an existing ZAP, we refer to the next section. ASSEMBLING | MOVE (1/3) Mount the height adjustment wheels to the camera head with two Mount the table mount using the table clamp. Assemble the of the four provided screws.
  • Page 6 ASSEMBLING | MOVE (2/3) Assemble the flex arm by slotting the two arms together. Press the cables into place in the slot on the flex arm and secure them by screwing the cable holder into place on top. To increase stability, adjust the flex arm weight with the Tighten the 3 pinol screws to remove slack.
  • Page 7 ASSEMBLING | MOVE (3/3) Then, use the included finger screw to lock vertical movement. For extra stability in locked positions, remove the rubber covering on the side of the flex arm. IMPORTANT U.S. only information: Laser beam attenuator mounted. Unmount lens protection cap when using this microscope.

  • Page 8: Assembling - Move Upgrade Kit

    6. ASSEMBLING - MOVE UPGRADE KIT ASSEMBLING | MOVE UPGRADE KIT (1/2) Release the cables from the flexarm by unscrewing the cable Disassemble the flexarm by pulling the two arms apart. holder. Unmount the microscope from the flexarm by unscrewing the four Unmount the camera head from the vesa bracket by unscreweing screws on the back of flexarm head.
  • Page 9 ASSEMBLING | MOVE UPGRADE KIT (2/2) Mount the height adjustment wheels to the camera head with two Mount the microscope to the top of the flex arm using the vesa of the four provided screws. Then, adjust the position of the height bracket, screws and handles.

  • Page 10: Connecting

    Connect cable from camera head to (any) power box USB 3.0 output Control box XKEY cable (obsolete) Cable length = 2.800mm. Obsolete when using the MOVE (dedicated for TAGARNO ZAP) Cable length = 3.030mm. Ethernet cable Connect cable from power box...

  • Page 11: Operation

    8. OPERATION OPERATION (1/5) Place the camera arm in the appropriate height according to the Rotate the camera sideways or up and down to secure the best lens you are using. view of your sample. Camera can be angled +/- 180 degrees in all directions.
  • Page 12 These settings will also be activated in Auto exposure mode. Control box XPLUS for TAGARNO functions. Otherwise, exposure compensation is the only setting Do only connect equipment distributed by TAGARNO. visible. Iris, gain and exposure time will automatically be adjusted to recommended settings and cannot be adjusted in this mode.
  • Page 13 NB! Never look directly into the laser pointer. The laser Menu). pointer can only be used with lenses +3, +4 and +5. If you are using another TAGARNO unit than TAGARNO TREND, a window on the screen will provide you with information.
  • Page 14 In the popup window select the MOVE/FRONT option Push this button on the control box to adjust focus if you - use the arrow keys and center button on the XPLUS wish to focus on something very close.
  • Page 15 Open menu and navigate menu (arrows) Use the up and down arrows to open the microscope menu. These arrow can also be used to move up and down the menu. Use the right and left arrows to choose between the different settings in the microscope menu.

  • Page 16: Setup Menu

    9. SETUP MENU SETUP MENU (1/7) The setup menu in your TAGARNO FHD microscope provides you 1. White balance calibration with 2 entrances to setup your microscope exactly as you like it. Perform an automatic white balance adjustment in order to get colors displayed correctly on screen.
  • Page 17 NB! When using an attached scanner to name captured images on the 11. White balance calibration at LED light change TAGARNO FHD microscopes we advise that the scanner is connected Switch on if you want an automatic white balance calibration to be directly to one of the two USB ports on the microscope.
  • Page 18 SETUP MENU (3/7) 2. GENERAL SETTINGS 4. Auto capture mode To automatically capture images at a certain interval, activate the auto image capture mode. 5. Auto interval Set the function to automatically capture images at a certain interval. Intervals start from 2 seconds and up. Start/stop the interval capturing by pressing the image button on the control box.
  • Page 19 This allows you to test the apps for free for a period of 30 days. images. You can see the state of the Trial license in the System Information of If you have a MOVE or FRONT system, please see the `MOVE and the microscope. FRONT only points below the point ´Date`.
  • Page 20 Access files stored on the microscope or a connected USB memory The app enables you to compare a sample or live image to a reference stick directly on the microscope. Rename, search, copy, move (from image in various ways. folder to folder or from USB memory stick to internal storage and vice versa) and delete files, all without using a computer.
  • Page 21 3. Format USB storage This TAGARNO device is designed to only support USB storages with a FAT32 formatted file system. If your USB storage does not currently have this file system, use this function to format the USB storage. A second pop-up will ask you to confirm your selection.
  • Page 22 6. OFF 1. Power off Turn the TAGARNO microscope off. Menu options, layout and messages might slightly vary from one version of this microscope to another. Please contact your TAGARNO distributor if you have any questions regarding your TAGARNO microscope.

  • Page 23: Standard Apps

    10. STANDARD APPS STANDARD APPS | FOCUS STACKING (1/3) With Focus stacking, you can stack images with different focuses on 8. Exit top of each other to create one ultra-sharp image. Close application. NB: Long pressing the center key on the control box will close the Focus stacking application or cancel an ongoing focus stacking.
  • Page 24 Perform a linear calibration of the Ruler app using printable When used as an application shortcut via the XPLUS control box, TAGARNO calibration rulers if the mounted lens is not available in the the Ruler is switched on and off, based on its last setting.
  • Page 25 STANDARD APPS | WATERMARK (3/3) With Watermark, your saved images will have an info field containing 5. Import a custom watermark specifications from the time of use (time stamp, horizontal field of At this stage, you are able to import a custom watermark by inserting view, microscope model and serial number) and/or a custom defined a USB memory stick into the microscope containing a watermark file.

  • Page 26: Access Saved Filed

    File share mode in the microscope setup menu. Access files with Windows operation system: • Open the File Explorer and type: \\tagarno-snxxxxx Access files on USB memory stick via computer Unplug the USB memory stick from the microscope and insert it in a Access files with mac operation system: computer to access photos saved on the USB memory stick.

  • Page 27: System Update

    This is a step by step guide to perform a system update on your Step 2: Perform installation TAGARNO. Screen dialogues will now guide you through the update process. A system update can either be performed online or with a USB memory stick.
  • Page 28 Locate and access the installation file(s) via this link: If you have trouble performing a system update, please contact the www.tagarno.com/firmware-download TAGARNO distributor from which you have purchased the product or send an e-mail to support@tagarno.com. Download the installation file(s) to a USB memory stick...
  • Page 29 SYSTEM UPDATE (3/4) Step 2: Plug in the USB memory stick Step 4: Perform installation Plug the USB memory stick into one of the USB inputs at the Screen dialogues will now guide you through the update process back of the microscope or the Power box, depending on the microscope model.
  • Page 30 Please see the user manual for further information regarding the use of TAGARNO applications. If you have trouble performing a system update, please contact the TAGARNO distributor from which you have purchased the product or send an e-mail to support@tagarno.com.

  • Page 31: License Activation

    13. LICENSE ACTIVATION STEP 3: START ACTIVATION After purchasing a TAGARNO application, you need to activate it with a unique license key file. The activation process is initiated in the Setup menu - Info - To activate a license key on your TAGARNO microscope, follow the...

  • Page 32: Technical Specifications

    D: 680mm / 26.8’’ Finlandsvej 2, This drawing and all information on this drawing is confidanti TAGARNO AS. Neither this drawing nor any part of it must be 8700 Horsens. third party without written permission by TAGARNO AS. This d Weight (incl.
  • Page 33 TECHNICAL SPECIFICATIONS (2/4) Dimensions H: 44 mm / 1.7’’ D: 104 mm / 4.1’’ W: 214 mm / 8.4’’ Weight 1 kg / 2.2 lbs Power requirements Line voltage 100 - 240V ± 10% Line frequency 50/60Hz AC current consumption (typ.) 100mA/100V 45mA/240V DC current consumption (typ.) 800mA/12V...
  • Page 34 Type Connect to Specification Power supply (DC) DC Jack Power socket Input: 12V 800mA Use only the power supply provided by TAGARNO: Brand/Model: Mean Well/GSM40A12 Protection class I Overvoltage category ll Input: 100-240V 1.0-0.5A, 50/60Hz Output: 12V 3.34A Max * Control box or foot...
  • Page 35 Signal format FHD 1920x1080 ACCESSORIES Lens +3, +4, +5, and +10 Backlight kit Circular tilting table Magnetic lens ring TAGARNO Ring light White XY table Foot switch TAGARNO Ring light IR Glass table FHD monitors per request TAGARNO Ring light UV...

  • Page 36: Maintenance

    Remember to disconnect all elements if you intend to move the product. • If you move the product from a cold to a hot room, you must wait at least an hour before you turn it on to avoid short circuits due to condensation.

  • Page 37: Labels

    TAGARNO A/S - Finlandsvej 2, DK-8700 Horsens, Denmark. YYYY-MM-DD Values marked with X varies from product to product and are replaced by specific numbers and letters. TAGARNO MOVE and FRONT digital microscopes sold in the US are also marked with the following FDA label:...

  • Page 38: Declaration Of Conformity

    COUNTRY Denmark PHONE +45 76251111 DESCRIPTION TAGARNO A/S hereby declares that the product listed above, consisting of a camera unit, a Power box and 12V power supplies, complies with the following European directives: 2006/25/EU Artificial Optical Radiation 2014/30/EU Electromagnetic Compatibility...

  • Page 39: Compliance Statements

    21. COMPLIANCE STATEMENTS INDUSTRY CANADA COMPLIANCE STATEMENT CAN ICES-3 (B)/NMB-3(B) This Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le Matériel Brouilleur du Canada. FCC COMPLIANCE STATEMENT (UNITED STATES) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
