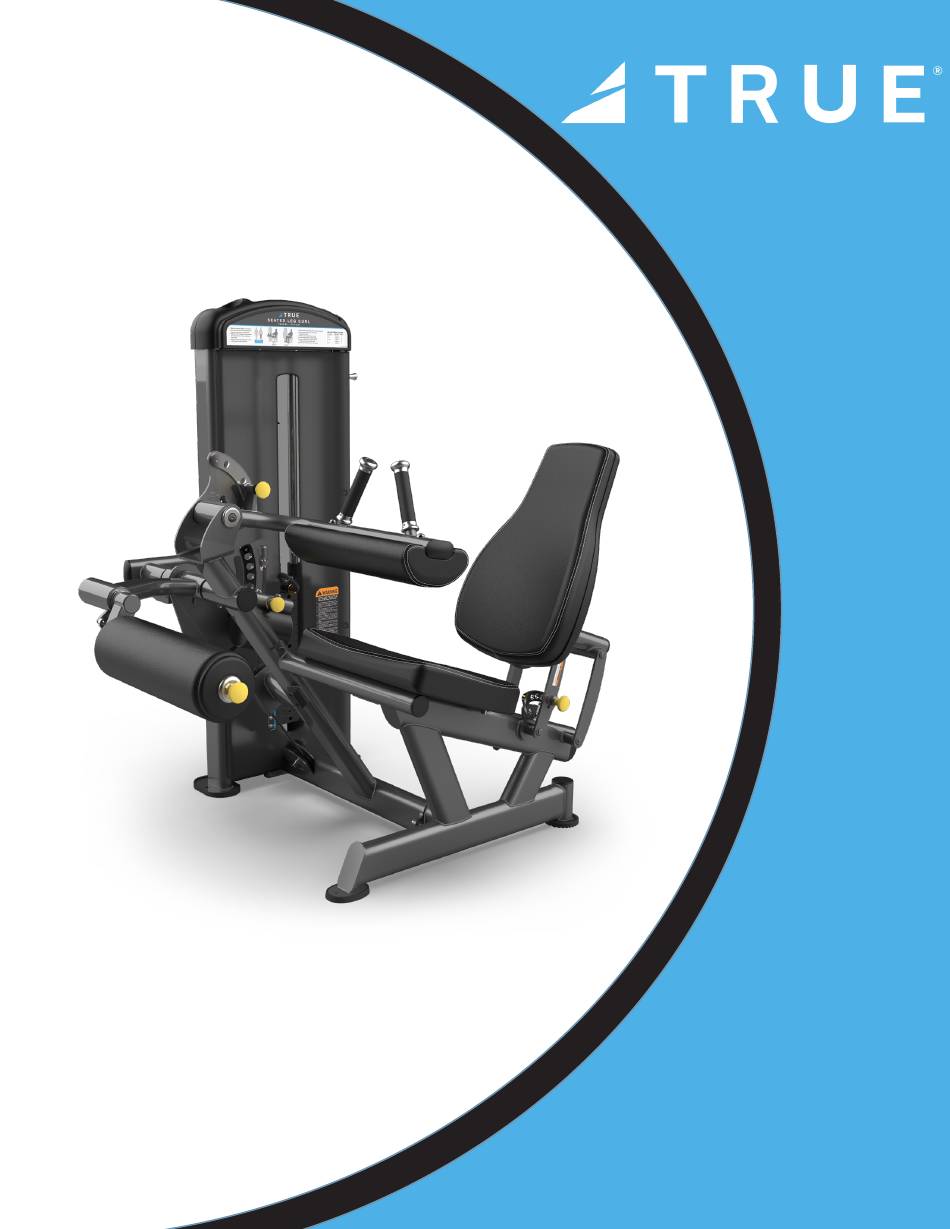

Fuse XL-0200
Leg Curl
OWNER'S
MANUAL
Model # FUSE XL-0200
Revision 021820

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fuse XL-0200 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fuse XL-0200

Summary of Contents for True Fuse XL-0200

  • Page 1 Fuse XL-0200 Leg Curl OWNER’S MANUAL Model # FUSE XL-0200 Revision 021820...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    CHAPTER 4: CUSTOMER SERVICE ..........................26 • CONTACTING SERVICE: ......................26 • CONTACTING SALES: .......................26 • REPORTING FREIGHT OR PARTS DAMAGE: ..............27 CHAPTER 5: ADDITIONAL INFORMATION: ......................30 Page # 4 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Chapter 1: Safety Instructions

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
  • Page 8 Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 36...

  • Page 9: Compliances

    LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 9 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 10: Chapter 2: Assembly Guide

    • For standard 170 lb. stack it is 48 lb/ft (234 kg/m2) • For optional 250 lb. stack it is 56 lb/ft2 (275 kg/m Page # 10 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 11: Required Tools

    (4) x 10 lb. weight plates • Optional 250 lb. stack: 15 lb. weight plate box Part Number: B1603 comprised of (4) x 15 lb. weight plates Page # 11 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 12: Pre-Assembly Checklist

    FUS-00MT001BK TOP CAP PAD manual. FUS-00TC004BK TOP CAP FUS-00TC002BK REAR TOP CAP TRXL2-07U500XBK UPRIGHT ASSY 9005BPD000XBK BACK PAD PAD-ST002-00XBK SEAT PAD TRPAD-AX001-00XBK THIGH PAD Page # 12 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 13 GAS SPRING, 280mm to 480mm, 250N TRXL2-02AX501 AXLE TRXL2-01AX001 AXLE (SHORT) 19 & 20 LBL-WS-FU170BK/250BK WT LABEL 170LB or 250LB 7XL2-0200HW FUSE 0200 HARDWARE PACK Page # 13 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 14: Assembly Steps

    Route the weight stack cable through TRXL2-02CBL00X CABLE the main frame before assembling. Note: Secure weight stack cable ends to ensure no tripping hazards until machine is fully assembled. Page # 14 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 15 WASHER, LOCK, 3/8” and upright assembly hardware until TRXL2-02MF780XBK SEAT CONNECTOR step 12 (Front Shroud). C-639 SH SCREW, 3/8"-16, 4-1/4" C-624 SH SCREW, 3/8"-16, 1-1/4" Page # 15 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 C-754C WASHER, FLAT, 3/8” hardware. C-749 WASHER, LOCK, 3/8” C-622 SH SCREW, 3/8”-16, 3/4” TRXL2-02MF790XBK AXLE SUPPORT TRXL2-02U500XBK UPRIGHT ASSY Page # 16 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 17 C-749 WASHER, LOCK, 3/8” C-623 SH SCREW, 3/8”-16, 1” TRXL2-02CM000XBK TRXL2-02PA700XBK PIVOT ARM TRXL2-02MF790XBK AXLE SUPPORT TRXL2-02AX501 AXLE TRXL2-02MF795 FLAT WASHER, 10.5MM*38MM*2MM FS-CAP-009 PLUG Page # 17 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 C-754C WASHER, FLAT, 3/8” C-749 WASHER, LOCK, 3/8” IT90121700 COUNTER WEIGHT C1009 BUTTON HEAD CAP SCREW M10*65 TRXL2-02PA700XBK PIVOT ARM ASSY Page # 18 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 TRXL2-02PA600XBK ANKLE PAD ARM ASSY the identified hardware. IN-S51102100 AXLE COVER (ALUMINUM CAP) C-657A FH SCREW, 3/8”-16, 3/4” TRXL2-02PA700XBK PIVOT ARM ASSY Page # 19 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 TRXL2-02MF800XBK CROSS BRACE TRXL2-02PA200XBK THIGH PAD ARM IN-S51102100 AXLE COVER (ALUMINUM CAP) C-657A FH SCREW, 3/8”-16, 3/4” TRXL2-01AX001 AXLE (SHORT) Page # 20 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 16 WT TOP PLATE Secure the guide rods to the upright C-417 HH SCREW, 1/4”-20, 2-1/2” assembly using the identified XL2-00PN00 SELECTOR PIN hardware. Page # 21 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 WASHER, LOCK, 3/8” make sure that the cable is seated in the C-766A LOCK NUT, 3/8”-16 pulley groove. C-626 SH SCREW, 3/8”-16, 1-3/4” TRXL2-02CBL00X CABLE Page # 22 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 480mm, 250N until step 10b (Gas Spring). TRXL2-01SF500XBK BACK PAD FRAME C-766A LOCK NUT, 3/8”-16 FUS-02CP002 AXLE COVER (ALUMINUM CAP) TRXL2-01SF611BK BRACE PLATE (SHORT) Page # 23 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 THIGH PAD ARM TRPAD-AX001-00XBK THIGH PAD C-680 BH SCREW, 3/8”-16, 2-1/4” C-631 SH SCREW, 3/8”-16, 3” C-628 SH SCREW, 3/8”-16, 2-1/4” C-624 SH SCREW, 3/8”-16, 1-1/4” Page # 24 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 FUS-00FS101XBK FRONT SHROUD upright assembly using the identified C-1003 M5x16 PHMS hardware. Note: Do not over tighten the screws securing the shroud in place. Page # 25 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 REAR SHROUD assembly using the identified hardware. C-1003 M5 x 16 PHMS FUS-00TC002BK REAR TOP CAP FUS-00TC001BK FRONT TOP CAP C-1004 M6 X 60 PHMS Page # 26 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 LBL-WS-FU250BK WT LABEL 250LB Note: Select the appropriate weight stack label based on your weight stack selection (standard 170 lbs. or optional 250 lbs.). Page # 27 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 28: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 29: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 30: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 31 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 31 of 36 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 32: Chapter 4: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 33: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.

  • Page 34: Chapter 5: Additional Information

    Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 35 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 36 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
