Hioki 9014 Instruction Manual

9014, 9017

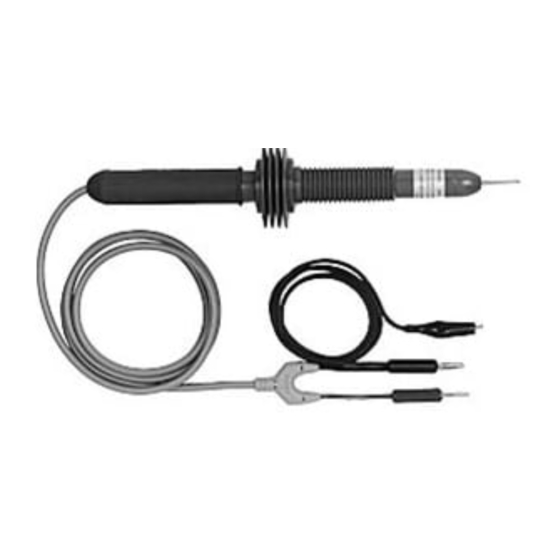

HIGH VOLTAGE PROBE
Instruction Manual
Apr. 2020 Revised edition 11
9014A980-11 20-04H
Overview
The High Voltage Probe allows you to measure high voltage by
using a tester with a lower-voltage (or current) range setting.
Since high voltage is not applied across the input terminals di-
rectly, insulation deterioration of the input terminals can be pre-
vented, keeping measurement errors to a minimum.
• The 9014 is suited for use with a measuring instrument that
has input resistance of 10 MΩ.
• The 9017 is for an analog tester, and is used in the specified
voltage range (3 VDC) of the tester. (up to 30 kVDC)
Inspection and Maintenance
Initial Inspection
When you receive the device, inspect it carefully to ensure that
no damage occurred during shipping. If damage is evident, or if
it fails to operate according to the specifications, contact your
authorized Hioki distributor or reseller.
This device is not designed for measuring large
capacity electric circuits.
Do not use it to measure power lines as doing so
might result in human or electric accidents.
Maintenance and Service
• To clean the device, wipe it gently with a soft cloth
moistened with water or mild detergent. Never use sol-
vents such as benzene, alcohol, acetone, ether,
ketones, thinners or gasoline, as they can deform and
discolor the case.
• If the device seems to be malfunctioning, check the test
leads for breaks before contacting your authorized
Hioki distributor or reseller.
• Pack the device so that it will not sustain damage
EN
during shipping, and include a description of existin
damage. We cannot accept responsibility for damag
incurred during shipping.
Safety
This manual contains information and warnings essential for
safe operation of the device and for maintaining it in safe oper-
ating condition. Before using it, be sure to carefully read the fol-
lowing safety precautions.
Safety Symbol
In the manual, the
important information that the user should read
before using the device.
The symbol printed on the device indicates that
the user should refer to a corresponding topic in the
manual (marked with the
the relevant function.
The following symbols in this manual indicate the relative impo
tance of cautions and warnings.
Indicates that incorrect operation presents an
extreme hazard that could result in serious injury
or death to the user.
Indicates that incorrect operation presents a sig-
nificant hazard that could result in serious injury
or death to the user.
Indicates that incorrect operation presents a pos-
sibility of injury to the user or damage to the
device.
Indicates advisory items related to performance
or correct operation of the device.
Usage Notes
Follow these precautions to ensure safe operation and to obtain
the full benefits of the various functions.
Use of the device should confirm not only to its specifications,
but also to the specifications of all accessories, options, and
other equipment in use.
Preliminary Checks
To ensure that the device is properly operating, conduct an in-
spection and check device operation before using device to en-
sure that no damage has occurred during storage or transport.
symbol indicates particularly
symbol) before using
HIOKI 9014A980-11
