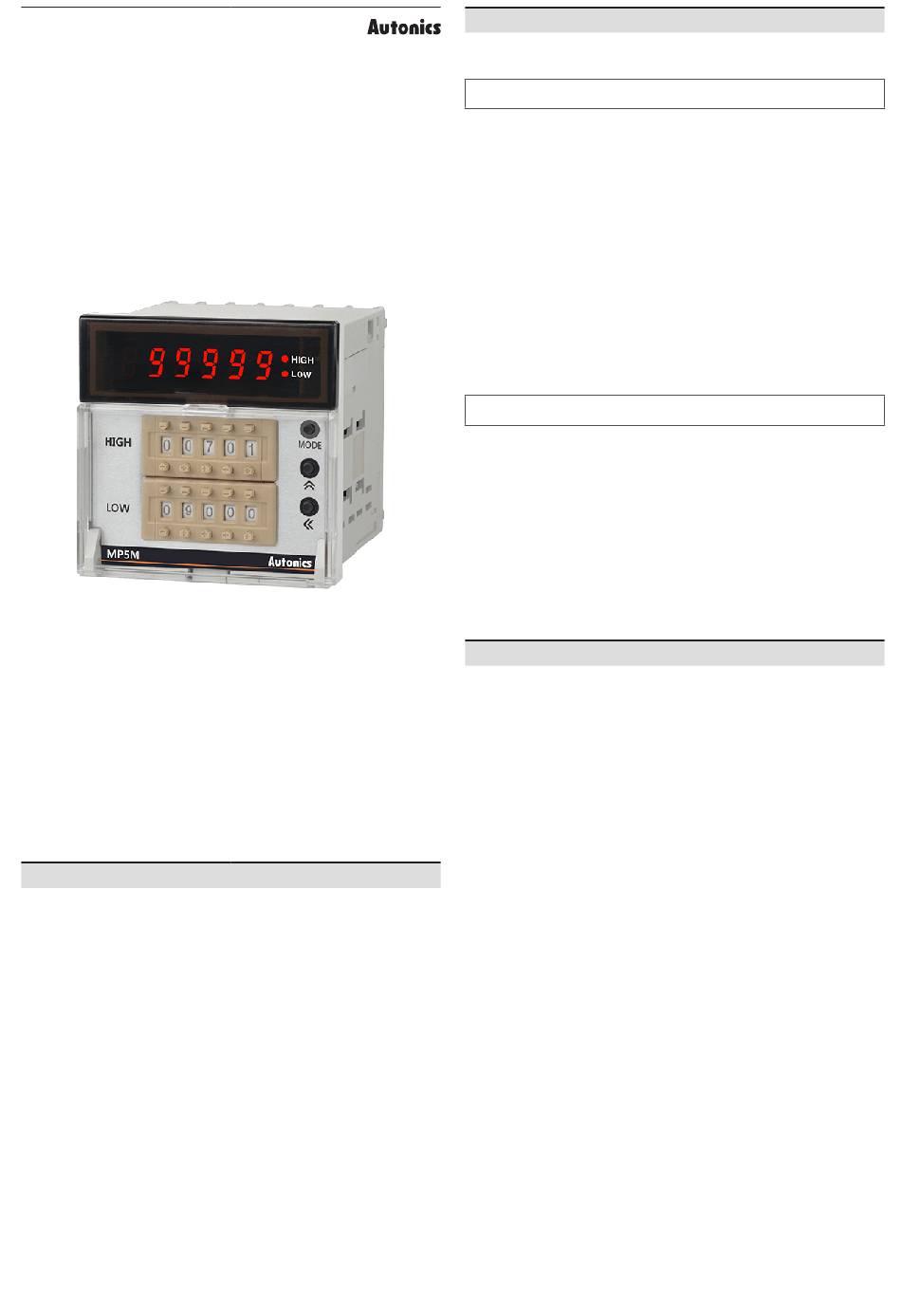

DRW160446AH

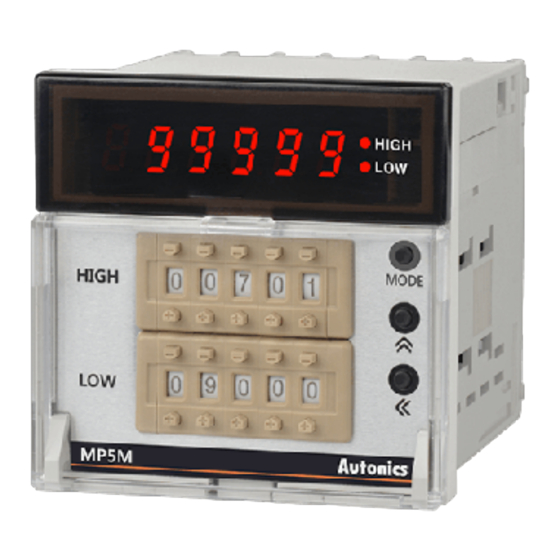

Thumbwheel Switch
Multi Pulse Meters
MP5M Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• 14 operation modes
- Frequency / revolutions / speed, passing speed, cycle, passing time, time interval
- Time differential, absolute ratio, density, length measurement 1 / 2, interval
- Accumulation, addition / subtraction (individual input),
addition / subtraction (phase difference input)
• Various output models
- Relay single (high-limit) / double (high / low-limit) + NPN open collector output
• Various functions
- Prescale, monitoring delay, hysteresis, auto-zero, parameter lock
• NPN input (non-contact / contact) or PNP input (non-contact / contact)
• Display range: -19999 to 99999
• Various display units
• Power supply
- 100 - 240 VACᜠ 50 / 60Hz (AC type)
- 24 VACᜠ 50 / 60 Hz, 24 - 48 VDCᜡ (AC / DC type)
ᜢ ᜧ ᜫ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on a device panel to use.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. When connecting the power / measurement input and relay output, use
AWG 24 (0.20 mm
) to AWG 15 (1.65 mm
2
screw with a tightening torque of 0.98 to 1.18 N m.
Use the wiring suitable for the load current capacity.
Failure to follow this instruction may result in fire or malfunction due to contact
failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
03. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
04. Keep the product away from metal chip, dust, and wire residue which from
flowing into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• Power supply should be insulated and limited voltage / current or Class 2, SELV power
supply device.
• Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
• Keep away from high voltage lines or power lines to prevent inductive noise. In case
installing power line and input signal line closely, use line filter or varistor at power line
and shielded wire at input signal line. Do not use near the equipment which generates
strong magnetic force or high frequency noise.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
) cable and tighten the terminal
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP5M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics MP5M Series

  • Page 1 • Keep away from high voltage lines or power lines to prevent inductive noise. In case installing power line and input signal line closely, use line filter or varistor at power line manual, other manuals and Autonics website. and shielded wire at input signal line. Do not use near the equipment which generates The specifications, dimensions, etc.
  • Page 2 01)  Standard duty ratio 1:1 02)  Operation mode F7, F8: ≤ 1 kHz (pulse width: ≥ 500 ㎲) • Unit: mm, For the detailed drawings, follow the Autonics website. 03)  The hysteresis setting range varies according to the decimal point setting position.
  • Page 3 -|Transparent Guide|- ■ Parameter 1 group Output Mode Display Parameter Display Default Setting range Output mode is available to set. condition The output modes supported by each model are different. Input P1-1 operation F1 F1 to F14 - Indicator : not support output mode, Relay single output model: S (Standard), MODE mode Relay double output model: total output modes...
  • Page 4 -|Transparent Guide|- Operation Mode ■ F5: time interval Displays measured time of input A ON. ■ F1: frequency / revolutions / speed • t: measured time of input A ON [sec] Time interval (T) Measures the frequency of input A and displays the calculated frequency, revolutions, and speed.
  • Page 5 -|Transparent Guide|- ■ F9: length measurement 1 ■ F13: addition / subtraction-phase difference input Measure and display the number of input A pulses during input B ON. When input A is Low, counting is added to the low of input B. When input A is Low, counting is subtracted from the high of input B.
  • Page 6 Set mantissa (X) as 1.5000, and exponent (Y) as 1 for prescale value (α)=15. The same display value can be obtained with α value set as X=0.1500, and Y=2 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-51-519-3232 | sales@autonics.com...

This manual is also suitable for:

Mp5m-n seriesMp5m-1 seriesMp5m-2 series
