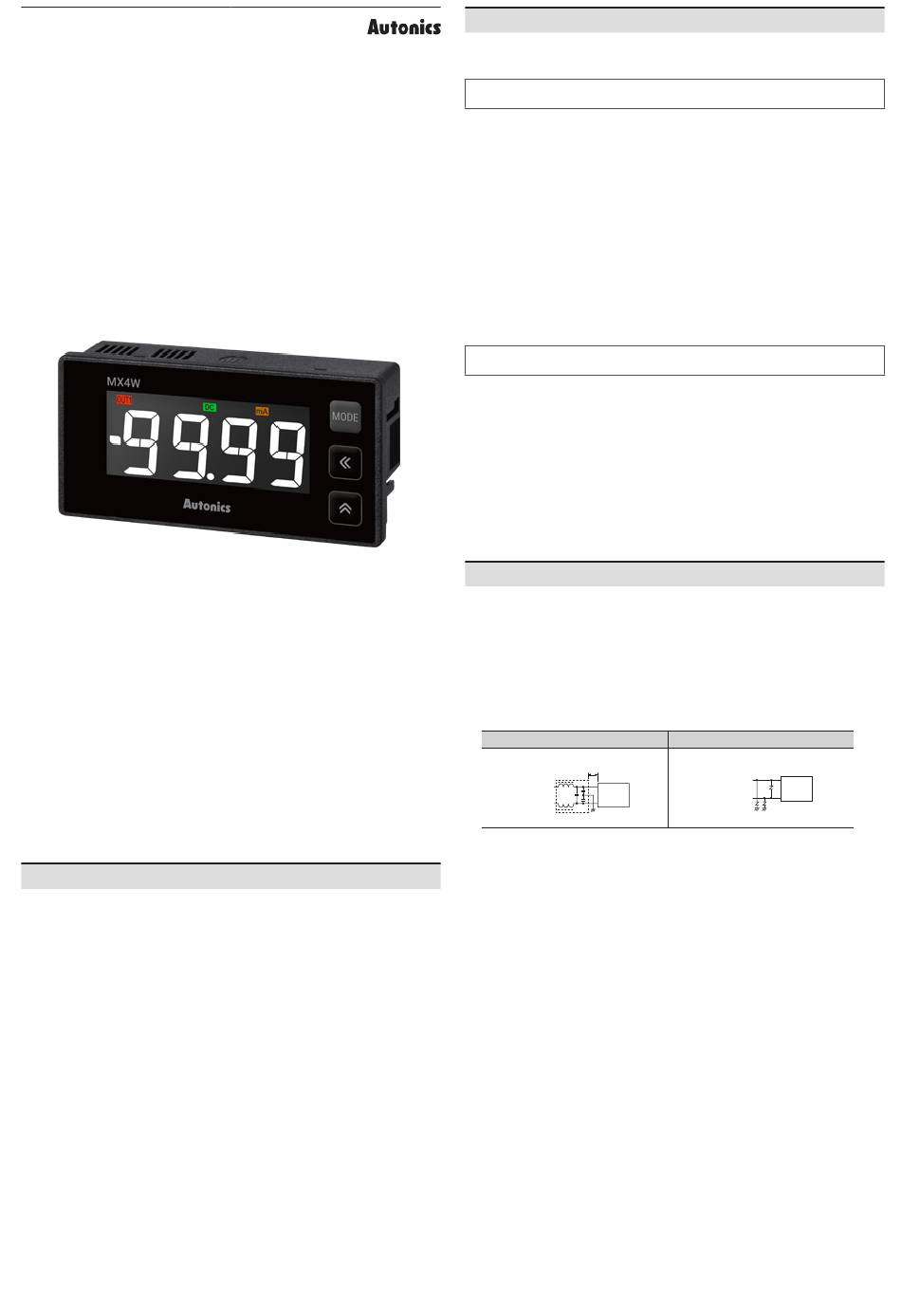

Autonics MX4W Series Product Manual

TCD210071AA
LCD Multi Panel Meters
MX4W Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.

Features

• LCD display with easy-to-read white PV characters
• Isolated input and power modules allow powering of multiple units using a single
power supply
• Compact, space-saving design (rear-length: 20 mm)
: reduced rear-length size by 80 % compared to same DIN size panel meters (MT4W)
• Various input options (by model)
- Input options: DC / AC voltage, DC / AC current
• Maximum allowed input: 500 VDCᜡ, 500 VACᜠ, DC 5 A, AC 5 A
• Display range: -9999 to 9999
• High / low-limit display scale function
• AC frequency measurement (range: 0.100 to 1200 Hz)
• Preset output: OUT1, OUT2 (NPN / PNP open collector output)
• Power factor display / output function
: displays analog outputs (1 - 5 V, 4 - 20 mA) from power factor converters as -0.50 to
1.00 to 0.50
• Various functions
: peak display value monitoring, display cycle delay, zero-point adjustment, peak
display value correction, etc.
• Power supply: 24 - 240 VACᜠ 50 / 60 Hz, 24 - 240 VDCᜡ universal
ᜢ ᜧ

Safety Considerations

• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on a device panel to use.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. When connecting the power / measurement input and relay output, use
AWG 24 (0.20 mm ) to AWG 15 (1.65 mm
2
terminal screw with a tightening torque of 0.78 to 0.98 N m.
Failure to follow this instruction may result in fire or malfunction due to contact
failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
03. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
04. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, It may cause unexpected accidents.
• Power supply should be insulated and limited voltage / current or Class 2, SELV power
supply device.
• Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
• Keep away from high voltage lines or power lines to prevent inductive noise.
In case installing power line and input signal line closely, use line filter or varistor at
power line and shielded wire at input signal line.
Do not use near the equipment which generates strong magnetic force or high
frequency noise.
Connection with the line filter
Install the line filter
close to the panel meter
Panel meter
HI
110 / 220 VACᜠ
LOW
Earth ground
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
) cable or over and tighten the
2
Connection with the varistor
Panel meter
HI
110 / 220 VACᜠ
LOW
