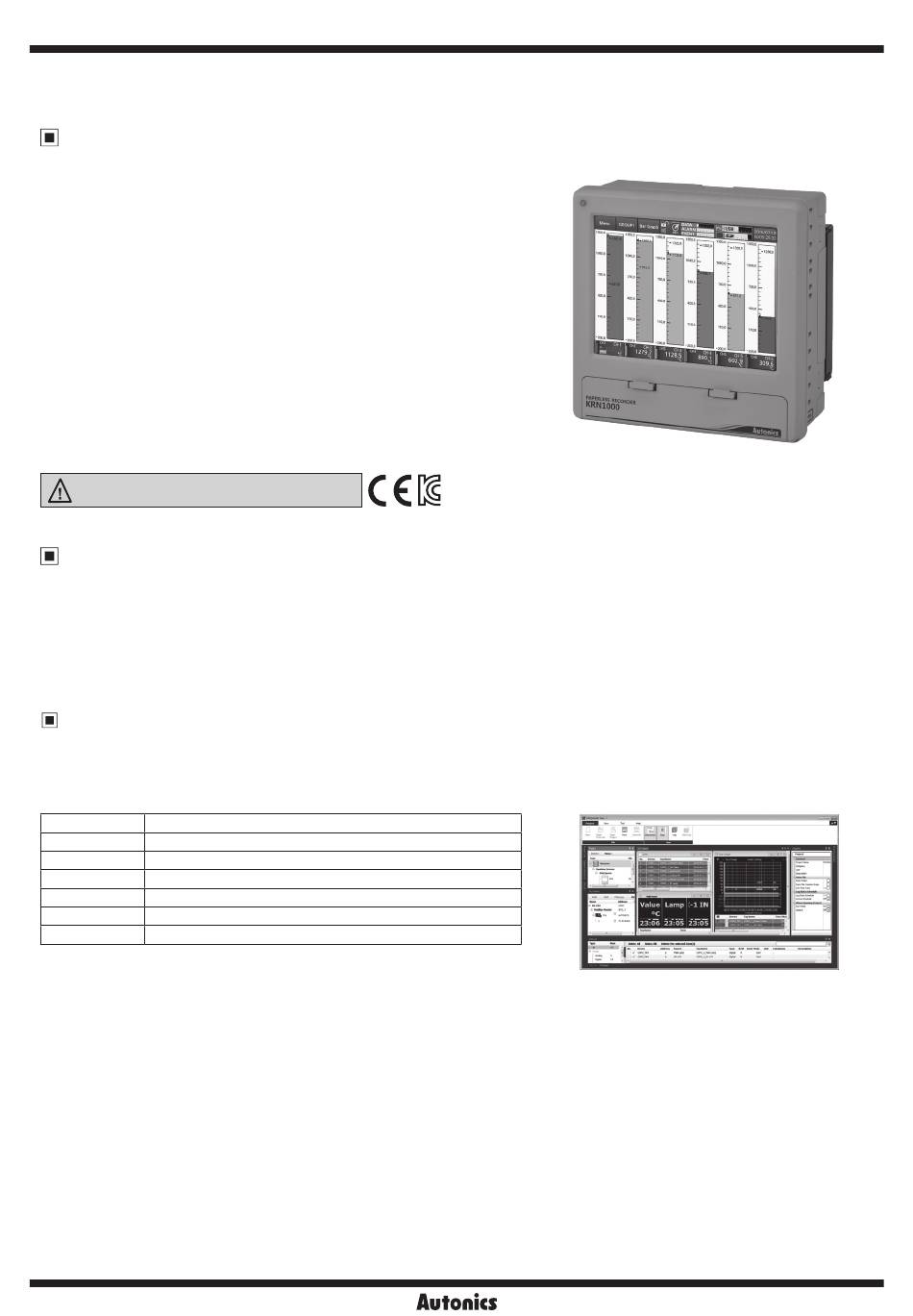

KRN1000 Series
LCD Touchscreen Paperless Recorder
Features
5.6-inch color TFT LCD (640×480) touchscreen display with
excellent readability and intuitive control interface
Supports 27 input types (thermocouple, RTD, analog voltage
and current[shunt])
4 / 8 / 12 / 16 input channel models available
Various communication methods (RS422/485, Ethernet, USB)
standard
25 to 250 ms high-speed sampling, 1 to 3600 s recording cycle
200 MB internal memory and external memory support
(SD/USB up to 32 GB)
Store and backup internal data to external memory (SD/USB)
9 different graph types available
Various option input/output available: digital input
(contact/non-contact), alarm output, transmitter power output
Compact, space-saving design (rear length: 69.2 mm)
Please read "Safety Considerations"
in the instruction manual before using.
Manuals
• For more information and instructions, refer to the user manual and the user manual for communication.
Visit our website (www.autonics.com) to download the manuals.
• The user manual includes product specifications, functions, and operations.
• The user manual for communication includes information about Modbus RTU protocol, Modbus TCP protocol, and
Modbus mapping table.
Comprehensive Device Management Program (DAQMaster)
● DAQMaster is comprehensive device management program for convenient management of parameters and multiple
device data monitoring.
● Visit our website (www.autonics.com) to download user manual and comprehensive device management program.
< Computer specification for using software >
Item
Minimum requirements
System
IBM PC compatible computer with Intel Pentium Ⅲ or above
Operations
Microsoft Windows 98/NT/XP/Vista/7/8/10
Memory
256MB+
Hard disk
1GB+ of available hard disk space
VGA
Resolution: 1024×768 or higher
Others
RS-232 serial port (9-pin), USB port
U-4
< DAQMaster screen >

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRN1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics KRN1000 Series

  • Page 1 ● DAQMaster is comprehensive device management program for convenient management of parameters and multiple device data monitoring. ● Visit our website (www.autonics.com) to download user manual and comprehensive device management program. < Computer specification for using software > < DAQMaster screen >...
  • Page 2: Ordering Information

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Ordering Information KRN1000 Case Standard panel installation type Power supply 100-240VAC 50/60Hz Communication output RS422/485+Ethernet+USB Device None Alarm relay output 8 channels Option input/output Alarm relay output 6 channels + Digital input 2 channels Alarm relay output 6 channels + 24VDC power output for transmitter Alarm relay output 4 channels + Digital input 2 channels...
  • Page 3 -|Transparent setting guide|- KRN1000 Series Input/Output Type Input/Output type Description JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (supplied current: approx. 190µA) Thermocouple B, C (W5), E, G, J, K, L, L (Russia), N, P, R, S, T, U Input type Voltage: ±60mV, ±200mV, ±2V, 1-5V, ±5V, -1V-10V Analog Current: 0-20mA, 4-20mA (measurable when using 250Ω...
  • Page 4: Input Type And Range

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Input Type and Range Input range Input type Display ℃ ℉ K(CA) TC-K -200.0 to 1350.0 -328.0 to 2462.0 73.2 to 1623.2 J(IC) TC-J -200.0 to 800.0 -328.0 to 1472.0 73.2 to 1073.2 E(CR) TC-E -200.0 to 800.0...
  • Page 5: Input/Output Circuit

    -|Transparent setting guide|- KRN1000 Series Connections KRN1000 Rear part ① Sensor input terminal: Connects universal input. ② Ethernet port : Connector for Ethernet cable. ⑤ It communicates Modbus TCP. ① ③ RS422/485 port : Connects RS422/485 for Modbus RTU comm.
  • Page 6: Unit Descriptions

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Dimensions (unit: mm) 11.5 69.2 Panel cut-out Min. 175 +1.0 Unit Descriptions ① ② ④ ③ ⑦ ⑤ ⑥ ⑧ ① Power indicator: Power turns ON and the red LED turns ON. ② Screen (touch panel): Measured value is displayed as trend graph, bar graph, digital figures. ③...
  • Page 7: Screen Description

    -|Transparent setting guide|- KRN1000 Series Screen Description Booting screen Run screen ① ① Status display part : Status display part appears at top screen. Touch each icon and it enters the menu. ② Measurement value display part ② : Displays the measured value of each channel as graph.
  • Page 8 -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Menu Touch the status display part at the upper screen and menu appears as right screen. Menu is as below. U-11...
  • Page 9: File History

    -|Transparent setting guide|- KRN1000 Series Functions Difference (deviation) It is available to set when input type is temperature sensor History (thermocouple, RTD). It displays the deviation of reference It checks data history which is recording at [Menu]- channel measuring value.
  • Page 10: Digital Input

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Functions Display Scale For analog input, this function is to set (-9999.9 to 9999.9) Reservation for particular high/low-limit value in order to display high/ It sets reservation recording time to start and finish recording. low-limit value of measurement input.
  • Page 11: Firmware Update

    Computer A (+) ※ It is recommended to use Autonics communication converter; SCM-WF48 (Wi-Fi to RS485·USB wireless communication converter, sold separately), SCM-US48I (USB to RS485 converter, sold separately), SCM-38I (RS232C to RS485 converter, sold separately). Please use twisted pair wire, which is suitable for RS485 communication, for SCM-WF48 and SCM-US48I.
  • Page 12: Factory Default

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Functions Error Displays error messages on screen and print data when error occurs. Message Description When input type is temperature sensor (Thermocouple, RTD) and the measurement value is higher than high-limit value of input range, it flashes HHHH. It is cleared when the measurement value is within the high-limit range.
  • Page 13: Option Info

    -|Transparent setting guide|- KRN1000 Series Factory Default Option Info. System Info. Alarm Output Date/Time Parameter Default Parameter Default Parameter Default Parameter Default (Alarm 1) Red Date Setting Summer Time Disable (Alarm 2) Orange Auto set Alarm Mark Alarm Color Summer Time...
  • Page 14: Proper Usage

    -|Transparent setting guide|- LCD Touchscreen Paperless Recorder Proper Usage • Follow instructions in 'Cautions during Use'. Otherwise, it may cause unexpected accidents. • Install a surge absorber at each end of inductive load coil when controlling high-capacity power relay or inductive load (e.g. magnet).
