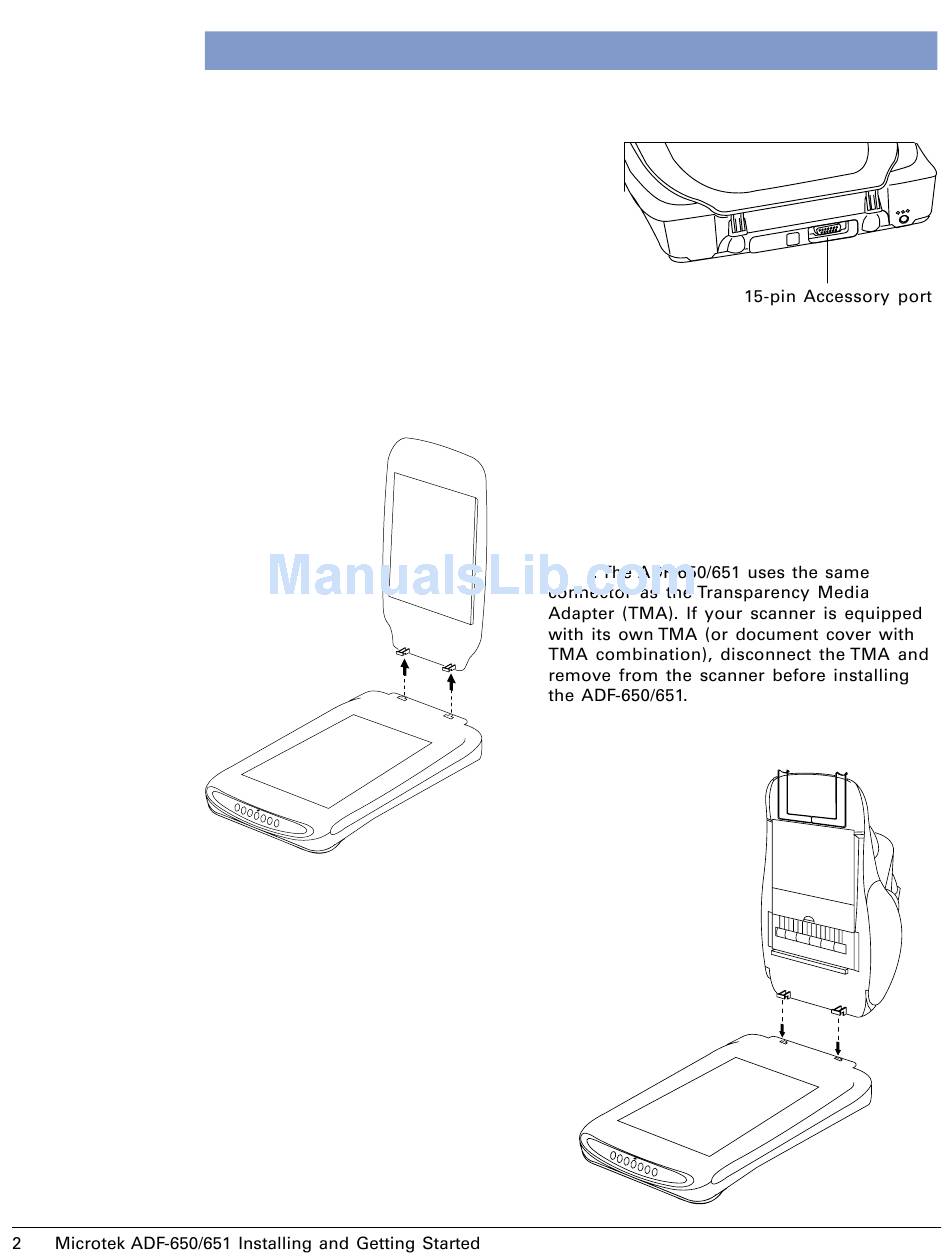

Installing the ADF-650/651

Follow these steps to install the ADF-650/651:

1. Make sure that your flatbed scanner model

has a built-in 15-pin accessory port that is

compatible with your ADF-650/651.

2. Make sure your scanner has been installed

and works properly.

3. Power off your scanner.

4. Remove the scanner cover. Open the cover until it stands vertically to the scanner,

then pull upward to remove.

5. Hold the ADF-650/651 firmly on both sides

in a vertical position, with its hinge studs

and connector at the bottom. With the

feeder vertically positioned on the scanner,

carefully align and insert the feeder studs

into the hinge slots originally used by the

scanner cover (or TMA).

Note
