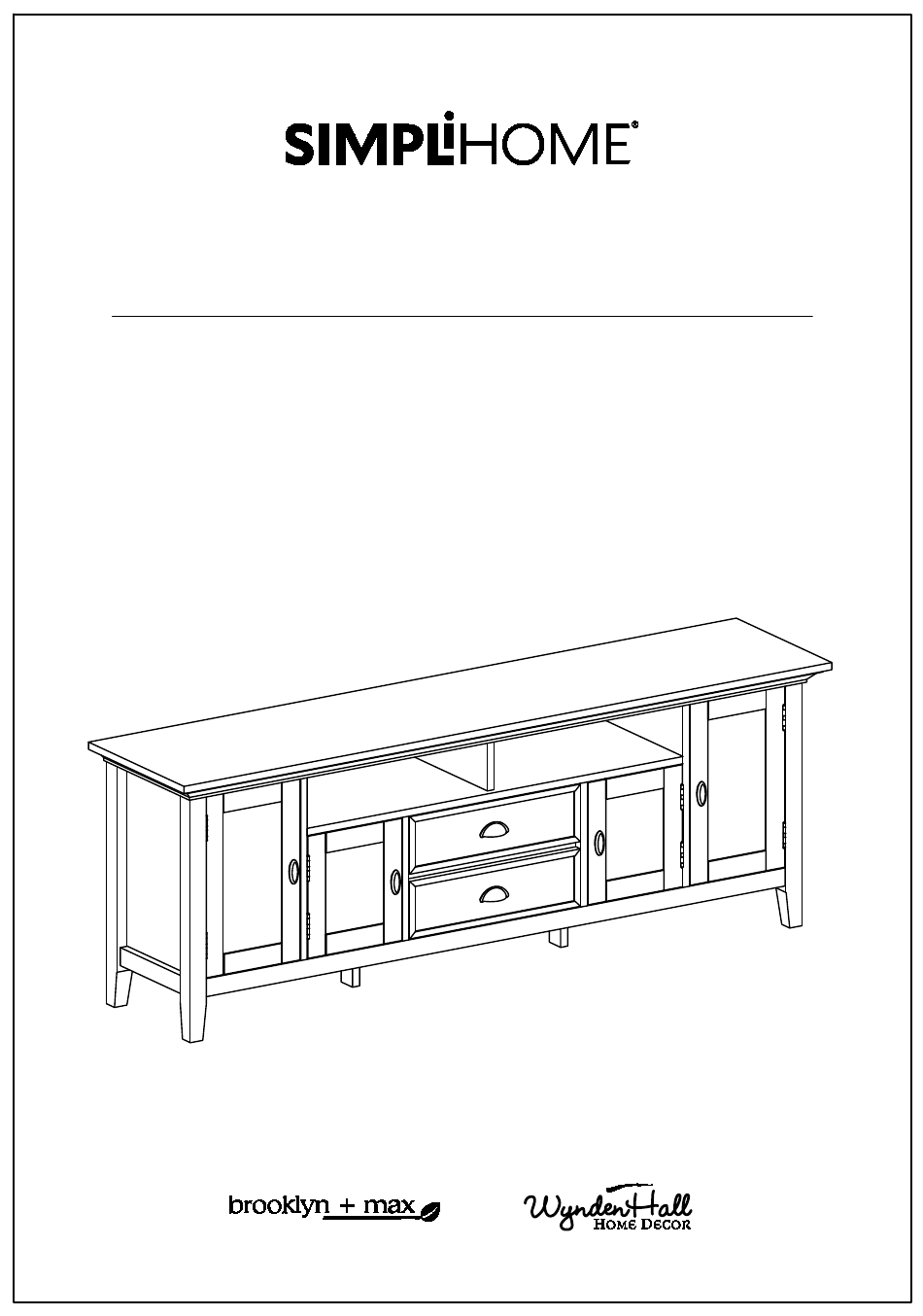

- Page 1 Redmond / Mansfield / Stanwick 72 inch TV Media Stand Model # AXCRED72-BRU...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCRED72-BRU Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT LARGE DIVIDER RIGHT LARGE DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEFT BACK PANEL LARGE DOOR (L&R Same) CABINET SHELF QTY 1 QTY 2 QTY 2... - Page 9 Pre-Assembly Information Model # AXCRED72-BRU Part Description Warning Label RIGHT BACK PANEL TOP BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE DRAWER FRONT TOP SHELF QTY 1 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER BOTTOM DRAWER BACK QTY 1...
- Page 10 Pre-Assembly Information Model # AXCRED72-BRU Part Description FLIP DOWN DOOR MIDDLE SHELF SMALL DIVIDER QTY 1 QTY 1 QTY 1 SMALL DOOR (L&R Same) LEFT MIDDLE DIVIDER RIGHT MIDDLE DIVIDER QTY 2 QTY 1 QTY 1 SUPPORT LEG QTY 2...
- Page 11 Pre-Assembly Information Model # AXCRED72-BRU Hardware Description ALLEN KEY SCREW ALLEN KEY SHELF SUPPORT M6 X 30mm QTY 52 QTY 1 QTY 12 PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15mm M3 X 12mm M4 X 15mm QTY 20 QTY 24 QTY 31...
- Page 12 Pre-Assembly Information Model # AXCRED72-BRU Hardware Description PHILLIPS SCREW PHILLIPS SCREW HANDLE M4 X 30mm M4 X 10mm M3.5 X 12mm QTY 8 QTY 2 SETS QTY 12 Required - Flathead screwdriver Phillips screwdriver Not Included HINGE QTY 2 SETS...
- Page 13 Components - Key Diagram Model # AXCRED72-BRU...
- Page 14 Assembly Model # AXCRED72-BRU Step 1 1. Attach four Cam Lock Pins 9 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides JL , JR . 3. Insert two Cam Locks 9 into pre-drilled holes on each Drawer Side JL , JR . 4.
- Page 15 Assembly Model # AXCRED72-BRU Step 3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through pre-drilled holes on each Side JL , JR . 3.
- Page 16 Assembly Model # AXCRED72-BRU Step 5 1. Attach Middle Dividers QL , QR to Middle Shelf N using six Allen Key Screws 1 (three screws on each Middle Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 6 1.
- Page 17 Assembly Model # AXCRED72-BRU Step 7 1. Attach Large Dividers DL , DR to Top Shelf H using six Allen Key Screws 1 (three screws on each Divider). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten.
- Page 18 Assembly Model # AXCRED72-BRU Step 8 1. Attach Bottom Shelf C to Middle Dividers QL , QR and Large Dividers DL ,DR using twelve Allen Key Screws 1 (three screws on each Divider). 2. Attach Small Divider O to Top Shelf H using three Allen Key Screws 1 3.
- Page 19 Assembly Model # AXCRED72-BRU Step 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Sides AL , AR to Bottom Shelf C using six Allen Key Screws 1 (three Screws on each Side). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 3.
- Page 20 Assembly Model # AXCRED72-BRU Step 10 1. Attach Top B to Sides AL , AR , Small Divider O and Large Dividers DL , DR using fifteen Allen Key Screws 1 (three screws on each Side, Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Assembly Model # AXCRED72-BRU Step 12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Flip Down Door M to Middle Shelf N using two Hinges 13 and twelve Phillips Screws 12 . 2. Attach Magnet Plates 7 to top corner of Middle Divider QL , QR using Phillips Screws 5 into guide holes on Middle Divider QL , QR .
- Page 22 Assembly Model # AXCRED72-BRU Step 13 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Large Doors E to Sides AL , AR using Phillips Screws 4 into guide holes. 2. Attach hinges on Small Doors P to Large Dividers DL , DR using Phillips Screws 4 into guide holes.
- Page 23 Assembly Model # AXCRED72-BRU Step 14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnets Plates 7 to bottom corner of Large Doors E and Small Doors P . using Phillips Screws 5 into guide holes on Large Doors E and Small Doors P .
- Page 24 Assembly Model # AXCRED72-BRU Step 15 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint. 3.
- Page 25 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 26 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
