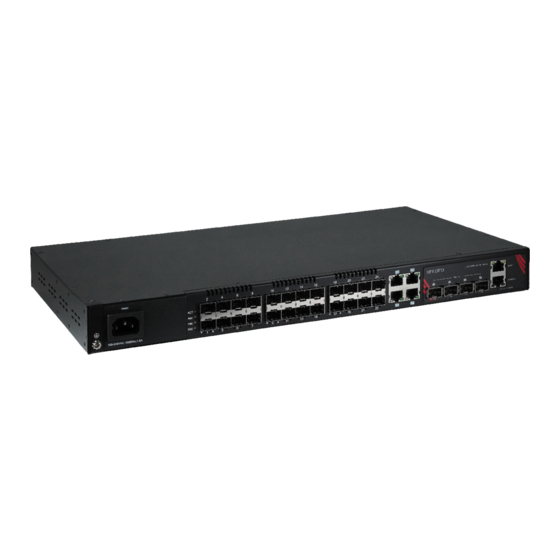

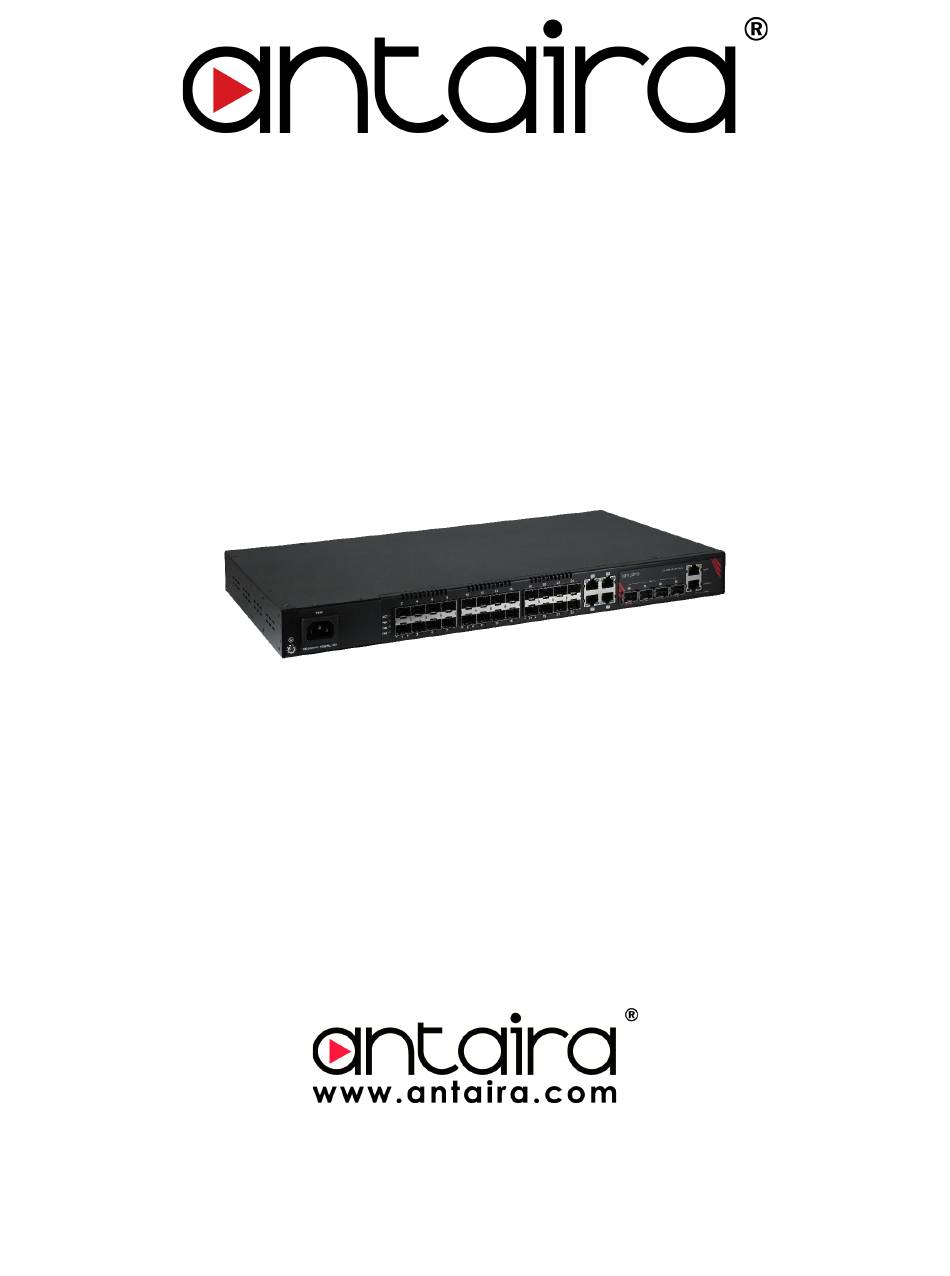

- Page 1 LMX-3228G-10G-SFP Series 32-Port Industrial Gigabit Managed Ethernet Switch, with 4*10/100/1000Tx Ports, 24*100/1000 SFP Slots, and 4*1G/10G SFP+ Slots Hardware Manual Version 1.0 (April 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 ● LMX-3228G-10G-SFP-AA ● LMX-3228G-10G-SFP-DD ● LMX-3228G-10G-SFP-AD This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel... -
Page 6: Overview
LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LMX-3228G-10G-SFP Series is a 32-port industrial gigabit managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports, 24*100/1000 dual rate SFP slots, and 4*1G/10G dual rate SFP+ slots for fiber connections. -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output Software Upload via TFTP and HTTP 1.3 Package Contents LMX-3228G-10G-SFP(-XX) DIN-Rail mounting bracket set with screws... - Page 8 Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Figure 1.2 - Hot Surface Warning Label Figure 1.2 - Étiquette d'avertissement de surface chaude...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 440mm x 250mm x 43.5mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Rear View Panel Figure 2.3, below, shows the rear panel of the product series: Figure 2.3 - Rear View Panel... - Page 11 Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Power Input 2 is active Green Power Input 2 is inactive Green The switch is active Alert The switch does not receive power Green Fan is working normally Fan is working abnormally.
-
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 2.5 Reset Button There is a “reset” button located on the rear panel of the Ethernet switch that helps users to reboot, restore default by pressing the button for different seconds. Please refer to Table 2.2 for the timing and function. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 4 / TP2+ 7 / TP3+ 4 / TP2+ 4 / TP3+ 5 / TP2- 8 / TP3- 5 / TP2- 5 / TP3- 6 / TP1-... -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 Left: Live line, Right: Neutral line, Middle: Ground Figure 2.4 - Power Terminal Block DC models provide a DC module for power connection. You must connect the switch only to the DC input source that has an input supply voltage from -36 to -60VDC. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 Rack Mounting The switch comes with a rack-mounted kit which can be mounted in an EIA standard size, 19-inch rack. It can be placed in a wiring closet with other equipment. -
Page 16: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 17: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMX-3228G-10G-SFP Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Auto MAC address learning/aging, Per port limited MAC address learning, IEEE 802.1Q static VLAN (4K VLAN groups), Voice VLAN, Port isolation, Private VLAN, MAC based VLAN protocol based VLAN IP subnet based VLAN, IEEE 802.1D STP/802.1w RSTP/802.1s MSTP, IEEE 802.3ad Link Aggregation, static... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
