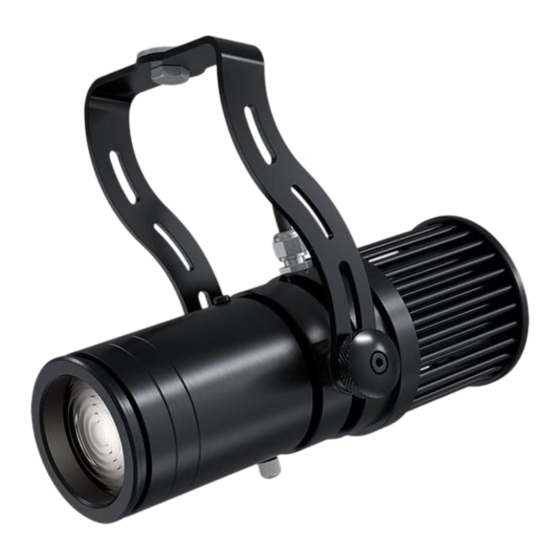

ARTEMIO FRESNEL
USER'S MANUAL rel. 1.0 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTEMIO FRESNEL and is the answer not in the manual?

Questions and answers

Related Manuals for DTS ARTEMIO FRESNEL

Summary of Contents for DTS ARTEMIO FRESNEL

  • Page 1 ARTEMIO FRESNEL USER’S MANUAL rel. 1.0 GB...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
  • Page 3 1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL MEANS “SUITABLE FOR INDOOR USE ONLY” THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN COMMUNITY DIRECTIVE 2012/19/EC ON WASTE ELECTRICAL AND ELECTRONIC...

  • Page 4: Technical Features

    4- TECHNICAL FEATURES DTS Product codes: 03.ART001 ARTEMIO FRESNEL 3000K 03.ART008 ARTEMIO FRESNEL 4000K 03.ART010 ARTEMIO FRESNEL 5000K Output Single high-power White 3000K LED 1830 Lumens @ 700mA CRI > 90 Also available with 4000K or 5000K LED LED lifespan: 50.000 hours (70% lumen output) Optical group Ø...
  • Page 5 DIMENSIONS 5- ACCESSORIES Optional (on request) ● Barndoor + Filter holder - black finishing (code 03.ART012) ● Filter holder - black finishing (code 03.ART014) ● Holographic filter soft-edge (code 0506A132.D19) ● Holographic filter 60°x10° (code 0506A092.D19) ● 2 x 0,5 mm² cable (code 0509C120) ●...

  • Page 6: Important Safety Information

    6- IMPORTANT SAFETY INFORMATION 6.1 Prevention from electric shock: Class II LED product according to standard EN 60598-1. 6.2 Safety: Risk Group 2 product according to EN 62471. CAUTION. Do not look directly into the light output. May be harmful to the eyes and skin.

  • Page 7: Installation

    7- INSTALLATION The unit is suitable for dry locations only. ARTEMIO FRESNEL can be installed on a truss or on the ceiling. It is recommended the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as shown in the picture below.

  • Page 8: Filter Holder Installation

    8- FILTER HOLDER INSTALLATION The Filter Holder for ARTEMIO FRESNEL (code 03.ART014) and holographic filters are available on demand. 1) To install the holographic filter remove the metal spring from the holder. 2) Put in place the holographic filter by keeping the microstructure faces inward.
  • Page 9 9- BARNDOOR + FILTER HOLDER INSTALLATION The Barndoor + Filter Holder for ARTEMIO FRESNEL (code 03.ART012) is available on demand. Fix the Barndoor on ARTEMIO at the desired position by tightening the 2 knobs. Knobs to fix Barndoor + Filter Holder...
  • Page 10 10- CONNECTIONS ARTEMIO FRESNEL is provided with 2 x 0,5 mm² cable (2 m length). BLACK wire = LED RED wire = LED 700mA Max 700mA Max 36Vdc Min 36Vdc Min...

  • Page 11: Wiring Diagrams

    11- WIRING DIAGRAMS The maximum number of ARTEMIO FRESNEL connectable to each output channel of the DRIVENET 28 EZ is 1 piece. The maximum distance between DRIVENET 28 EZ and ARTEMIO FRESNEL unit should not exceed 100 meters.
  • Page 12 11- WIRING DIAGRAMS The maximum number of ARTEMIO FRESNEL connectable to each output channel of the DRIVENET 832 is 1 piece. The maximum distance between DRIVENET 832 and ARTEMIO FRESNEL should not exceed 100 meters.
  • Page 13 11- WIRING DIAGRAMS The maximum number of ARTEMIO FRESNEL connectable to each output channel of the DRIVENET 28C DIN @ 48Vdc is 1 piece. The maximum distance between DRIVENET 28C DIN @ 48Vdc and ARTEMIO FRESNEL unit should not exceed 100 meters.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 ISO 9001:2015 DTS quality system is certified 9001:2015 standard 0517I333 D.T.S. Illuminazione s.r.l. ● Via Fagnano Selve 12- 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
