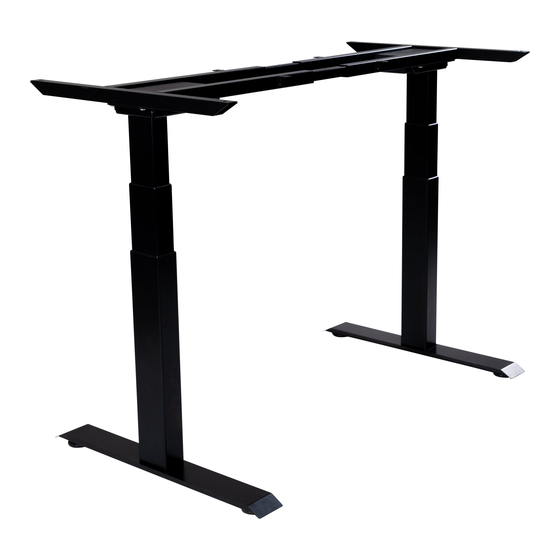

Sun-Flex DESKFRAME 600606 Assembly Manual
Hide thumbs
Also See for DESKFRAME 600606:
- Assembly manual (68 pages) ,
- Assembly manual (147 pages) ,
- Assembly manual (112 pages)
Related Manuals for Sun-Flex DESKFRAME 600606
Summary of Contents for Sun-Flex DESKFRAME 600606

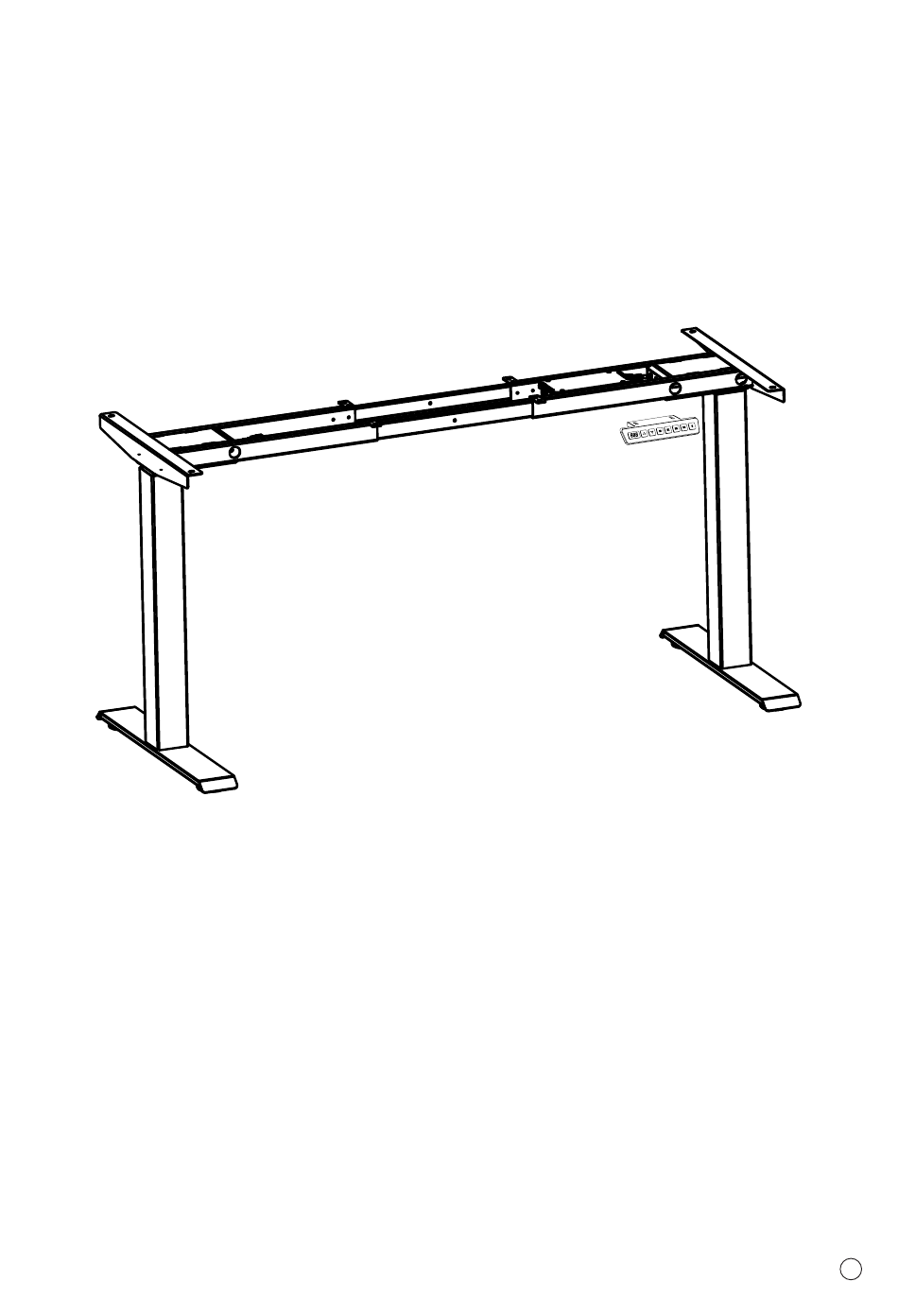

- Page 1 SUN-FLEX®DESKFRAME 600606 SUN-FLEX®DESKFRAME 600706 SUN-FLEX®DESKFRAME 600806 Assembly manual Rev. 20221209 1/12...
- Page 2 SUN-FLEX®DESKFRAME 600606 SUN-FLEX®DESKFRAME 600706 SUN-FLEX®DESKFRAME 600806 Electric control part: Input voltage: 100-240V Output voltage: 24V DC, Max. 6A Duty cycle: 10% MAX 2 min on 18 min off Switch power supply, low energy consumption Intuitive control Desk frame part: Built-in limit switch...
- Page 3 INSTALLATION INSTRUCTION HARDWARE INCLUDED B QTY:8 D QTY:8 QTY:4 A QTY:12 ST5.0*16 M6*10 M8*30 ST4.2*16 optional TOOLS REQUIRED TOOLS INCLUDED Rev. 20221209 3/12...
- Page 4 INSTALLATION INSTRUCTION STEP 1 LOOSEN A QTY:8 STEP 2 M6*10 4/12...
- Page 5 A QTY:4 M6*10 D QTY:8 ST5.0*16 5/12...
- Page 6 TIGHTEN 6/12...
- Page 7 INSTALLATION INSTRUCTION STEP 7 M4.2*16 STEP 8 M4.2*16 7/12...
- Page 8 INSTALLATION INSTRUCTION STEP9 8/12...
- Page 9 9/12...
- Page 10 10/12...
- Page 11 3. This declaration of conformity is issued under the sole responsibility of the manufacturer. 4. Object of the declaration: Equipment: Height adjustable desk frame Brand name: SUN-FLEX Model/type: 600606, 600706, 600806 5. The object of the declaration described above is in conformity with the relevant Union harmonization legislation:...
- Page 12 Logistikvägen 6, SE-438 70 Landvetter, Sweden Tel: +46 322 127 00 info@sun-flex.com www.sun-flex.com 12/12...
