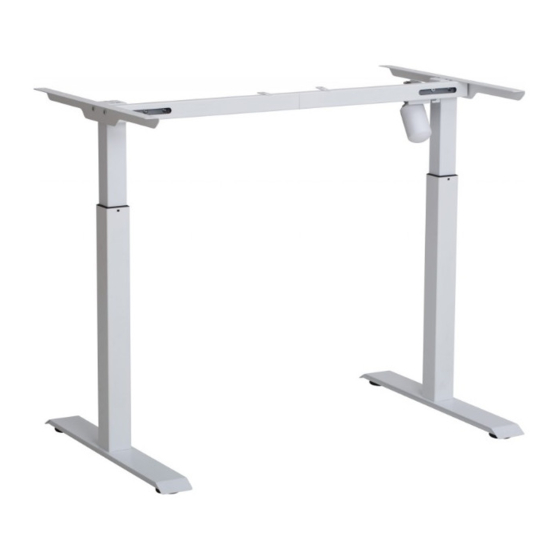

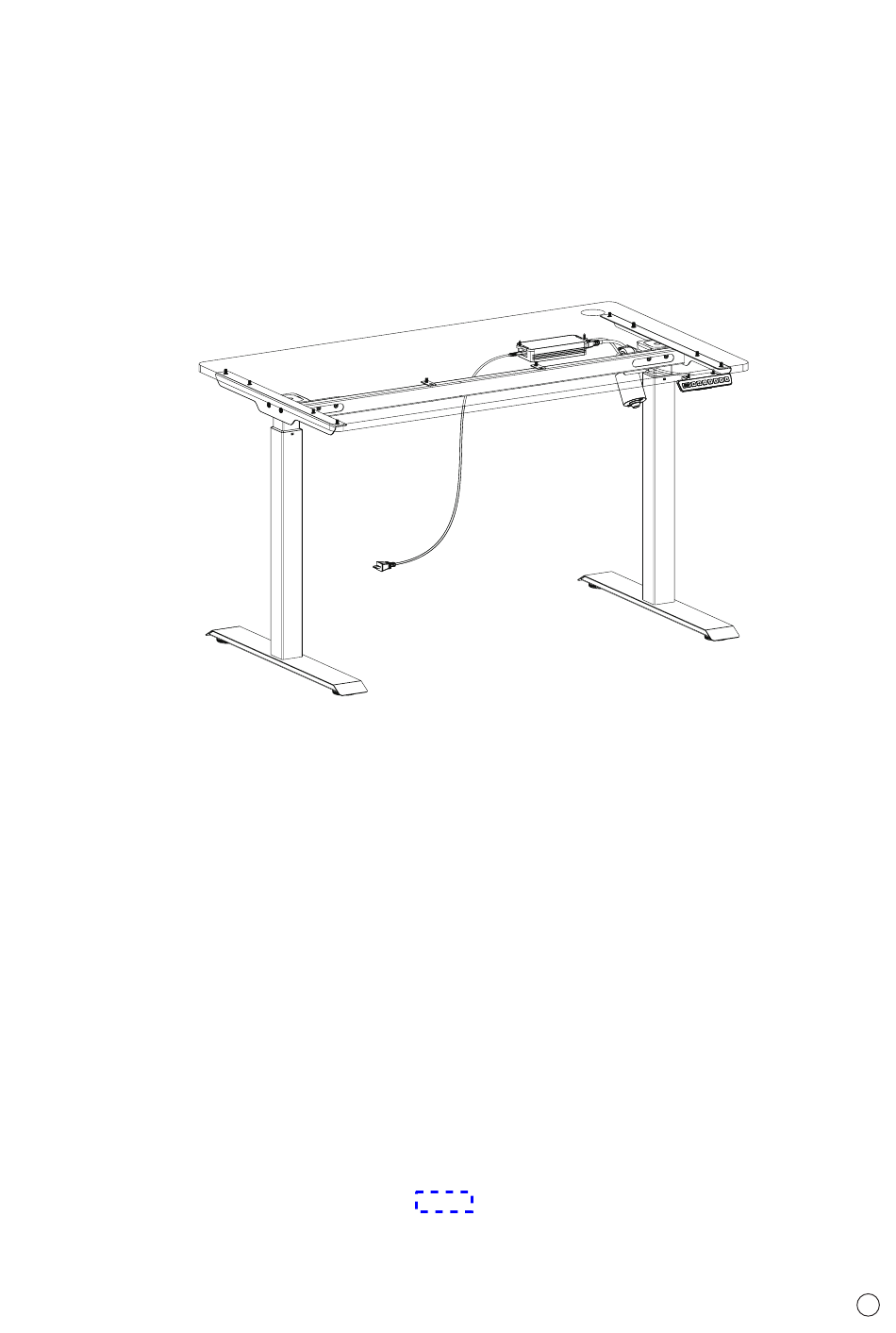

- Page 1 SUN-FLEX®DESKFRAME 600602 SUN-FLEX®DESKFRAME 600702 SUN-FLEX®DESKFRAME 600802 Assembly manual www.sun-flex.com 1 (11) Rev. 20221207...
-
Page 2: Safety And Warnings
SUN-FLEX®DESKFRAME 600602 SUN-FLEX®DESKFRAME 600702 SUN-FLEX®DESKFRAME 600802 Electric control part: Input voltage: 100-240V Output voltage: 29V DC 3.0A Duty cycle: 10% MAX 2 min on 18 min off Safety and warnings: Switch power supply, low energy consumtion This appliance can be used by children... -
Page 3: Installation Instruction
Installation instruction Table top not included HARDWARE INCLUDED A QTY:10 B QTY:8 C QTY:2 D QTY:10 ST5.0*16 M6*12 M8*30 M4.2*16 (optional) TOOLS REQUIRED TOOLS INCLUDED M2.5 3 (11) - Page 4 INSTALLATION INSTRUCTION ALLA CTION QTY:4 STEP 1 M6*12 QTY:2 STEP 2 LOOSEN M6*12 4 (11)
- Page 5 INSTALLATION INSTRUCTION INSTALLATION INSTRUCTION B QTY:8 STEP 3 M8*30 STEP 4 D QTY:10 ST5.0*16 (optional) 5 (11)
- Page 6 INSTALLATION INSTRUCTION STEP 5 STEP 6 TIGHTEN M2.5 TIGHTEN 6 (11)
- Page 7 INSTALLATION INSTRUCTION C QTY:2 STEP 7 M4.2*16 STEP 8 7 (11)
-
Page 8: Directions For Use
DIRECTIONS FOR USE Advanced function settings Limited height setting: Press ” ” and ” ” key for 5 seconds until you hear a buzz sound. The limited height is set. (Minimum limited height <96, maximum limited height >97). Cancel function: run to the limit height, press ” ” and ” ” for 5 seconds, until you hear the buzz sound. -
Page 9: Memory Keys
DIRECTIONS FOR USE Up & Down key Memory key Set key Display screen The handset surface is a button panel. If no button is pressed within 30 seconds, the screen auto-locks and corresponding M1/M2/M3/M4 keys are locked. Press Up or Down key to re-activate the display screen. -
Page 10: Eu Declaration Of Conformity
3. This declaration of conformity is issued under the sole responsibility of the manufacturer. 4. Object of the declaration: Equipment: Height adjustable desk frame Brand name: SUN-FLEX Model/type: 600602, 600702, 600802 5. The object of the declaration described above is in conformity with the relevant Union harmonization legislation:... - Page 11 Logistikvägen 6, SE-438 70 Landvetter, Sweden Tel: +46 322 127 00 info@sun-flex.com www.sun-flex.com...
