Orion StarBlast II 4.5" Focuser Shim Kit Installation Instructions

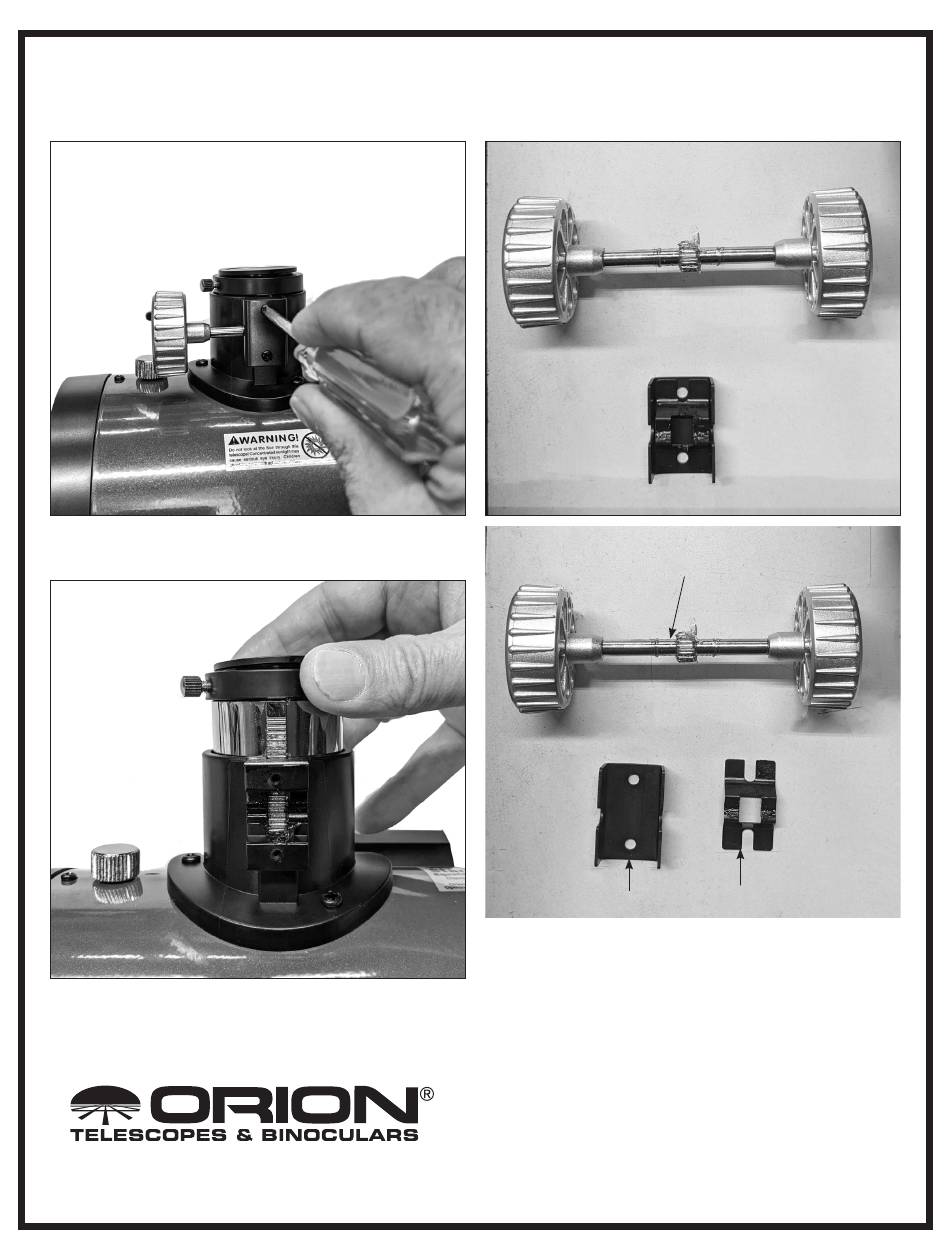

Figure 1.

Remove the cover plate that holds the focus knob

shaft assembly to the rack and pinion focuser by removing the

two Phillips-head screws

Figure 2.

Lift the drawtube assembly from the focuser

housing by simply grasping it by the top ring and gently pulling

it outward.

A N E M P L O Y E E - O W N E D C O M P A N Y

may be reproduced, copied, modified or adapted, without the prior written consent of Orion Telescopes & Binoculars.

# 63038

Focus knob shaft assembly

Cover plate

Figure 3.

There is a small flat spring intended to maintain

tension of the focus knob assembly shaft against the rack

gear of the drawtube. Because this connection is greased you

may find the flat spring stuck to the focuser housing as shown

in Figure 2 or in the cover as shown in Figure 3a. Carefully

remove it and set it aside. It will help to take note of the

orientation of the spring as you will need to set it back in the

same position when reassembling.

Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA

Toll Free USA & Canada: (800) 447-1001

International: +1(831) 763-7000

Customer Support: support@telescope.com

Flat spring

IN 683 12/22

Need help?

Do you have a question about the StarBlast II and is the answer not in the manual?

Page 1 Orion StarBlast II 4.5" Focuser Shim Kit Installation Instructions # 63038 Figure 1. Remove the cover plate that holds the focus knob shaft assembly to the rack and pinion focuser by removing the two Phillips-head screws Focus knob shaft assembly...
Page 2 Figure 5. Replace the drawtube by inserting it into the focuser housing until it is fully seated (as shown in Figure 2). New focus knob shaft assembly Flat spring Two felt strips inside focuser housing Figure 6. Take the new focus knob shaft assembly included in this kit and place it on the focuser.
