Tightening the Quick
Release Plate
When securing the quick release plate onto the top of the tri-
pod, you should tighten down the "Quick Release Plate Lock
Lever (Figure 2B in the tripod manual). In case the locking
lever doesn't fully clamp down on the quick release plate (leav-
ing the plate loose), there is an adjustment to engage the lock
lever more tightly:
1. Grab the lock lever with your fingers and gently pull
straight out, away from the tripod head. (Figure A and
B). The lever knob is spring loaded and pulls away from
the underlying bolt head.
2. While the lever knob is being pulled outwards, rotate it
slightly clockwise until it re-seats itself again over the bolt
head.
3. The level should now provide more pressure against
the quick release plate. You may have to pull the knob
away and rotate again until you find the right amount of
pressure against the plate to hold it securely.
A N E M P L O Y E E - O W N E D C O M P A N Y
Copyright © 2020 Orion Telescopes & Binoculars. All Rights Reserved. No part of this product instruction or any of its contents
may be reproduced, copied, modified or adapted, without the prior written consent of Orion Telescopes & Binoculars.
ADDENDUM

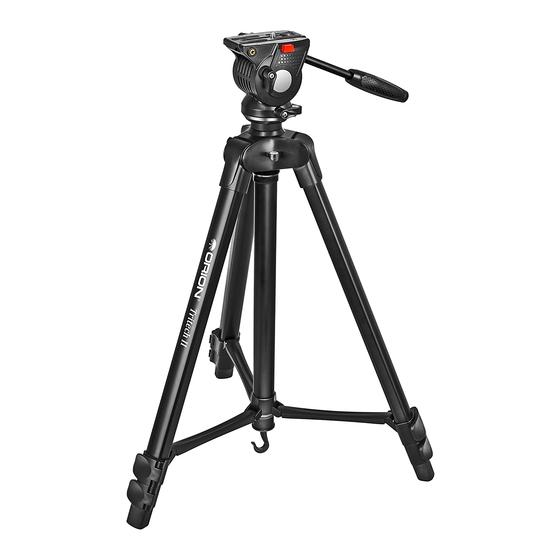

Tritech II Field Tripod
®
with Fluid Pan Head
a

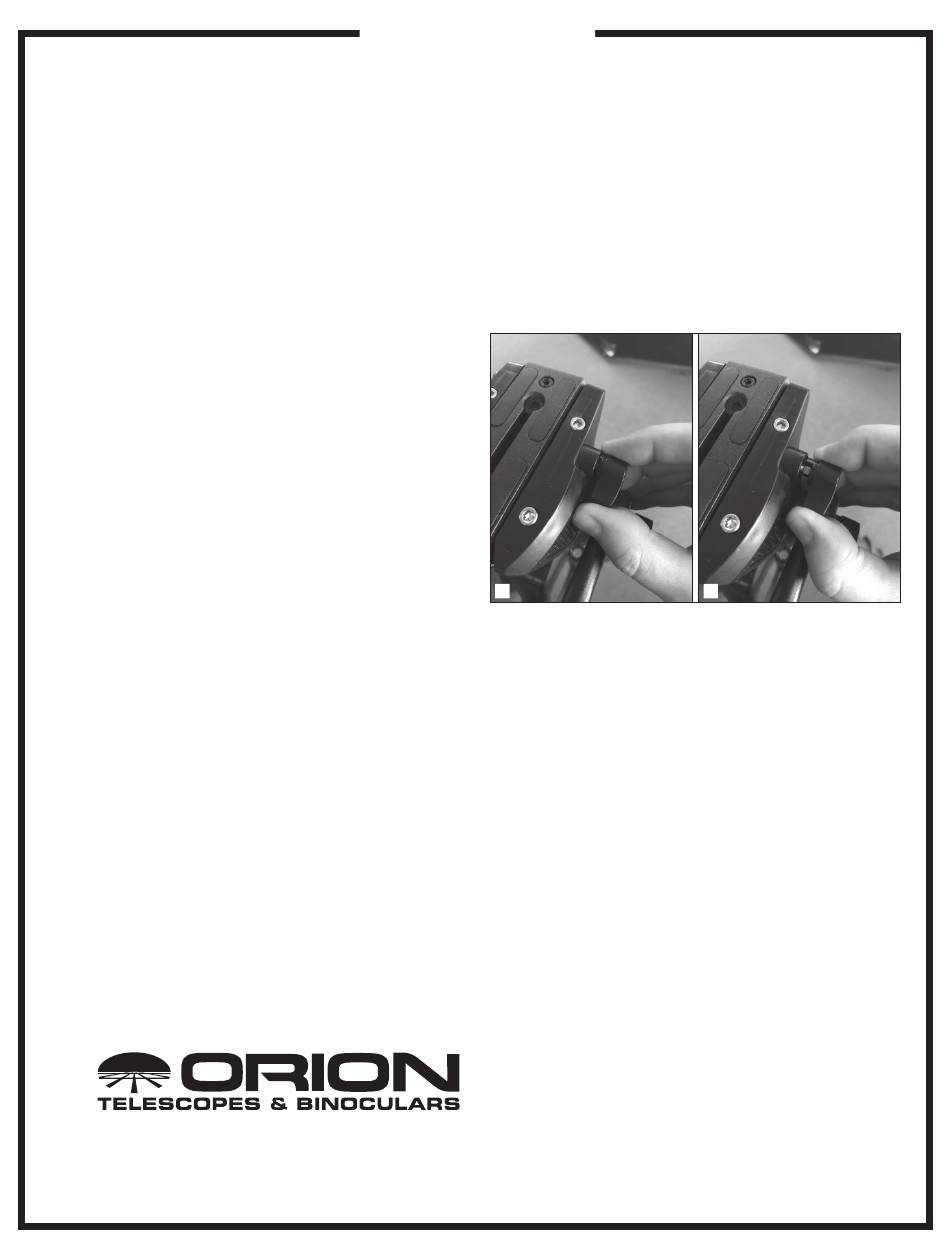

Figure a.
