ORION TELESCOPES & BINOCULARS Tritech II-M Pro Instruction Manual

Reversible 1/4"
and 3/8" post
1
Loading plate
Lock levers
Mini tripod stand
3
5
a
2
Hand strap
Foam grip
4
b
b
c
INSTRUCTION MANUAL
Orion® Tritech II-M Pro Self-Standing Monopod

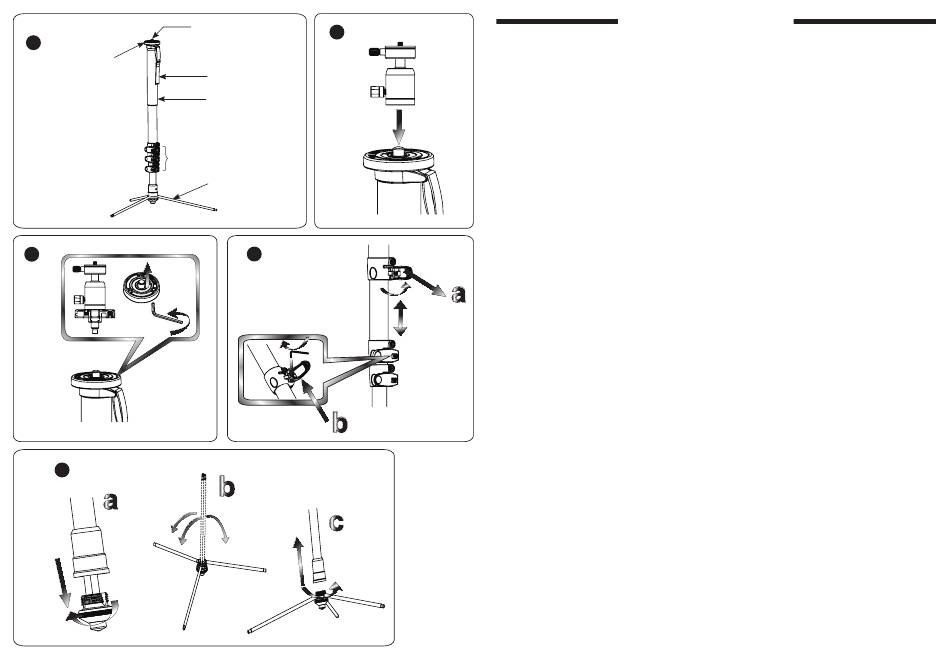

1. Key features (Shown with retractable mini tripod stand deployed.)
2. The reversible 1/4" and 3/8" threaded post allows attachment of ball head (shown) or pan head
(both sold separately) with a compatible threaded socket.
To remove the reversible threaded post, use the supplied Allen key to loosen the Allen screw next
to the threaded post one turn or so. Now unscrew the loading plate. Remove the threaded post and
turn it upside down in the loading plate, then thread the loading plate back on until tight. Finally
re-tighten the Allen screw to secure the loading plate.
3. Once a ball head or pan head has been threaded onto the loading plate, use the supplied Allen
key to tighten (from under the loading plate) the three screws on the loading plate to secure the ball
head or pan head.
4. Adjust the leg section length by flipping open the leg lock lever and sliding the leg to the desired
a
length, then re-clamp the lock lever.
To adjust the locking force of the lever, flip open the lock lever, then use the supplied Allen key to
loosen or tighten the lever screw to the desired tension.
5. To deploy the mini tripod stand, a) Rotate the knurled foot counterclockwise and remove the stand
completely. b) Lower the mini tripod legs. c) Thread the foot clockwise into the lower tube section
until tight.

SPECIFICATIONS

Max. load:
Material:
Sections:
Length extended:
Length collapsed:
Mini Tripod footprint (diameter):
Mounting post:
Weight:
#5391
33 lbs. (15kg)
High-strength aluminum
4
64.3" (163.3cm) (65.6"/166.6cm when mini tripod
deployed)
23.5" (59.7cm)
19.8" (50.1cm)
Reversible 3/8" and 1/4"
2.4 lbs. (1.11kg)
IN 571 08/16
