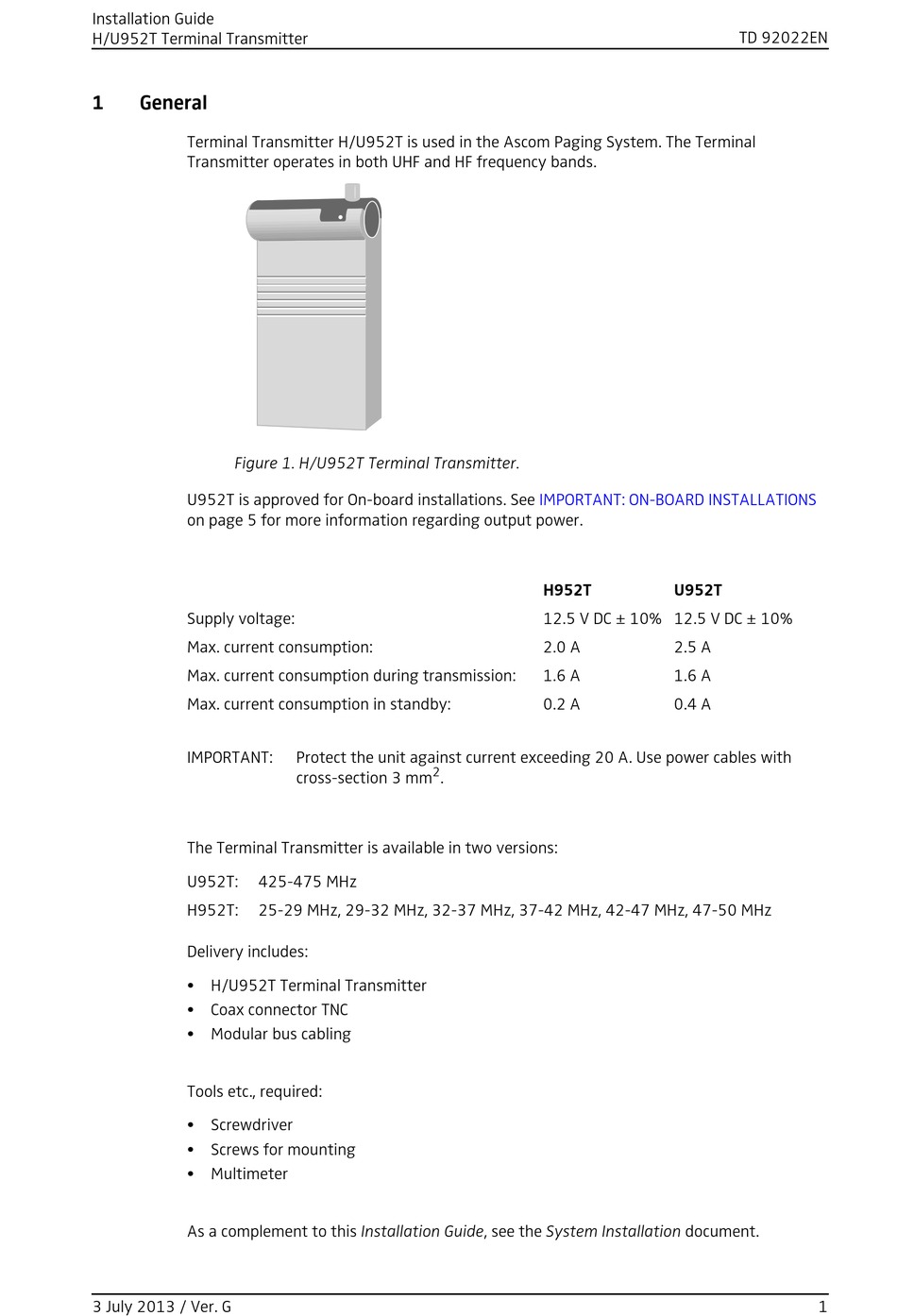

Installation Guide
H/U952T Terminal Transmitter
1
General
Terminal Transmitter H/U952T is used in the Ascom Paging System. The Terminal
Transmitter operates in both UHF and HF frequency bands.
Figure 1. H/U952T Terminal Transmitter.
U952T is approved for On-board installations. See
on page 5 for more information regarding output power.
Supply voltage:
Max. current consumption:
Max. current consumption during transmission:
Max. current consumption in standby:
IMPORTANT:
The Terminal Transmitter is available in two versions:
U952T:
425-475 MHz
H952T:
25-29 MHz, 29-32 MHz, 32-37 MHz, 37-42 MHz, 42-47 MHz, 47-50 MHz
Delivery includes:
• H/U952T Terminal Transmitter
• Coax connector TNC
• Modular bus cabling
Tools etc., required:
• Screwdriver
• Screws for mounting
• Multimeter
As a complement to this Installation Guide, see the System Installation document.
3 July 2013 / Ver. G
Protect the unit against current exceeding 20 A. Use power cables with
2
cross-section 3 mm
.
IMPORTANT: ON-BOARD INSTALLATIONS
H952T
U952T
12.5 V DC ± 10% 12.5 V DC ± 10%
2.0 A
2.5 A
1.6 A
1.6 A
0.2 A
0.4 A
TD 92022EN
1
