Appendix B: Coaxial Connectors

This appendix applies to the following two brands of the TNC coax connector:
• TESCH TNC-30C-TGN
• Telegärtner J01010A0023
Note: The TNC coax connector images below shows the Telegärtner J01010A0023.
When connecting the antenna cable to the Terminal Transmitter the TNC coax connector for
soldering is preferable to use, but an TNC-UHF adapter can be ordered from your supplier if
for example the antenna cable already is equipped with a PL259 (UHF)
TNC Angle connector

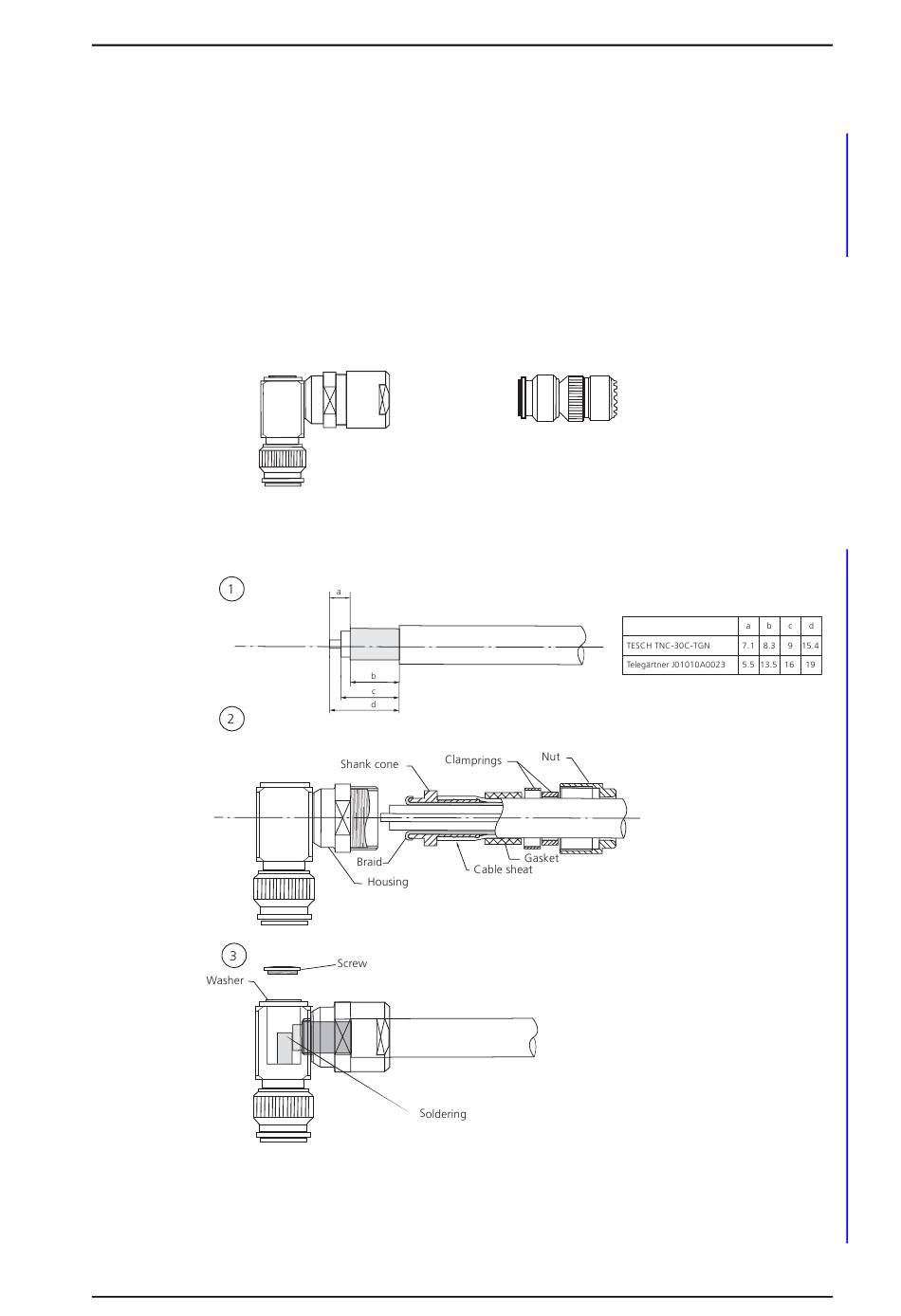

Figure 8. TNC connector and TNC-UHF adapter.
Assemble TNC Coax Connector as follows:
Figure 9. Assembly of TNC coax connector.
1 Cut and strip cable as shown in figure at (1) according to the used brand of the TNC
coax connector.
3 July 2013 / Ver. G
TNC - UHF adapter
TD 92022EN
connector.
