Installation Guide
H/U952T Terminal Transmitter
3.5

Connection of Buses and Control Equipment

Buses are connected either via modular bus cabling or twisted-pairs.
NOTE: Data buses are polarized! Use only twisted-pairs for separate wiring!
Bus Connections via Modular Bus Cabling
Pin 1

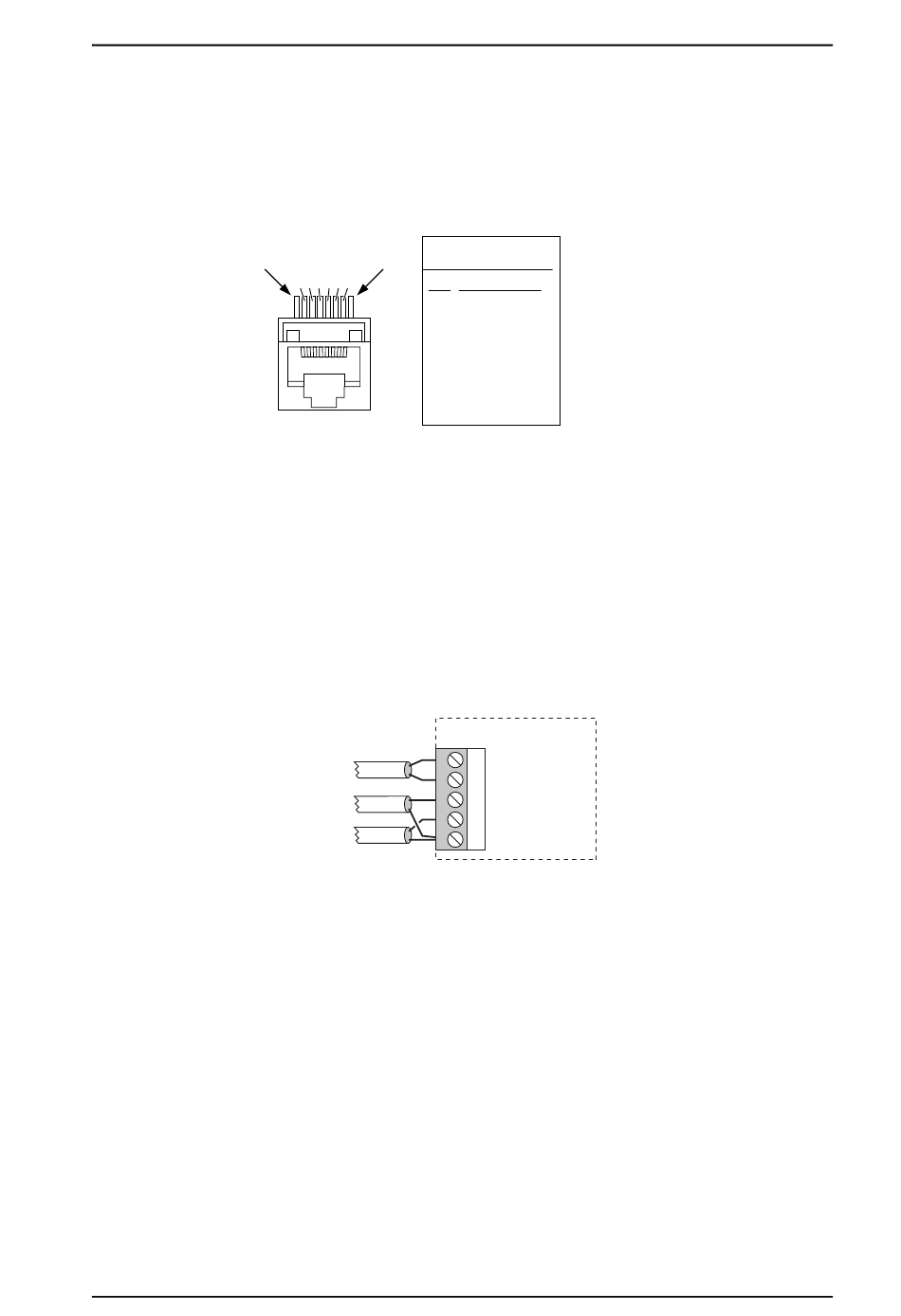

Figure 5. Modular bus cable pins.
Note that only D- and SP-bus are used by the Terminal Transmitter. When the modular bus
cable is used, no further connection of the SP-bus to T952SM/FL Speech and Frequency Lock
Module is required.
• Connect the modular bus cabling to connectors J100 and J101, see
Bus Connections via Twisted-Pairs
D-bus, connection
to a Central Unit
Control of
Power Amplifier
H/U950SC
• Connect the D bus to connector J103, screw 1 and 2.
• If speech is used, see
Connection of Control Equipment
• Connect H/U950SC Output Power Surveillance Module to J103, screw 4 and 5.
See also the Installation Guide for the respective units.
3 July 2013 / Ver. G
J100 + J101
Pin 8
234567
Pin Signal
1
2
3
4
5
6
7
8
J103
Connection of SP/FL Bus via Twisted-Pairs
A1 data bus
A2 data bus
B1 data bus
B1 data bus
D1 data bus
D2 data bus
SP1 speech bus
SP2 speech bus
H/U952T
1 D1
2 D2
3 Booster control
4 Monitor input
5 GND
TD 92022EN
figure 2 on page 3.
on page 17.
9
