ASCOM H952T Installation Manual page 21

Installation Guide
H/U952T Terminal Transmitter
2 Slide nut, clamp rings and gasket onto cable.
3 Push shank cone between braid and cable sheath until stop (2).
4 Insert cable into housing and screw on the nut.
5 Solder the inner conductor (3).
IMPORTANT:
6 Check with ohmmeter for short circuit between connector body and inner conductor.
NOTE: If the cable is connected to a dc-grounded antenna, disconnect it before making this
check.
7 Insert washer and screw (3).
When connecting the antenna cable to MPT-50 Power Divider and Slave transmitters, the
connector PL259 (UHF) is used.
Assemble PL259 Coax Connector as follows:
1
2

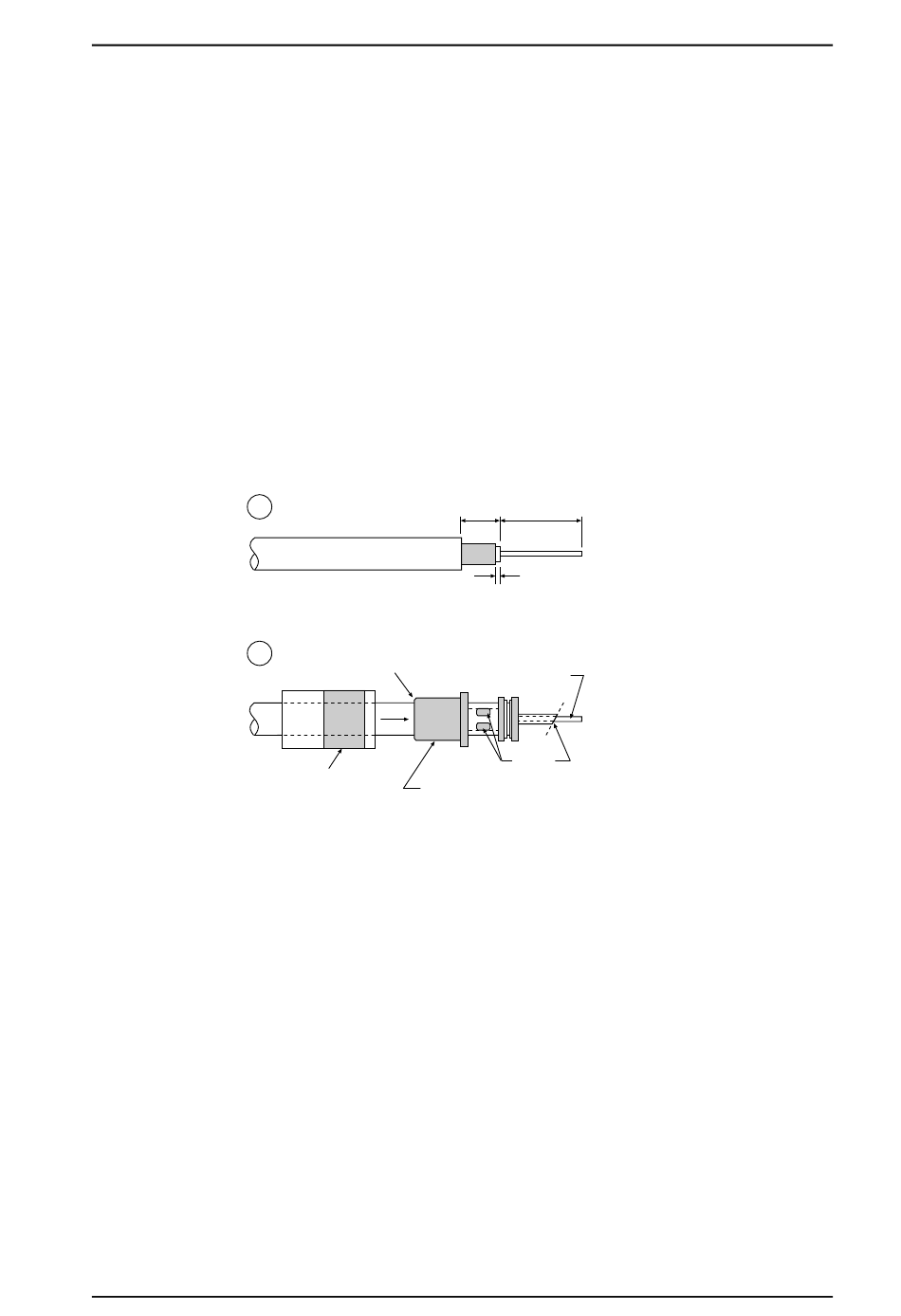

1 Cut and strip cable as shown in figure at (1).
2 Slide coupling ring onto cable and screw connector body onto cable (2).
3 Solder braided shield to body through the two solder holes.
IMPORTANT:
4 Cut inner conductor diagonally as shown and solder to connector.
5 Screw coupling ring onto body.
6 Check with ohmmeter for short circuit between connector body and inner conductor.
NOTE: If the cable is connected to a dc-grounded antenna, disconnect it before making this
check.
3 July 2013 / Ver. G
Overheating during soldering may damage insulation between inner
conductor and shield resulting in negative effects on cable.
screw coupling
ring onto body
Coupling
ring
Connector body
Overheating during soldering may damage insulation between inner
conductor and shield resulting in negative effects on cable.
8 20
1
(dimensions in mm)
cut before
soldering
solder
TD 92022EN
19
