- Page 1 Dahua 3-Port Switch with 2-Port PoE User's Manual V1.0.1 V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get "hacked" is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. -
Page 3: Foreword
This user’s manual (hereinafter referred to be "the Manual") introduces the features, structure, and installation of 3-port switch with 2-port PoE. Models DH-PFS3103-1GT1ET-60 Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words... - Page 4 About the Manual The Manual is for reference only. If there is inconsistency between the Manual and the actual product, the actual product shall prevail. We are not liable for any loss caused by the operations that do not comply with the Manual. ...
-
Page 5: Table Of Contents
Table of Contents Cybersecurity Recommendations ......................I Foreword ..............................II 1 Product Overview ..........................1 Introduction ........................... 1 Features ............................1 Typical Application ......................... 1 2 Device Structure ............................ 2 Side Panel ............................. 2 Front Panel ............................ 2 PoE Power Supply ........................3 3 Installation .............................. -
Page 6: Product Overview

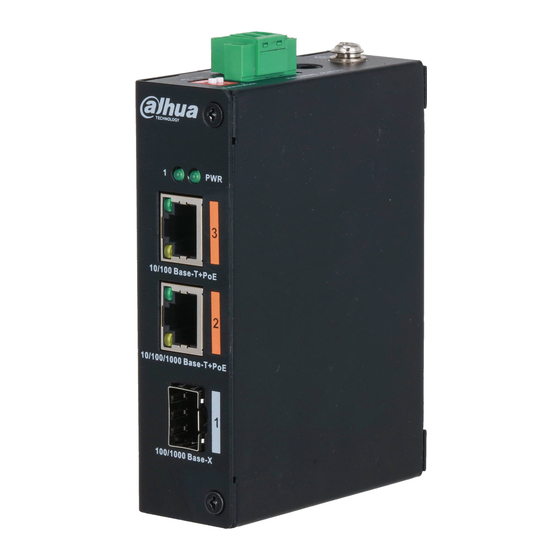

Product Overview Introduction 3-port switch with 2-port PoE is a layer-two industrial switch. It provides 1 10/100/1000Mbps Ethernet RJ45 port, 1 10/100Mbps Ethernet RJ45 port, and 1 100/1000Mbps optical port. Features Layer-two industrial switch. Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards. ... -
Page 7: Device Structure
Device Structure Side Panel The structure of side panel is shown in Figure 2-1. Figure 2-1 Side panel Please refer to Table 2-1 for the description of ports. Table 2-1 The description of ports Port Note Power ports, dual power backup access. Supports DC 48V-DC PWR1&PWR2 57V power input. -
Page 8: Poe Power Supply
Figure 2-2 Front panel Please refer to Table 2-2 for more information. Table 2-2 The description of front panel Name Description 1 10/100Mbps self-adaptation PoE power supply 10/100 Base-T+PoE port. 1 10/100/1000Mbps self-adaptation PoE power 10/100/1000 Base-T+PoE supply port. 100/1000 Base-X 1 1000Mbps optical port. -
Page 9: Installation
Installation The device supports DIN-rail mount. Hang the switch hook on the rail, press the switch to make the buckle stuck into the rail, see Figure 3-1. NOTE The device supports the slide width of 28mm. Figure 3-1 DIN-rail mount Installation 4... - Page 10 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
