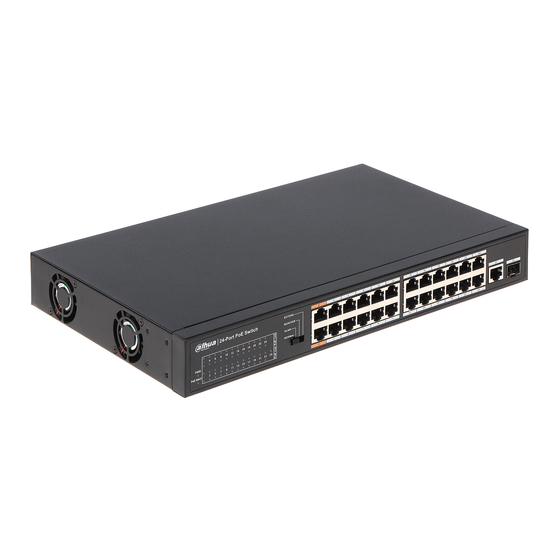

- Page 1 24-Port 10/100Mbps + 1-Port Gigabit Combo Base-T SFP multi-mode PoE Switch User’s Manual V1.0.1 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. - Page 3 In the event that your social media, bank, email, etc. account is compromised, you would not want someone collecting those passwords and trying them out on your video surveillance system. Using a different username and password for your security system will make it more difficult for someone to guess their way into your system.
-
Page 4: Foreword
This user’s manual introduces the functions and operations of 24-Port 10/100Mbps + 1-Port Gigabit Combo Base-T SFP multi-mode PoE Switch devices. Models DH-PFS3125-24ET-190 Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words... - Page 5 providing clear and visible identification to inform data subject the existence of surveillance area and providing related contact. About the Manual The Manual is for reference only. If there is inconsistency between the Manual and the actual product, the actual product shall govern. We are not liable for any loss caused by the operations that do not comply with the Manual.
-
Page 6: Important Safeguards And Warnings
Important Safeguards and Warnings Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electrical shock caused by ... -
Page 7: Table Of Contents
Table of Contents Cybersecurity Recommendations ......................I Foreword ..............................III Important Safeguards and Warnings ..................... V 1 Introduction ............................1 1.1 Overview ............................1 1.2 Features ............................1 1.3 External Component Description ....................1 1.3.1 Front Panel ......................... 1 1.3.2 Rear Panel .......................... 3 1.4 Package Contents ......................... -
Page 8: Introduction
Introduction Overview The Switch is a high performance multi-mode PoE switch. Provides twenty-four 10/100Mbps Auto-Negotiation RJ45 ports, plus one gigabit Combo ports, it can be used to link bandwidth higher upstream equipment. These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PD) such as AP, IP Cameras or IP Phones, etc. - Page 9 Figure 1-1 Front panel LED indicators: The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the Switch, connection or attached devices. Figure 1-2 LED indicator The following chart shows the LED indicators of the Switch along with explanation of each indicator.
-
Page 10: Rear Panel
Faceplate Status Indication Indicator Marker successfully. Mode Control: You can select the switch mode. Normal mode (Normal): Switch all ports can communicate with each other Port isolation mode (VLAN): 1 to 24 cannot communicate with each other, but can communicate with the uplink Combo port 25. Monitoring mode (Monitor): 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other. -
Page 11: Package Contents
Power is supplied through an external AC power adapter. It supports AC 100~240V, 50/60Hz. Package Contents Before installing the Switch, make sure that the following the "packing list" listed OK. If any part is lost and damaged, please contact your local agent immediately. In addition, make sure that you have the tools install switches and cables by your hands. -
Page 12: Installation And Connection
Installation and Connection This part describes how to install your PoE Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 13: Power On The Switch
Figure 2-1 Bracket installation Step 2 Use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Figure 2-2 Rack installation 2.1.3 Power on the Switch The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power supply. -
Page 14: Switch Connection To The Pd
Once the connection is OK and the devices are power on normally, the LINK/ACT status indicator lights corresponding ports of the Switch. Switch connection to the PD 1-24 ports of the Switch have PoE power supply function, the switch port 1 and port 2 support IEEE802.3bt standard 60W high power output , other PoE port power maximum support 30W, it can make PD devices, such as internet phone, network camera, wireless access point work. - Page 15 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
