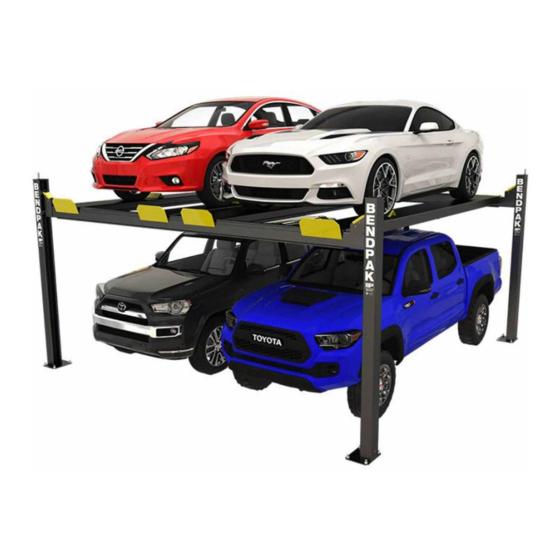

Four post lift
Hide thumbs Also See for HD-9SWX:

Advertisement

Quick Links

Download this manual
Service Manual
SERVICE PARTS & DIAGRAMS
BENDPAK
HD-9SWX
PRODUCT SKU
5175024
DRAWING Nº
5260594
CATEGORY
Four Post Lift
REV
Version K
DATE
09.23.2022
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BendPak, Inc. Corporate Office
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
Toll Free US/Canada: 1-800-253-2363
Fax: 1-805-933-9160
info@bendpak.com
Customer Service Desk / Warranty
Customer Service Representatives
Office Tel: 1-805-933-9970
Toll Free US/Canada: 1-800-253-2363
Fax: 1-805-933-9160
customerservice@bendpak.com
Parts Orders
Customer Service Representatives
Office Tel: 1-805-933-9970
Toll Free US/Canada: 1-800-253-2363
Fax: 1-805-933-9160
parts@bendpak.com
Domestic Sales & Service
USA Sales Representatives
Office Tel: 1-805-933-9970
Toll Free US/Canada: 1-800-253-2363
Fax: 1-805-933-9160
sales@bendpak.com
International Sales & Service
Office Tel: 1-805-933-9970
Exports Dept: 1-805-933-9970 EXT. 192
Ext. Toll Free US/Canada: 1-800-253-2363
Fax: 1-805-933-9160
bpkexports@bendpak.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD-9SWX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BendPak HD-9SWX

Summary of Contents for BendPak HD-9SWX

  • Page 1 Bend Pak product. It provides comprehensive information on identifying serviceable parts and components and assists in troubleshooting problems and performing assembly /disassembly procedures. BendPak, Inc. Corporate Office Customer Service Desk / Warranty Parts Orders Domestic Sales & Service International Sales &...
  • Page 2 5260594 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF BENDPAK INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SEE COLORS & GRAPHICS FOR LABEL PLACEMENT SCALE: 1:40 THE WRITTEN PERMISSION OF BENDPAK INC.

  • Page 3: Front View

    83.0mm MAX 4.090in 103.9mm FRONT VIEW 4.764in 121.0mm 1645 LEMONWOOD DR. 101.850in SANTA PAULA, CA 93060 89.055in 2587.0mm 84.291in 82.111in TITLE: HD-9SWX PRODUCTION 2262.0mm 2141.0mm 2085.6mm LIFT VER L (CE CERT) SIZE DWG. NO. 5260594 SCALE: 1:55 SHEET 2 OF 4...
  • Page 4 616.5mm LOWEST LOCK 7.047in 179.0mm LOWERED 1645 LEMONWOOD DR. SANTA PAULA, CA 93060 TITLE: HD-9SWX PRODUCTION LIFT VER L (CE CERT) SIZE DWG. NO. 5260594 ALL DIMENSIONS SHOWN ARE WITH LOCK LADDER ADJUSTED ALL THE WAY UP SCALE: 1:30 SHEET 3 OF 4...
  • Page 5 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY THREAD M16 HARDWARE ONTO LADDER BOLTS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:52 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 6 5215192 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS 5245392 THE SOLE PROPERTY OF BENDPAK INC. ANY ASSEMBLE ITEMS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 7 5.000in 127.0mm 190.096in 4828.4mm 20.472in 520.0mm 1645 LEMONWOOD DR. SANTA PAULA, CA 93060 TITLE: HD-9/7500BLX POWER SIDE RAMP ASSEMBLY SIZE DWG. NO. 5215192 SCALE: 1:10 SHEET 2 OF 2...
  • Page 8 5216163 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS 5245078 THE SOLE PROPERTY OF BENDPAK INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT ASSEMBLE ITEMS AS SHOWN SCALE: 1:30 THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 9 5216164 PROPRIETARY AND CONFIDENTIAL 5245076 SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF BENDPAK INC. ANY 5245078 ASSEMBLE ITEMS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:30 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 10 PROPRIETARY AND CONFIDENTIAL HOSES AND CABLES IN REPRESENTATIONAL FORM THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY (*) LENGTH FOR REFERENCE ONLY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 11 PROPRIETARY AND CONFIDENTIAL REFER TO MODEL FOR ADDITIONAL INFORMATION THE INFORMATION CONTAINED IN THIS DRAWING IS 5250291 THE SOLE PROPERTY OF BENDPAK INC. ANY SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:30 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 12 PROPRIETARY AND CONFIDENTIAL REFER TO MODEL FOR ADDITIONAL INFORMATION THE INFORMATION CONTAINED IN THIS DRAWING IS 5245080 THE SOLE PROPERTY OF BENDPAK INC. ANY SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 13 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS HDSO SERIES THE SOLE PROPERTY OF BENDPAK INC. ANY ASSEMBLE ITEMS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 15 5216139 PROPRIETARY AND CONFIDENTIAL SHOWN IN REPRESENTATIONAL FORM ONLY 5250168 5250195 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF BENDPAK INC. ANY 5250169 5250278 (*)LENGTH FOR REFERENCE ONLY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.

  • Page 16: Additional Contact Information

    Tel: +86 534-5421821 No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China 2. Vendor Information (Or for Reference) Approved Vendor Vendor Part # Contact # AUTHORIZED COMPONENT PROVIDER 1) Ningjin Hydraulic Hose 5570129 +86 534-5421821 OR BENDPAK ENGINEERING APPROVED EQUIVALENT...
  • Page 17 FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY (*)ITEM 1 QTY FOR REFERENCE ONLY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.

  • Page 18: Cable Assembly

    PROPRIETARY AND CONFIDENTIAL ITEM 1 QTY FOR REFERENCE ONLY THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 5250290 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 19 PROPRIETARY AND CONFIDENTIAL ITEM 1 QTY FOR REFERENCE ONLY THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 20 PROPRIETARY AND CONFIDENTIAL ITEM 1 QTY FOR REFERENCE ONLY THE INFORMATION CONTAINED IN THIS DRAWING IS 5250290 THE SOLE PROPERTY OF BENDPAK INC. ANY THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 21 PROPRIETARY AND CONFIDENTIAL ITEM 1 QTY FOR REFERENCE ONLY THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 22 5600192 PROPRIETARY AND CONFIDENTIAL DIMENSIONS SHOWN ARE AFTER PAINTING THE INFORMATION CONTAINED IN THIS DRAWING IS 5215525 THE SOLE PROPERTY OF BENDPAK INC. ANY PAINT GRAY (RAL-7024) 20% GLOSS REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:30 THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 23 5600205 PROPRIETARY AND CONFIDENTIAL DIMENSIONS SHOWN ARE AFTER PAINTING THE INFORMATION CONTAINED IN THIS DRAWING IS 5245392 THE SOLE PROPERTY OF BENDPAK INC. ANY PAINT GRAY (RAL-7024) 20% GLOSS REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:20 THE WRITTEN PERMISSION OF BENDPAK INC. IS...
  • Page 24 5601827 PROPRIETARY AND CONFIDENTIAL DIMENSIONS SHOWN ARE AFTER PAINTING THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY PAINT GRAY (RAL-7024) 20% GLOSS REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 25 5601828 PROPRIETARY AND CONFIDENTIAL DIMENSIONS SHOWN ARE AFTER PAINTING THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY PAINT GRAY (RAL-7024) 20% GLOSS REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 26 5601138 5601860 5601779 BREAK AND DEBURR ALL SHARP EDGES 0.3mm THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF BENDPAK INC. ANY 5601139 5601863 MATERIAL: HR ASTM A36 OR Q235 GB/T 700 REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.
  • Page 27 (216 to 279 mm), or between Color: Black and White Binding: Saddle Stitched Paper: 100 to 120 gsm (27 to 32 pound), uncoated 2. Vendor Information (Or for Reference) Approved Vendor Vendor Part # Contact # Preferred Vendor OR BENDPAK ENGINEERING APPROVED EQUIVALENT...
