BendPak HD-973P Service Manual

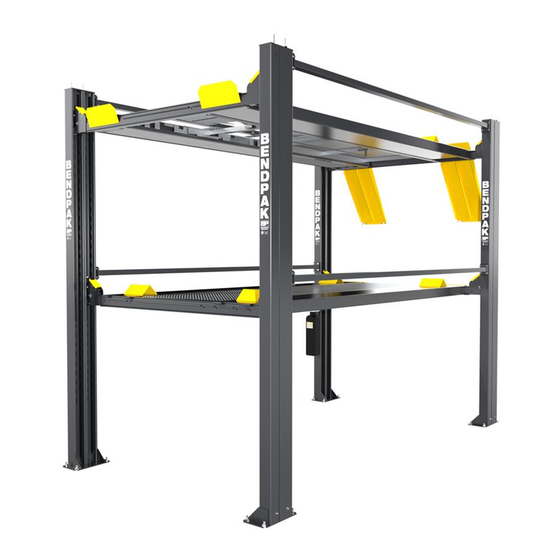

Four post lift
Hide thumbs Also See for HD-973P:

Advertisement

Quick Links

Download this manual
Service Manual
SERVICE PARTS & DIAGRAMS
BENDPAK
HD-973P
PRODUCT SKU
5175238
DRAWING Nº
5260242
CATEGORY
Four Post Lift
REV
Version U
DATE
10.14.2022
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
