CH1AJKIT

Section 2: Radio Module and Harness Preparation

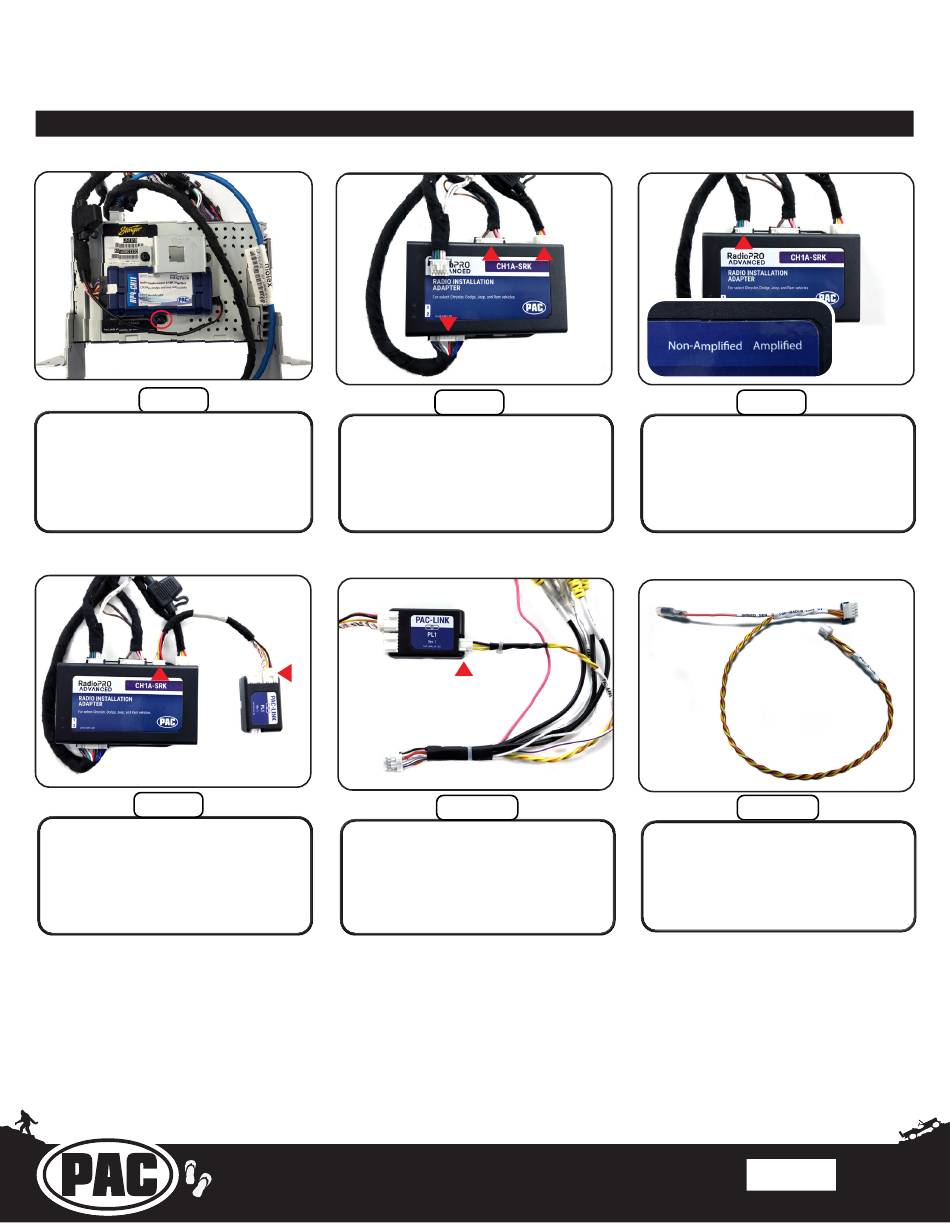

Step 1
Unplug any remaining plugs and
adapters from the HEIGH10 radio
module and set to the side. Remove
the RP4-CH21 interface if attached
to the radio module.
Step 4
Connect one end of the 6" Data
Harness (10P-2-10P-6-HAR) to the
CH1A-SRK Expansion Port and
the other end to either port on the
PAC-LINK (PL1)
®
Pacific Accessory Corporation
Connect the three connectors on
the SRK-CH1A-HAR Main Harness
to the indicated ports on the CH1A-
HEIGH10 10-pin
Multi Camera Harness
If the HEIGH10 10-pin Multi
Camera Harness was previously
installed, connect the 3-pin PAC-
LINK lead on the harness to the
