PAC OS-4 User Manual

Class 2 Class 2
VPW VPW J1850 J1850
Arbitration
1 0 0 0 1 1 1 0 1 1 1 1 0 0 1 0 0 1 1 0 1 1 0 0
The OS-4 is a plug and play interface that allows the replacement of a General Motors GMLAN factory radio. The OS-4 will
maintain operation of the OnStar® system in vehicles with Bose® audio systems, amplifi ed audio systems and also audio
systems without external amplifi ers . The OS-4 has on board switching that allow audio from the OnStar® system to play
through the two front factory speakers. This interface retains all warning chimes, audible turn signal indicators, Bluetooth
and the Vehicle Rear Parking Assist System (if equipped). The factory XM radio tuner can be controlled from the Rear Seat
Entertainment (RSE) Controls. RSE headphone jacks will also remain active and are designed for use with dual zone radios
and the factory installed XM tuner. If the overhead LCD is present the IR headphone system will also be active.
• OnStar® active LED and Ignition on LED.
• New radio will operate with the vehicle RAP (Retained Accessory Power) system.
• Provides +12v RAP circuit, Illumination, Vehicle Speed Sensor (VSS) Output, Parking brake, and Reverse trigger outputs.
• OnStar® Volume control via factory steering wheel audio controls or a push-button switch.
• Safety chime audio level is controlled through the Driver Information Center (DIC).
• RSE Controls will play the aftermarket radios dual zone source or the factory XM tuner if serviced.
• Overhead RSE LCD is usable as well as factory IR headphone system and Rear Auxiliary Input Jacks (use PAC Part # GMRVD).
• Steering wheel radio controls can be retained to control new radio by using the SWI-X, ECL2, JACK or PS.
1. The OS-4 will retain the use of the factory installed XM receiver. Factory RSE Controls must be present for use of this feature.
2. You may use this interface if the vehicle does not have OnStar® but you need to interface with the Bose® amplifi er
3. This interface will work in amplifi ed or non-amplifi ed audio systems.
4. This interface retains the 5.1 audio system in equipped Cadillac vehicles.
5. Built in Smart Mute Circuitry will play OnStar® through the front speakers and allow the RSE audio jacks to continue playing the audio
source selected by the RSE Controls.
The Following General Motors Vehicles using the GMLAN Data Bus
Chevy: Express (08) Equinox (07-08) Suburban (07-09) Tahoe (07-09) Avalanche (07-09) Monte Carlo (06-07) Silverado - not classic (07-09) Impala (06-09)
Transverse (09)
GMC: Acadia (07-09) Yukon Denali (07-09) Yukon (07-09) Sierra - not classic (07-09)
Cadillac: DTS (06-09) Escalade - including ESV and EXT (07-09) SRX (07-09)
Buick: Enclave (08-09) Lucerne (06-09)
Hummer: H2 (08-09)
Pontiac: Torrent (07-09)
Saturn: Outlook (07-09) Vue (08-09)
Suzuki: XL-7 (07-08)

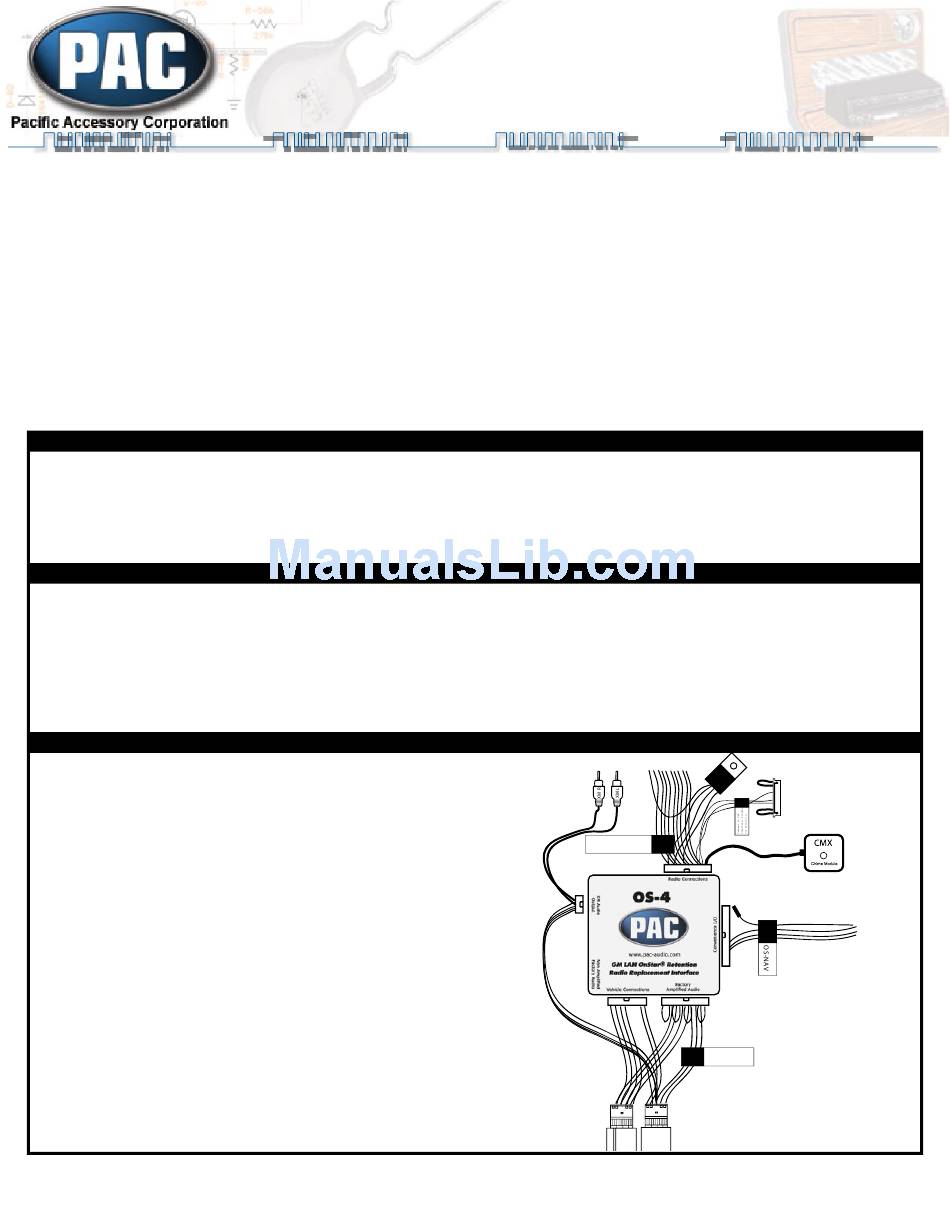

• Aftermarket radio connections are made at the 20-pin OS-RADPWRAUDIO connector.
A detailed description of these wires is on the next page.
• If the vehicle has Rear Seat Audio Controls and the XM tuner is serviced plug the 8 pin
XM Audio output cable into the OS-4. The RCA cables will feed the XM audio into the
aftermarket radios AUX input (if available). The XM RCA cables are not necessary for
Rear Seat Audio but will allow the headunit to play the XM audio through the cabin.
• Factory installed audio options such as Bose, Harman Kardon or Pioneer amplifi ers
will determine the 16-pin OS-GMLAN29 connection. If the vehicle has a factory installed
amplifi er use the Factory Amplifi er Audio location. If a factory installed amplifi er is not
present use the Non-Amplifi ed Factory Audio location.
• The OS-NAV connector has VSS, Reverse and Parking Brake outputs as well as the
OnStar push button volume adjustment input.
• If SWC buttons are present and retained using a radio specifi c SWC interface use the
provided plug. No other connections or splices are necessary.
• The CMX retains all factory warning and safety chimes. If the vehicle chimes when the
radio is removed the CMX is not needed.
• The Mute loop (if not cut) will turn the ACC. output off when an OnStar or Bluetooth call
is made or received. If the aftermarket radio has a mute input cut this loop and connect
the outer brown wire to the mute input.
Pacifi c Accessory Corporation - 1502 S. Santa Fe Street, Santa Ana, CA 92705
techsupport@pac-audio.com • Voice: 866-931-8021 • Fax: 714-835-3233 • www.pac-audio.com
10-06-08
Interface for GMLAN Vehicles With or
Without Factory Amplifi ed Audio Systems
J1850 J1850
EOD EOD CRC CRC
Class 2 Class 2
1 1 1 0 1 0 0 0 0 1 1 0 1 1 0 1 1 1 0 0 1 1 0 0

Supported Vehicles

Installation

OS-4
General Motors OnStar®
Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2
1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 1 1 1 1 1 1 0 1 0 1 0 1 0 1 0 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 1 0 1 0 1 0 1 0 1 0 1 1 0 1 0 1 0 0 0 0
Notes
Upgraded Radio Connections
OS-RADPWRAUDIO
J1850 J1850 J1850 J1850 J1850 J1850 J1850 J1850 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2
1 1 1 1 1 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 1 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 1 1 1 1 1 0 0 1 0 0 1 1 1 0 1 0 0 0
SWC Interface
Connections
Navigation Connections
OS-GMLAN29
Vehicle Connections
Page 1
