CH1AJKIT
Section 4: Radio Unit Installation (cont.)

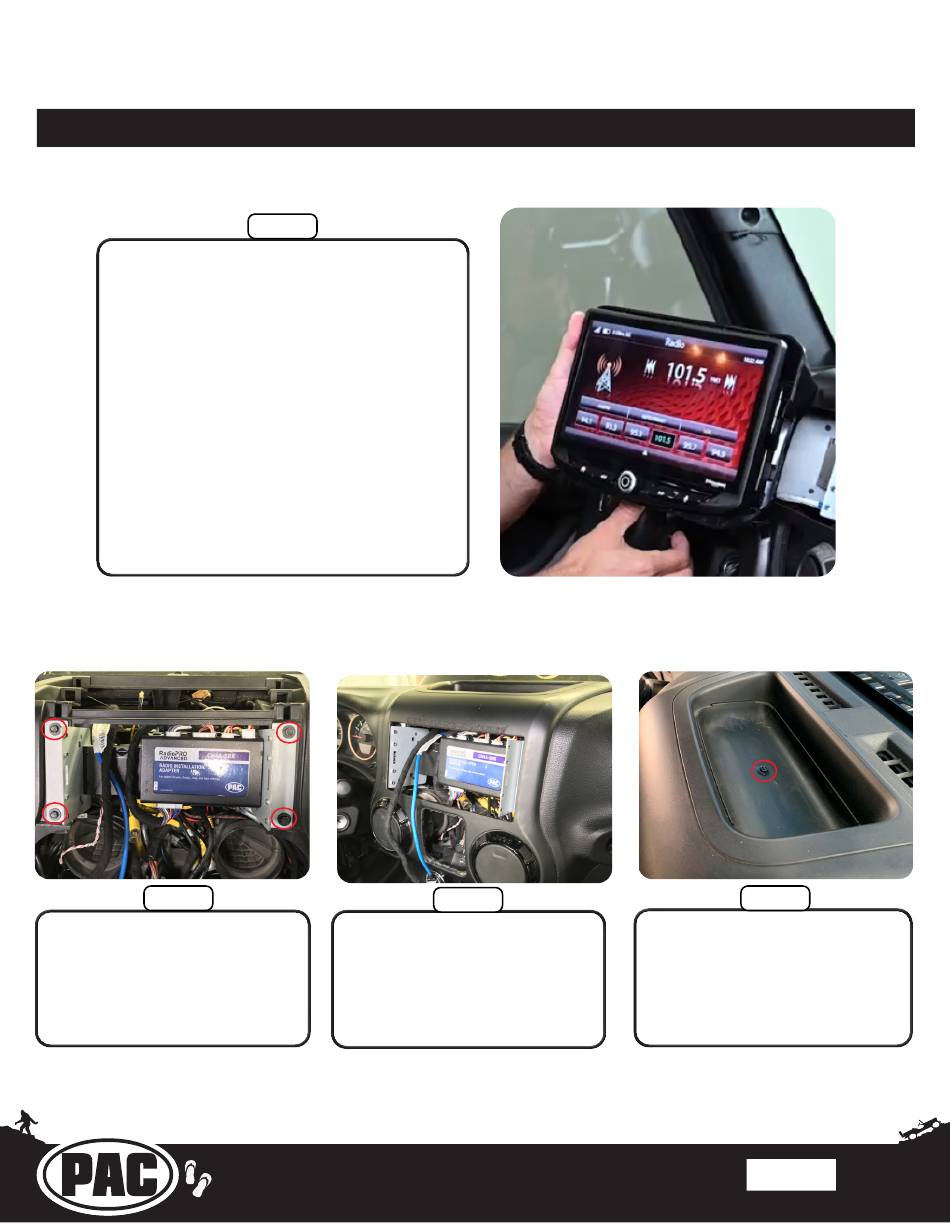

Once the radio display is connected, power up
the radio and check functionality...
Volume, Balance, Fade
AM/FM Reception
Bluetooth*
USB
Apple Carplay
Android Auto
Steering Wheel Controls
Vehicle Info Screens
Camera(s)
*If the External Microphone is not installed, the setting must
be changed from External (Default) to Internal in the Phone
Settings: Main Menu > Phone > Settings
Step 11
Reinstall any remaining 7mm
screws to secure the radio
assembly. Stick the CH1A-SRK
module to the face of the radio
module as shown.
®
Pacific Accessory Corporation
Step 10
Unplug the two display cables from the back of the
display after function test is complete
Lower the steering wheel and
align and reinstall the instrument
cluster / radio panel. Ensure that
all retaining clips are fully seated.
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
AAMP Global is not affiliated with FCA US LLC. Jeep® is a registered trademark of FCA US LLC. The terms
OEM, Jeep®, Wrangler®, and Gladiator® all terms are used strictly for identification purposes only. It is not
implied that any part listed is a product of, or approved by, Fiat Chrysler Automobiles.
Step 12
Vehicle Integration Upgrade Kit for
SR-JK11H / Stinger HEIGH10
2011-2018 Jeep Wrangler JK
®
Step 13
Reinstall the factory 7mm screw
in the upper storage tray. If using
the clip-on nut, use the #10-24
X ½" Phillips machine screw to
secure.
Rev: V1
Date:102622
®
