PAC SRK-JW18HX Manual

SRK-JW18HX
Introduction and Features
The SRK-JW18HX is a complete radio replacement kit with integrated climate control retention for select Jeep Wrangler
JL and Jeep Gladiator JT vehicles. All modules and cables are included to retain important features of the factory
system, including: steering wheel-mounted radio controls, factory reverse camera, USB ports, and AM/FM reception.
Data integration with the vehicle and the Stinger HORIZON10™ radio (sold separately) allows for the retention and
addition of the following features: vehicle performance gauges and information, climate controls, vehicle settings,
factory amplifier control, and forced camera activation. Simplified installation and setup menus allow direct programming
of camera triggers, steering wheel controls, and other settings of the radio and CH4A-JW18 interface. See Important
Notes (next section) for additional information.
Plug & Play wiring harnesses and cables allow for quick and easy installation without the need to cut or splice any
wiring.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process
1. D oes Not Retain:
Cluster Display Features
• Compass (when equipped with 7" or 8.4" screen)
• Clock
• Phone pop-ups
• Navigation pop-ups
Factory Amplifier Features
• Speed Controlled Volume
2. When connected properly, the USB port inside the center console will function for Apple Carplay/Android Auto, and all
other USB ports will be used for USB thumb drives and charging only.
3. Ensure that the CH4A-JW18, PL1, and RPA-HD1 modules have been updated to the latest version of firmware
before installing into the vehicle. Refer to the Updating Firmware section at the end of the manual for firmware update
instructions.
4. When connecting an HDMI streaming device to the RPA-HD1, use an HDMI extension cable to position it away from the
module to ensure proper functionality. We recommend placing the HDMI device in the glove box. Failure to follow the
directions may result in module malfunction.

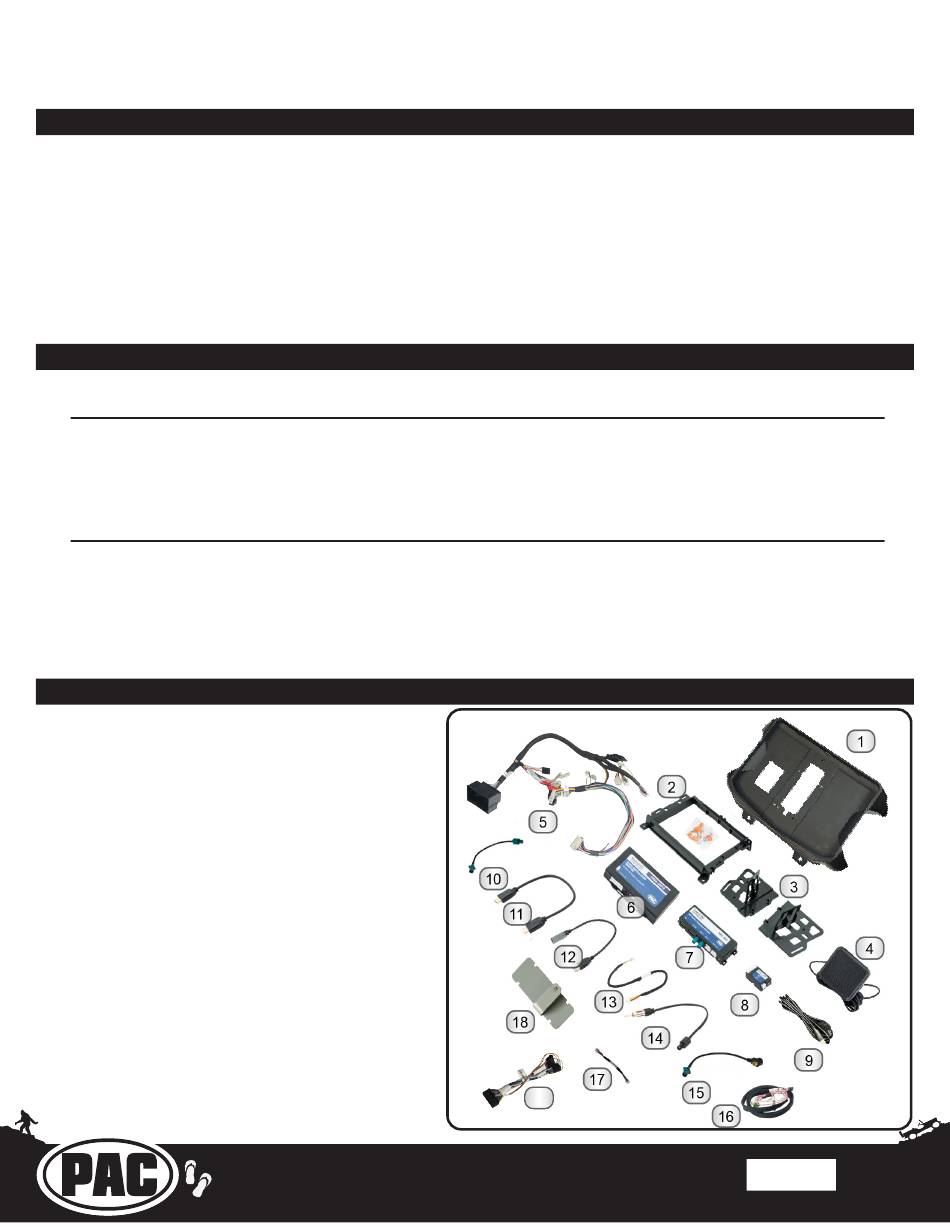

Tools Needed; Included Components
Tools needed for installation: 7mm socket, 10mm socket, ratchet,
ratchet extension, T20 torx screwdriver, T25 torx screwdriver,
pick tool or small flathead screwdriver, plastic panel removal tool
(example - PAC part number TL-PRY2).
1. HORIZON10™ Display Mounting Panel (SE-JW18H)
2. Main Bracket, Panel Clips and Mounting Screws
3. Radio Module Mounting Brackets (L&R)
4. Chime Speaker (P-RPA-SPK)
5. Main Wiring Harness (SRK-JW18-HAR)
6. Radio Replacement Interface Module (CH4A-JW18)
7. HD Camera Retention Module (RPA-HD1)
8. PAC-LINK Interface Module (PL1)
9. 7' USB Port Retention Adapter (USBC-UN2)
10. 15" Factory Camera Extension Harness (FAK-EXT-15)
11. 20" HDMI Cable (HDMI-20-2M)
12. 8" USB Hub Retention Adapter (USB-UN1)
13. 20" Data Harness (10P-2-10P-20)
14. AM / FM Antenna Adapter (BAA22)
15. Satellite Antenna Adapter (SAT-01)
16. CAN-Bus Connection Harness (MQS4PT-36)
17. 6" Data Harness (10P-2-10P-6)
18. RPA-HD1 Mounting Bracket (
19. Radio Harness Adapter (SR-SRK-ADAPT-IX2XX)
terms OEM, Jeep®, Wrangler®, and Gladiator® all terms are used strictly for identification purposes only. It is
Pacific Accessory Corporation
prior to beginning the installation.
SE-JW18H_MODULE BRACKET)
Stinger Solutions is not affiliated with FCA US LLC. Jeep® is a registered trademark of FCA US LLC. The
not implied that any part listed is a product of, or approved by, Fiat Chrysler Automobiles.
Stinger HORIZON10™ Radio Replacement Kit
for Jeep Wrangler JL and Jeep Gladiator JT Vehicles
Uconnect Features
• Uconnect Access Remote Start / Lock / Unlock
• SOS / Assist
• Vehicle Location Service
• WiFi-Hotspot
SiriusXM Guardian Services
• SiriusXM Radio
19
© 2024 Stinger
Rev: v1
Page 1
Date:071724
