PAC CH1AJKIT Manual page 5

CH1AJKIT
Section 1: Disassembly (cont.)

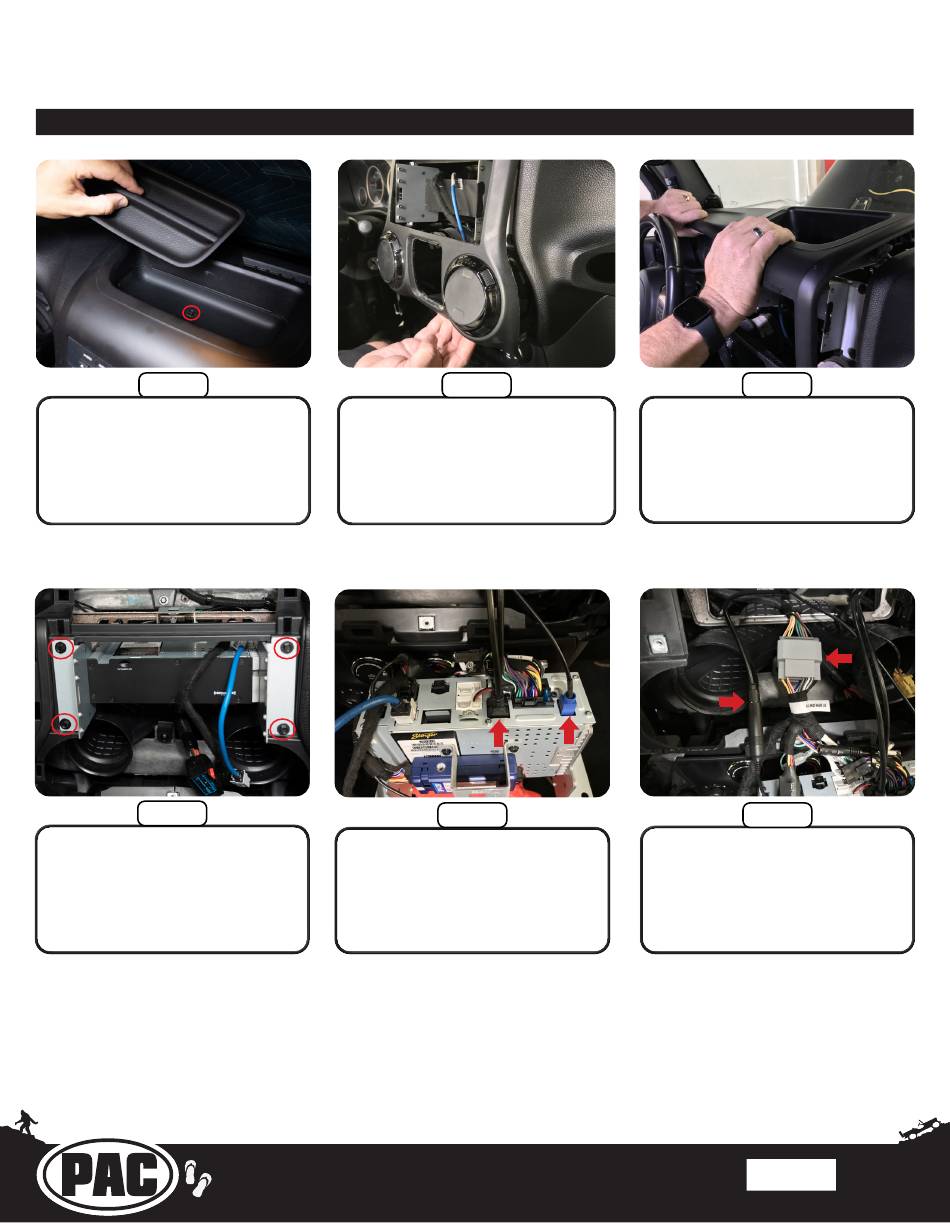

Step 12
Remove the rubber mat from
the storage tray above the radio
and remove the 7mm screw
underneath.
Step 15
Remove the four 7mm screws
securing the radio module and
pull the radio from the sub-dash.
NOTE: Unplug any additional components (cameras, amplifier, satellite radio etc.) and
®
Pacific Accessory Corporation
Starting below the radio, reach into
the window switch opening and
firmly grasp the lower bezel and
pull the bezel to release the lower
Unplug in the two USB cables and
the GPS antenna from the radio
remove the radio module.
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
AAMP Global is not affiliated with FCA US LLC. Jeep® is a registered trademark of FCA US LLC. The terms
OEM, Jeep®, Wrangler®, and Gladiator® all terms are used strictly for identification purposes only. It is not
implied that any part listed is a product of, or approved by, Fiat Chrysler Automobiles.
Step 13
retaining clips.
Step 16
module.
Vehicle Integration Upgrade Kit for
SR-JK11H / Stinger HEIGH10
2011-2018 Jeep Wrangler JK
®
Step 14
Using the storage tray and area
over the gauges, pull the top edge
of the panel to release the upper
retaining clips. Lower the steering
wheel and remove the panel.
Step 17
Disconnect the AM/FM antenna
adapter. Unplug the vehicle's
gray 22-pin radio plug from the
main harness.
Rev: V1
Date:102622
®
Page 5
