SIMPLIHOME brooklyn + max WyndenHall AXCBAN-15 Manual

Mid century medium storage cabinet
Hide thumbs

Advertisement

Table of Contents

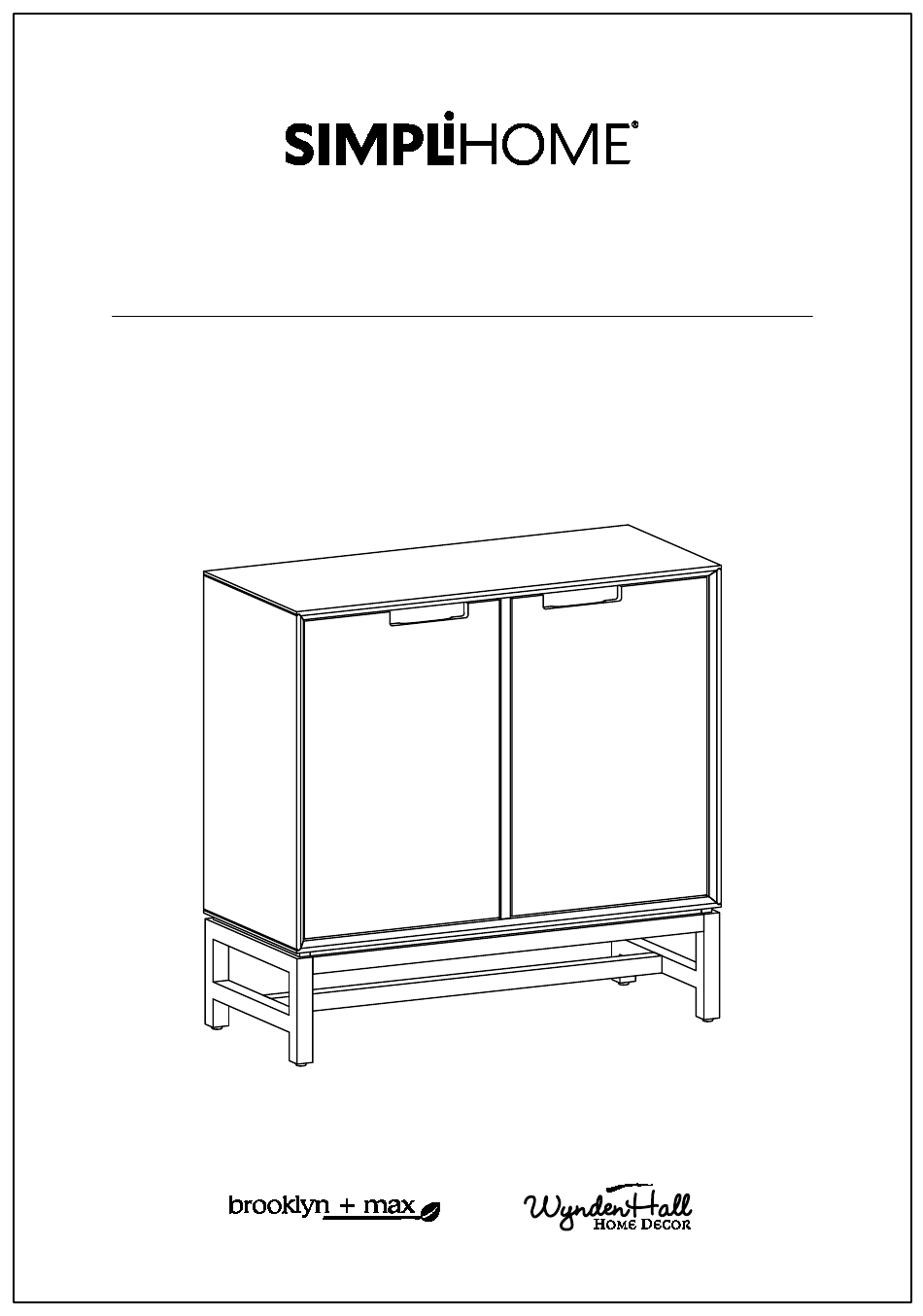

Banting / Devlin / Argyle
Mid Century Medium Storage Cabinet
Model # AXCBAN-15
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCBAN-15 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCBAN-15

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCBAN-15

  • Page 1 Banting / Devlin / Argyle Mid Century Medium Storage Cabinet Model # AXCBAN-15...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 7: Bottom Shelf

    Pre-Assembly Information Model # AXCBAN-15 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF LEFT BACK PANEL QTY 1 QTY 1 QTY 1 Warning Label RIGHT BACK PANEL LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 SHELF...
  • Page 8 Pre-Assembly Information Model # AXCBAN-15 Hardware Description WOOD DOWEL ALLEN KEY SCREW ALLEN KEY BOLT M6 X 30mm ALLEN KEY Ø8 X 30mm M6 x 30 mm QTY 6 QTY 10 QTY 1 QTY 12 PHILLIPS SCREW LOCK WASHER WASHER ROUND HEAD ALLEN KEY BOLT Ø10 / Ø6.5 x 1.5 mm...
  • Page 9 Components - Key Diagram Model # AXCBAN-15...
  • Page 10 Assembly Model # AXCBAN-15 Step 1 1. Insert Dowels 1 into guide holes on Sides BL , BR and Divider C . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/3 length of Dowels should be exposed.
  • Page 11 Assembly Model # AXCBAN-15 Step 2 1. Align Wood Dowels with guide holes and attach Divider C to Bottom Shelf D . 2. Use three Allen Key Screws 2 to attach Divider C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 12 Assembly Model # AXCBAN-15 Step 3 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Shelf D . 2. Use three Allen Key Bolts 4 to attach each Side BL , BR through guide holes. 3.
  • Page 13 Assembly Model # AXCBAN-15 Step 4 1. Align Wood Dowels with guide holes on Top A and attach Sides BL , BR to Top A . 2. Use three Allen Bolts 4 to attach each Sides BL , BR through guide holes to Top A . 3.
  • Page 14 Assembly Model # AXCBAN-15 Step 5 1. Align Parts I , J to Leg H . 2. Use one Bolt 5 , one Lock Washer 6 and one Washer 7 to secure each part I , J with H . 3.
  • Page 15 Assembly Model # AXCBAN-15 Step 6 1. Repeat Step 5 for second Leg H . 2. Use Allen Key 3 to tighten Bolts.
  • Page 16 Assembly Model # AXCBAN-15 Step 7 1. Align iron dowels with guide holes on wooden frame and attach the assembled metal frame to bottom wooden frame. 2. Use four Bolts 5 , four Lock Washers 6 and four Washers 7 to secure metal frame and wooden frame . 3.
  • Page 17 Assembly Model # AXCBAN-15 Step 8 1. Use six Phillips Screws Round Head 8 and four Washers 7 to secure wooden frame and metal frame. 2. Use Phillips screwdriver to snugly tighten Screws.
  • Page 18 Assembly Model # AXCBAN-15 Step 9 Note: Warning Label 1. Attach the Back Panels EL , ER to back frame using Phillips Screws Round Head 8 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 19 Assembly Model # AXCBAN-15 Step 10 1. Attach Adjustable Hinges 11 to Doors FL , FR . using Phillips Screws 12 into pre-drilled holes on Doors FL , FR . 2. Attach Adjustable Hinges 11 on Doors EL , ER to Sides BL , BR using Phillips Screws 12 into pre-drilled holes on Sides BL , BR .
  • Page 20 Assembly Model # AXCBAN-15 Step 11 NOTE: The screwdriver is not included in the hardware pack. 2. Attach Magnets 9 using Phillips Screws 10 into pre-drilled holes on Divider C . 3. Use Phillips screwdriver to snugly tighten screw. Note: Levelers on bottom of legs can be adjusted if floor is uneven.

  • Page 21: Important Note

    Assembly Model # AXCBAN-15 Step 12 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 22 Assembly Model # AXCBAN-15 Step 13 shelf level 1 shelf support shelf level 2 anti - tipping shelf level 3 1. Use four Shelf Supports 13 for each Shelf G in desired location. 2. Two Shelf Supports 13 may be used on back top of each Shelf G as a tipping restraint.
  • Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
  • Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
