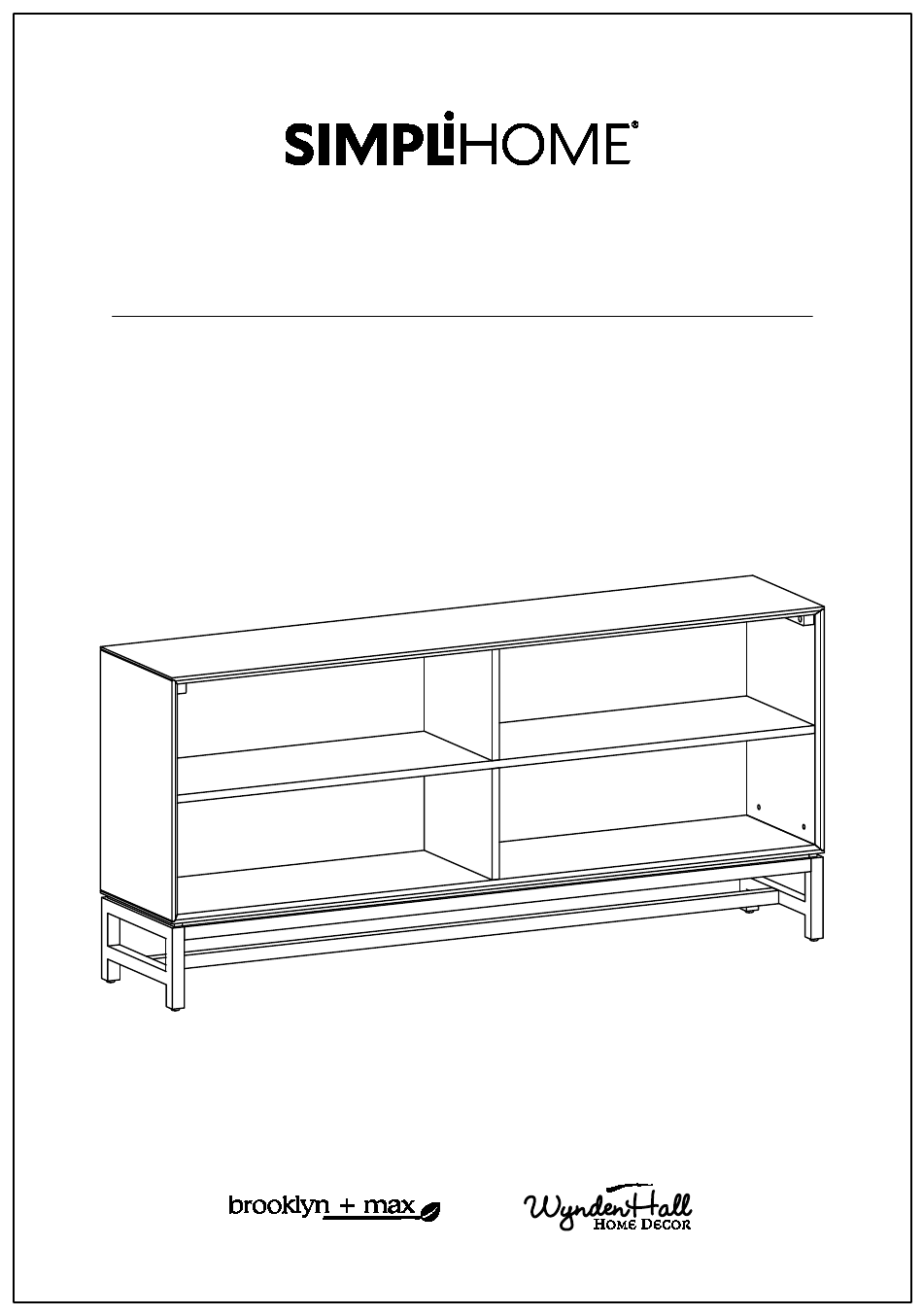

- Page 1 Banting / Devlin / Argyle Mid Century Low Wide Bookcase Model # AXCBAN-12LOW...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCBAN-12LOW Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER CABINET SHELF BOTTOM SHELF QTY 1 QTY 2 QTY 1 Warning Label TOP BACK PANEL BOTTOM BACK PANEL LEG (L&R Same) QTY 1 QTY 1 QTY 2 LEG LOWER CONNECTOR...
- Page 8 Pre-Assembly Information Model # AXCBAN-12LOW Hardware Description WOOD DOWEL ALLEN KEY SCREW Ø8 X 30mm M6 X 30mm ALLEN KEY QTY 2 QTY 4 QTY 1 ALLEN KEY BOLT & CROSS NUT ALLEN KEY BOLT ALLEN KEY BOLT M6 X 50mm M6 x 30 mm M6 x 15 mm QTY 4 SETS...
- Page 9 Components - Key Diagram Model # AXCBAN-12LOW...
- Page 10 Assembly Model # AXCBAN-12LOW Step 1 1. Attach Cam Lock Pins 10 into pre-drilled holes at Top A , Cabinet Shelf C and Sides BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3.
- Page 11 Assembly Model # AXCBAN-12LOW Step 2 1. Align Wood Dowels with guide holes on Cabinet Shelf C and attach Divider D to Cabinet Shelf C . 2. Use two Allen Key Screws 2 to attach Cabinet Shelf C through guide holes from 3.
- Page 12 Assembly Model # AXCBAN-12LOW Step 3 1. Align Cam Lock Pins with guide holes on Divider D and attach Divider D to Cabinet Shelf C . 2. Insert two Cam Locks 10 into guide holes on Divider D . 3. Use Phillips screwdriver to secure Cam Locks.
- Page 13 Assembly Model # AXCBAN-12LOW Step 4 1. Align Cam Lock Pins with guide holes on Cabinet Shelf C and attach Sides BL , BR to Cabinet Shelf C . 2. Insert four Cam Locks 10 into guide holes on Cabinet Shelf C . 3.
- Page 14 Assembly Model # AXCBAN-12LOW Step 5 1. Align Wood Dowels with guide holes and attach Divider D to Bottom Shelf E . 2. Insert Cross Nuts 4 into guide holes in Sides BL , BR with the slot facing out. Use a flathead Screwdriver to turn it to align with the Bolts 4 .
- Page 15 Assembly Model # AXCBAN-12LOW Step 6 1. Align Wood Dowels and Cam Lock Pins with guide holes on Top A and attach Top A to Sides BL , BR and Divider D . 2. Use six Allen Key Bolts 5 to attach Sides BL , BR through guide holes from Sides BL , BR to Top A .
- Page 16 Assembly Model # AXCBAN-12LOW Step 7 1. Align Parts I , J to Leg H . 2. Use one Bolt 6 , one Lock Washer 7 and one Washer 8 to secure each part I , J with H . 3.
- Page 17 Assembly Model # AXCBAN-12LOW Step 8 1. Repeat Step 5 for second Leg H . 2. Use Allen Key 3 to tighten Bolts.
- Page 18 Assembly Model # AXCBAN-12LOW Step 9 1. Align iron dowels with guide holes on wooden frame and attach the assembled metal frame to bottom wooden frame . 2. Use four Bolts 6 , four Lock Washers 7 and four Washers 8 to secure metal frame and wooden frame .
- Page 19 Assembly Model # AXCBAN-12LOW Step 10 1. Use six Phillips Screws Round Head 9 and four Washers 8 to secure wooden frame and metal frame. 2. Use Phillips screwdriver to snugly tighten Screws.
- Page 20 Assembly Model # AXCBAN-12LOW Note: Step 11 Warning Label 1. Attach the Back Panels F , G to back frame using Phillips Screws Round Head 9 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 21 Assembly Model # AXCBAN-12LOW Step 12 1. Insert four Plastic Caps 11 into holes Cam Locks on Dividers D . Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 13 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
