MiLAN MIL-C2113 Series Installation Manual

Regulatory Approval

•
FCC Class A
• UL 1950
CSA C22.2 Number 950
•
• EN60950
CE
•
- EN55022 Class B
- EN50082-1

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the commission of the European Community Compliance with these directives
implies conformity to the following European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
•
EN50082-1 (IEC801-2, -3, -4) - Electromagnetic Immunity
•
• EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and
all components thereof, will be free from defects in material and/or workmanship for a period of
five years from the original factory shipment date. Any warranty hereunder is extended to the
original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN T echnology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the performance
of the product delivered hereunder. MiLAN Technology will in no case cover damages arising
out of the product being used in a negligent fashion or manner.

Trademarks

© 2000 MiLAN, the MiLAN logo and MiLAN Technology are either trademarks or registered
trademarks of Milan , Inc. in the United States and/or other countries. All other
trademarks are the property of their respective holders.
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
• Product serial number and revision
• Date of purchase
• Vendor or place of purchase
You can reach MiLAN T echnology technical support at:
E-mail: support@milan.com
Telephone: +1.408.744.2751
Fax: +1.408.744.2771
MiLAN Technology
329 Moffett park Dr
unnyvale, CA 94089-1138
nited States of America
elephone: +1.408.744.2775
ax: +1.408.744.2793
tp://www.milan.com
fo@milan.com
ight 2005 MiLAN Technology Printed in the USA
.
P/N: 90000210 Rev. C
SC - Type
Connector

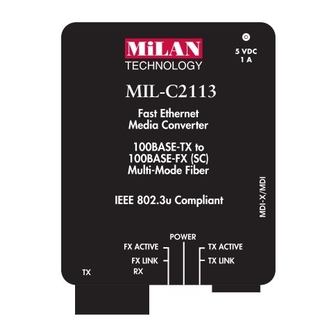

The MIL-C2113 comes equipped with SC-type connectors and supports Fast
Ethernet in both half and full-duplex mode. For network budget constraint,
the MIL-C2113 uses 150 nanoseconds (approximately 30 meters of cable)
during conversion in each direction.
To maximize the fiber cable distance, use one meter of CA T 5 UTP cable
when connecting directly to a node (subject to fiber budget of 16dBm and
collision domain restrictions). In full-duplex environments, use up to 100m
of CAT 5 UTP and: 2Km of multi-mode optical fiber for MIL-C2113;
15Km of single-mode optical fiber for MIL-C2113-15;
40Km of single-mode optical fiber for MIL-C2113-40;
70Km of single-mode optical fiber for MIL-C2113-70;
100Km of single-mode optical fiber for MIL-C2113-100.
Installation Guide: MIL-C2113 Series
LEDs
RJ-45
Connector
