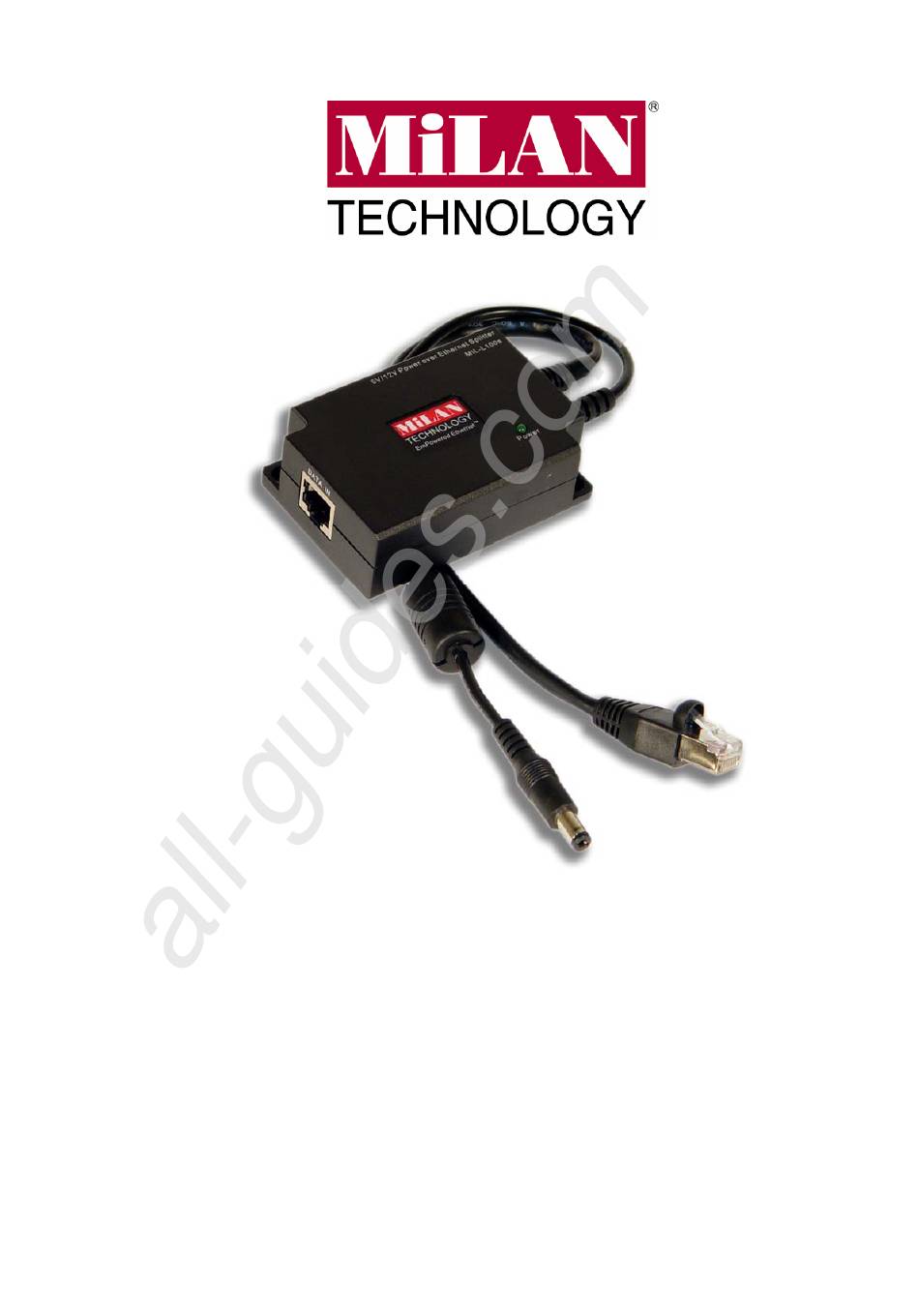

- Page 1 All manuals and user guides at all-guides.com MIL-L100s Power over Ethernet Dual-Voltage Splitter USER GUIDE...
- Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents 1. Introduction........... 1 ....................2 EATURES ................2 ACKAGE ONTENTS 2. Hardware Description ........3 3. Installation............. 5 4. Technical Specification ....... 6... -
Page 4: Introduction
All manuals and user guides at all-guides.com 1. Introduction Thank you for purchasing MiLAN Technology’s MIL-100i Single-Port Power over Ethernet Dual-Voltage Splitter. This PoE Splitter provides data and power to non 802.3af compliant devices. It splits data and power out from a single cat5 cable to Ethernet and DC 5V/2A or 12V/1A power to a network device that is not compliant with IEEE802.3af standard. -
Page 5: Features
All manuals and user guides at all-guides.com Features Power Over Ethernet Dual-Voltage Splitter IEEE802.3af compliance Short circuit protection Delivering power and data to equipment Plug-and-Play Light weight and compact size Compatible with Wireless LAN, Bluetooth AP, Web Camera and IP Telephones…etc. -
Page 6: Hardware Description

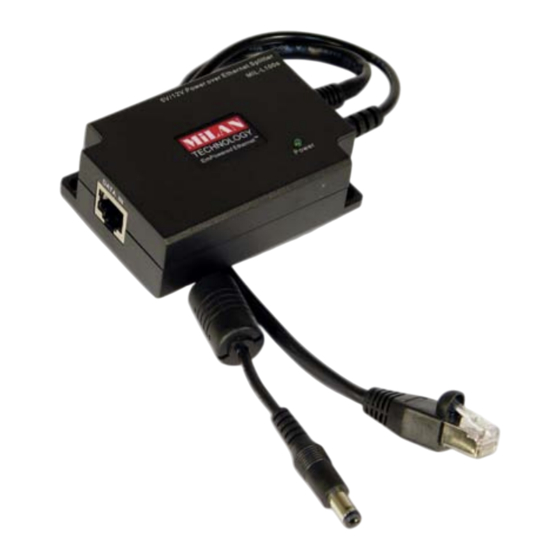

All manuals and user guides at all-guides.com 2. Hardware Description The MIL-100s Power over Ethernet Splitter has three connection ports, one LED indicator, and one DIP switch for adjusting voltage. Below is a description of the three connections. Data In port: An RJ-45 Ethernet interface port for data into the PoE Splitter. - Page 7 All manuals and user guides at all-guides.com LED indicator: One Power LED indictor for the system unit. It is located on the topside of the Power over Ethernet Splitter. Figure 2-3. System Power LED Indicator DIPswitch: It is used for switching the voltage to PD. It provides two voltage values –...
-
Page 8: Installation
All manuals and user guides at all-guides.com 3. Installation To install the MIL-L100s Power over Ethernet Splitter, please follow the steps below: 0. Using RJ-45 cable that is Data in port on the Power over Ethernet Splitter to connect with the PoE Switch/HUB (which is Data out port). If the Switch/HUB does not support PoE function, you need to install a PoE injector between Switch/HUB and Power over Ethernet Splitter. -
Page 9: Technical Specification
All manuals and user guides at all-guides.com 4. Technical Specification The following table provides the technical specification of the Power over Ethernet. IEEE802.3 10BASE-T Standard IEEE802.3u 100BASE-TX IEEE802.3af Power over Ethernet Power jack 5.5 x 2.0mm diameter DIP 12V: Output voltage 12V DIP 5V: Output voltage 5V(Default) Data and power in: 1 x RJ-45.Data pin 1,2,3,6 Power pin: 4,5(V+), 7,8(V-) and 1,2(V+), 3,6(V-) - Page 10 All manuals and user guides at all-guides.com 90000431 Rev A...
