Summary of Contents for MiLAN MIL-4750

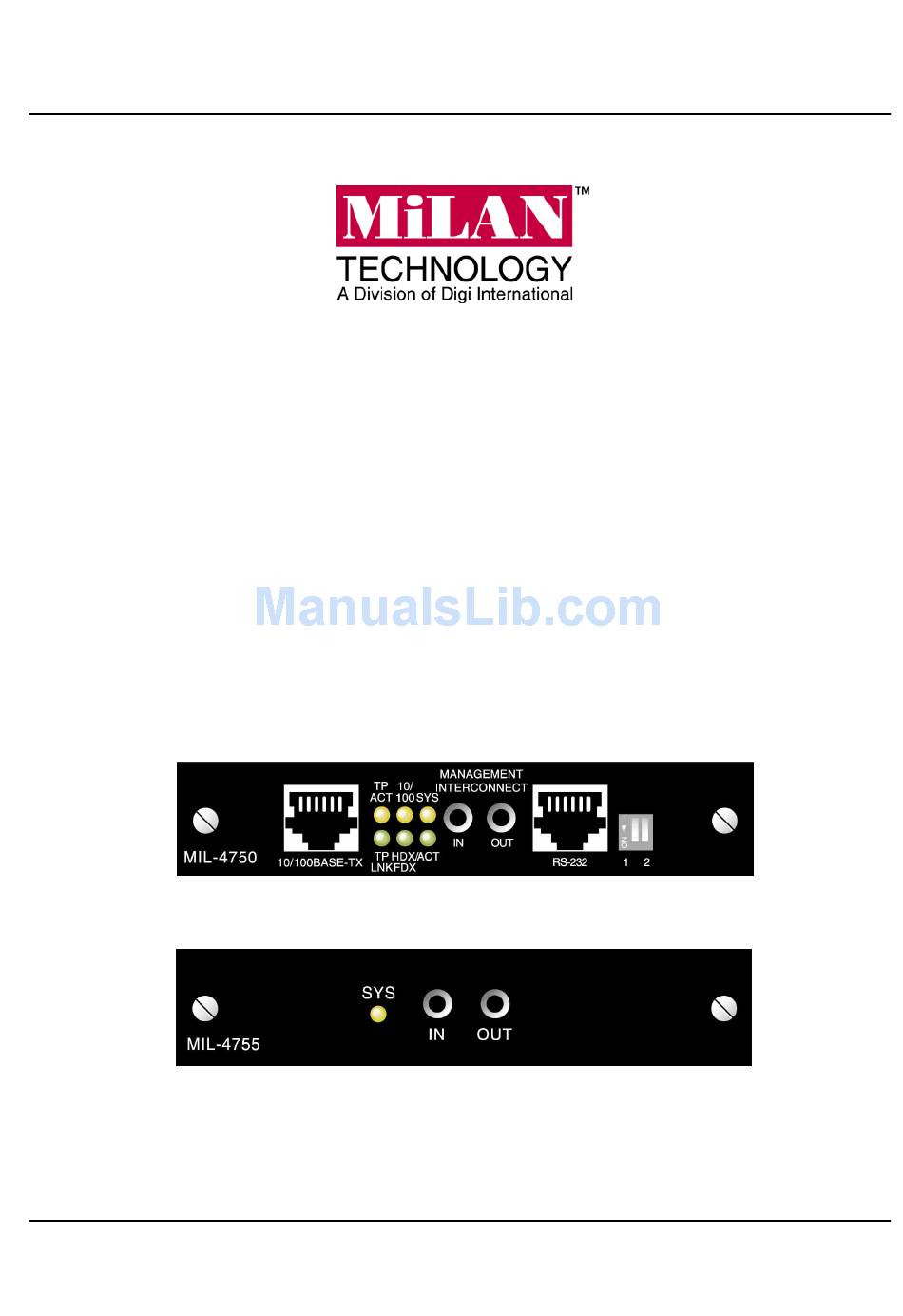

- Page 1 MIL-4750 and MIL-4755 Master/Slave Modules User’s Guide with FastManage™ -Specific Information Sunnyvale, California Minnetonka, Minnesota...
- Page 2 Technology makes no express or implied warranties including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose, except as expressly set forth in this warranty. In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Overview of the Master/Slave Modules ... MIL-4750 Master Module ... MIL-4755 Slave Module ... Features ... Common Features for Both Modules... Features of the MIL-4750 Master Module... Utilities ... The Next Step ... Chapter 2: Installation Installation Requirements ... Installation ... - Page 4 Appendix B: Technical Support Services World Wide Web Server ... Internet FTP Server ... Contacting Technical Support... Expediting Technical Support... RMA Procedures... Doc #:90000225 Rev. A...
-
Page 5: Preface
P re face About this Manual This guide covers both the MIL-4750 and the MIL-4755 Master/Slave modules. These modules were designed to be installed into MiLAN’s Media Conversion System. The terms “Master/Slave module” and “module” are used throughout this document to describe these devices. This manual assumes that you are familiar with the tasks of a system administrator. -
Page 6: Contents Of This Document
• Appendix B: Technical support information Package Contents • MIL-4750 Master or MIL-4755 Slave module • RS-422 cable • LAN Products CD-ROM (MIL-4750 Master module only) • MIL-4750/MIL-4755 Master/Slave Modules User’s Guide, with FastManage-specific Information. • Warranty card Notation Conventions This document has certain notation conventions that make it easier to follow instructions and examples. -
Page 7: Chapter 1: Introduction

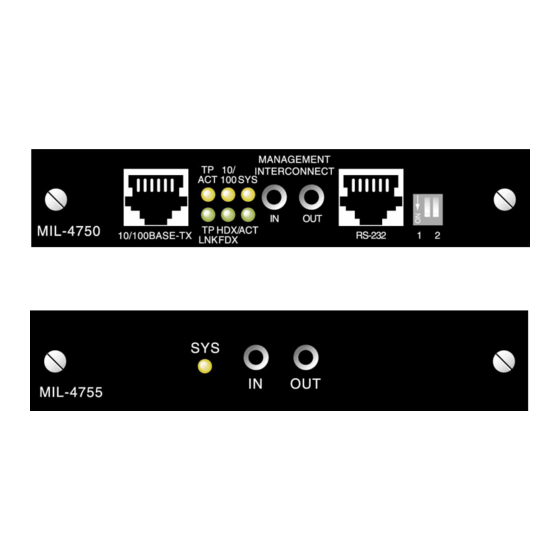

Chapter 1 : In tro d uc tio n Chapter 1 gives a description of the MIL-4750 and MIL-4755 Master/Slave modules. 1.1 Overview of the Master/Slave Modules 1.1.1 MIL-4750 Master Module The MIL-4750 Master module is designed to provide two-way communication between a host workstation and MiLAN’s... -
Page 8: Features
Chapter 1 1.2 Features One MIL-4750 Master module can support (in a daisy-chain configuration via the serial RS-422 interface) up to four MIL- 4755 Slave modules. Definition of daisy-chain: "out" port of 4750 to "in" port of 4755. Last 4755 "out" port to "in" port of 4750. -
Page 9: Chapter 2: Installation
• RS-232 Serial cabling (for out-of-band management) • Female DB9 connector to RJ45. 2.2 Installation Do the following to install a MIL-4750 Master or MIL-4755 Slave into the rear of the MIL-9200X Media Conversion System: 1. For the MIL-4750, make any configuration changes to the module (i.e., jumper settings). -
Page 10: Dip Switch Settings
Note: Do not plug a phone cable (RJ-11) into the RS-232 and/or RJ-45 connectors. 2.3 DIP Switch Settings On the front panel of the MIL-4750 module is a two-position DIP switch. Use Table 2-1 to configure this DIP switch. Down... -
Page 11: Chapter 3: Fastmanage For The Media Conversion System
Chapt er 3 : Fa s tMa nag e for the Med ia Conversion S ys te m Chapter 3 discusses FastManage-specific software as it applies to the media conversion system, including the MIL-4750 Master module. This chapter does not have detailed FastManage instructions (refer to the FastManage User’s Guide section of the LAN Products CD-ROM). - Page 12 “stack” of device(s) (Figure 3-1). Conversion System Mgr. icon. to manage. sixteen devices may be displayed (Figure 3-1). Figure 3-1. Stack Device Graphical Icon particular unit. Figure 3-2 may appear (depending on the device that was selected): MIL-4750/MIL-4755 Master/Slave Modules...
-
Page 13: Hot Spots And System Information
Double-click on a module to launch it. Figure 3-3 may appear (depending on the module selected). Note: MiLAN offers many different modules to configure, including the MIL-4750 (shown in Figure 3-3). All modules, except the MIL-4755 slave module, have hot spots where the user can gain information. -
Page 14: Configure Pull-Down Menu
There are many different options available from the pull-down menus, including IP, IPX, and NetBIOS configurations. Refer to the FastManage User’s Guide section of the LAN Products CD-ROM for more information on these options. Figure 3-4. Configuration Pull-down Menu MIL-4750/MIL-4755 Master/Slave Modules... -
Page 15: Appendix A: Specifications
Appendix A: Specifications A.1 Hardware Features for the MIL-4750 • CPU: An 80186 processor, with a 25 MHz clock • Memory: 256 RAM • Flash: Flash devices are 29F040 @ 90 ns. Each device is 4 Mbps and arranged in 2 256k 8 format •... -
Page 16: Connectors
The power consists of +5VDC +/-10% @10A. Signal PIN Number DTR/RTS 9 (for DB9) Minimum +5° C 5° C -25° C MIL-4750/MIL-4755 Master/Slave Modules Signal RTS/DTR Maximum 40° C 12,000 ft. (at 40° C) 50° C 70° C... -
Page 17: Appendix B: Technical Support Services
Our address is: B.2 Internet FTP Server MiLAN has set up an anonymous FTP server for those with access to the internet. The address is ftp.milan.com. Drivers and installation tips are located in the /pub/ rackmount directory. -
Page 18: Rma Procedures
• Note any and all error messages • Be specific about the problem(s) B.5 RMA Procedures To return a unit to MiLAN for repair: 1. Call technical support at 408/744-2751 2. Technical support engineers will work with users to find the problem. - Page 19 FastManage 3-1 FastManage User’s Guide 3-1, 3-4 Features 1-2 Flash device A-1 ftp.milan.com B-1 Hardware features A-1 Hot spots 3-3 http:// www.milan.com B-1 Installation 2-1, 2-2 Internet access B-1 Internet FTP server B-1 IP configuration 3-4 IPX configuration 3-4 LEDs A-2...
- Page 20 Media conversion system mgr. 3-1 MIL-4750 P-1, 1-1, 2-2 MIL-4755 P-1, 1-1 NetBIOS configuration 3-4 Power supply A-6 Return materials authorization (RMA) B-2 RJ-45 1-2 RS-232 serial 1-2, 2-1 SNMP 3-1 Hardware features A-1 www.milan.com B-1 System LEDs A-1 Technical support B-1 Traps 3-3 Doc #:90000225 Rev.
- Page 22 1299 Orleans Drive Sunnyvale, CA 94089 Part Number: 90000225 Rev. A Printed in the USA...
