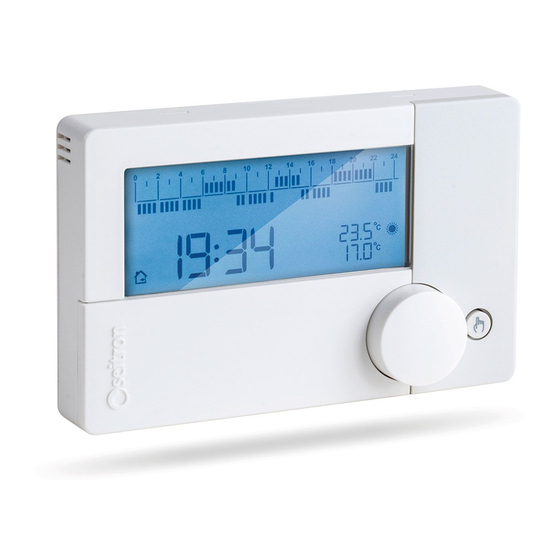

Daily/weekly wireless programmable thermostat
Hide thumbs Also See for Freetime Evo Radio:
Table of Contents

Advertisement

Quick Links

Download this manual

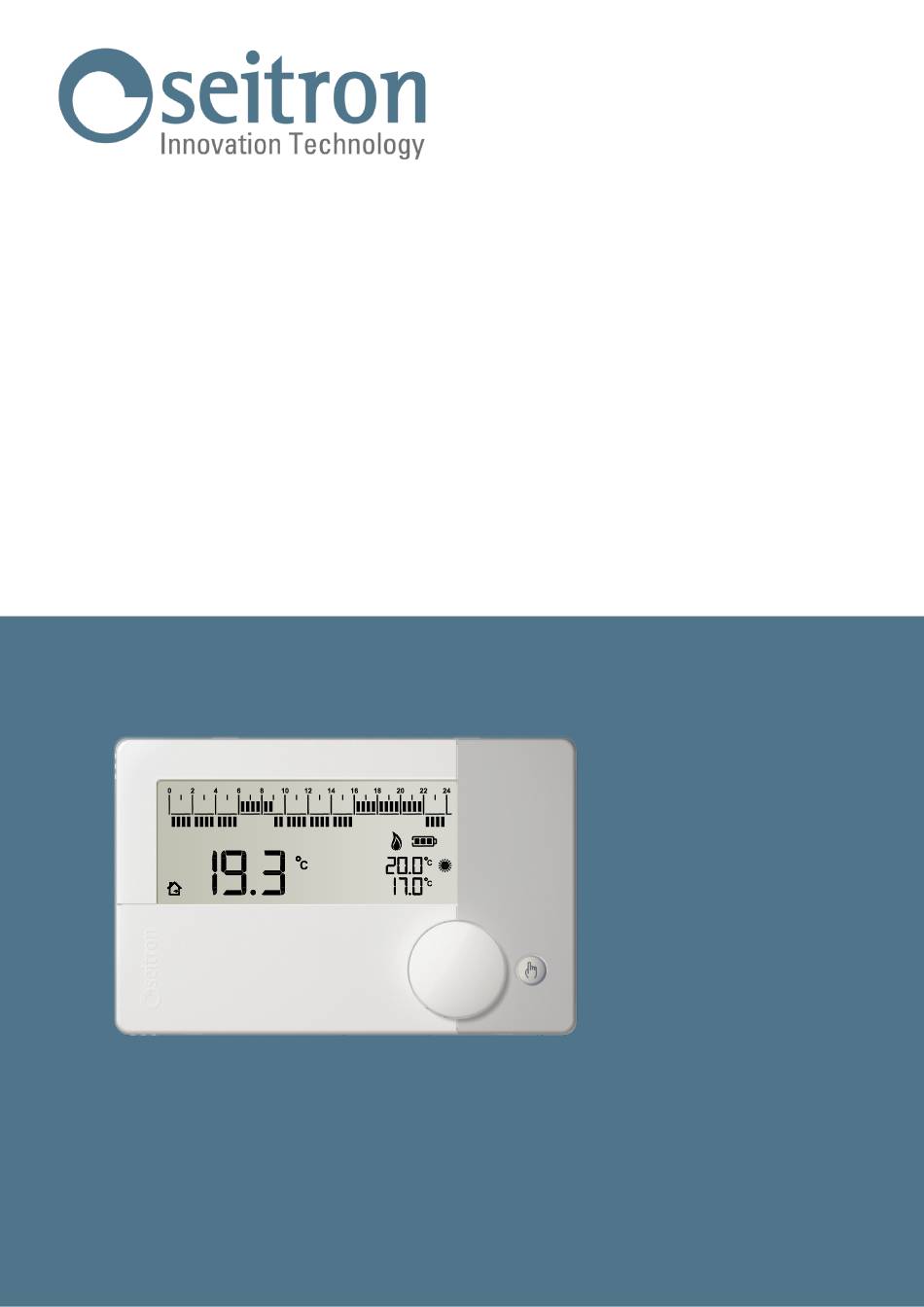

U S E R M A N U A L
Freetime Evo Radio
Daily/Weekly wireless programmable thermostat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freetime Evo Radio and is the answer not in the manual?

Questions and answers

Related Manuals for Seitron Freetime Evo Radio

Summary of Contents for Seitron Freetime Evo Radio

  • Page 1 U S E R M A N U A L Freetime Evo Radio Daily/Weekly wireless programmable thermostat...
  • Page 3 INDEX GENERAL FEATURES TECHNICAL FEATURES CLASSIFICATION UNDER REG. 2013.811.CE SIZE TURNING ON / OFF WITH ANTI-FREEZE MODE ACTIVATED OPERATION LOGIC REMOTE ROOM SENSOR TIME / TEMPERATURE DISPLAY DISPLAY BACKLIGHT INSTALLATION WIRELESS SYSTEM CONFIGURATION WIRINGS CONTROL OF A PELLET STOVE INSERTING / REPLACING THE BATTERIES BATTERY LEVEL KEYS AND KNOB FUNCTIONS DISPLAY...
  • Page 5 GENERAL FEATURES Wall-mounted and battery powered daily/weekly wireless programmable electronic thermostat, it allows to set the room temperature easily and precisely. Its main feature is the lack of electrical connections; in fact, on/off signals are transmitted to the receiving unit via radio, making the installation of this device easy and inexpensive, especially where there is no existing electrical system available.
  • Page 6 CLASSIFICATION UNDER REG. 2013.811.CE Class: Contribution to energy efficiency: SIZE 36mm 134mm TURNING ON / OFF WITH ANTI-FREEZE MODE ACTIVATED In order to deactivate or activate freetime evo, press the key“ “, The device will be in OFF condition and the display will show the writing “OFF” and the symbol “...
  • Page 7 Before installing the programmable thermostat in the desired position, it is necessary to test whether the receiving unit correctly receives its radio signals. This operation is performed by activating, on the freetime evo radio, the ‘Test’ mode; this function is activated by pressing the keys ‘...
  • Page 8 INSERTING / REPLACING THE BATTERIES In order to insert / replace the batteries, proceed as follows: 1. Open the plastic slider placed on the front of the product, which gives access to the battery compartment, sliding it to the left. 2.
  • Page 9 KEYS AND KNOB FUNCTIONS Double function key: - Access the setting of the Comfort temperature (Set-Point). - Setting the regulation in Comfort mode, when in “Time program setting”. Double function key: Double function key: Short press: Enter the “Time program setting“ mode. - Access the setting of the Economy temperature Pressed for 5 s: Switches from daily mode to weekly...
  • Page 10 DISPLAY The segments shows the time slot set to Comfort temperature The segments shows the time slot set to Economy temperature Week-day 1 Monday .. 7 Sunday*. Time Slots 0-24 hours Battery life indicator Set Comfort temperature (Setpoint) Set Economy temperature (Setpoint) Time / room temperature indication Indicates that the temperature displayed is the remote...
  • Page 11 DAILY - WEEKLY PROGRAM SETTING The programmable thermostat is set to daily mode by factory default. To set the daily or weekly programming mode of the programmable thermostat, perform the following operations: The display of the programmable thermostat shows the normal operation mode: WARNING! The access to the program setting mode IS NOT allowed on the following operations modes: Off, Pause, Holiday, Manual 24h, Permanent manual.
  • Page 12 COMFORT TEMPERATURE SETTING In order to set the Comfort temperature, follow this procedure: 1. Open the flap which gives access to the buttons. 2. Push the button “ “. 3. Rotate the knob, to adjust the regulation temperature (Set-point). 4. Confirm the set value with “ “...
  • Page 13 DAILY TIME PROGRAM SETTING During the normal operation, the upper and lower segments strip of the display show the regulation mode of freetime evo, which allows to customize the daily time program according to each proper need. The upper segments strip shows the temperature regulation on Comfort mode, while the lower one shows the temperature regulation on Economy. The default time program is shown below: FACTORY SETTINGS (DEFAULT) TIME SLOT...
  • Page 14 WEEKLY TIME PROGRAM SETTING During the normal operation, the upper and lower segments strip of the display show the regulation mode of freetime evo, which allows to customize the daily time program according to each proper need. The upper segments strip shows the temperature regulation on Comfort mode, while the lower one shows the temperature regulation on Economy. The default time program is shown below: FACTORY SETTINGS (DEFAULT) MONDAY ..
  • Page 15 Push the knob or the key “ “ in order to confirm the settings made; on the contrary, press the key “ “ to reset the last stored hourly schedule and exit from the “Time schedule” mode. Warning: By pressing the knob or the key “ “...
  • Page 16 PROGRAMMING EXAMPLE: During normal operation, push “ “ to enter the time schedule edit mode. The display shows: - “SEt PrG” to indicate the access to the edit mode of the time schedule. 1 2 3 4 5 Number 1 is blinking and it corresponds to Monday. Valid only if the programmable thermostat has been configured in “weekly programming”.
  • Page 17 After selecting the time from which you intend to modify the time schedule (in this case, from 5:00), proceed as follows: Push “ “ to set the comfort mode (on the time histogram, a segment is shown on the upper strip). 1 2 3 4 5 WARNING - In order to set the economy mode push “...
  • Page 18 In order to store the set time schedule and go to the time schedule of the next day, press the knob or the 1 2 3 4 5 “ “ button. Valid only if the programmable thermostat has been configured in “weekly programming”. Keep going with the setting of the time schedule as shown in this example (points 3 and 8), up to finish...
  • Page 19 MANUAL OPERATION MODE With the button “ “, freetime evo can be forced to regulate the room temperature independently from the time program. On manual operation mode the temperature regulation (Set-Point) can be modified at any time by turning the knob and it is independent from the Comfort and Economy temperature of the time program.
  • Page 20 OPEARATION MODE ON PAUSE / VACATION By pressing the button “ “, freetime evo stops the room temperature regulation taking itself on “Pause“ or “Vacation“ mode depending on the time set rotating the knob: Pause: time set less than 96 hours Vacation: time set more than 4 days (96 hours) This mode activates (by pushing the knob) a countdown time.
  • Page 21 In order to start the “Pause” or “Vacation” mode, push the knob or the button “ “ or wait 10 seconds. “ are still lit and freetime evo starts The symbols “ ” or ” the countdown. To exit the “Pause“ or “Vacation“ mode, push at any time the button “...

  • Page 22: Table Of Contents

    USER PARAMETERS SETTING On the menu “User parameters“ it is possible to configure all freetime evo radio settings. Below, there is the sequence to enter the view and/or edit mode of user parameters. From the normal operation screen, keep the knob pressed for more than 10 seconds.
  • Page 23 Entc Push the knob or the button “ “ to edit the parameter shown on 3. 0 the display. The display shows the value set on the specific parameter. Turn the knob clockwise or anti-clockwise to modify the parameters 3. 0 3.

  • Page 24: Entc Par

    USER PARAMETERS DETAILS Below, there is a detailed explanation on each single “User parameter”. “H_C PAr 1.0” HEATING/COOLING SETTING This setting allows you to reverse the operating logic of the relay depending on whether you are driving a heating or cooling device. This parameter can be set between: “HEAt”: Heating “COOL”: Cooling...

  • Page 25: Bp Par

    “bP PAr 7.1” PWM PROPORTIONAL BAND This parameter allows to customize the proportional band in the range 1.0°C .. +8.0°C. The device is default factory set with the parameter to 2°C. “t Int PAr 7.2” INTEGRATIVE TIME This parameter allows to customize the integral time of the proportional regulation in the range OFF / 5 .. 180 minutes, by 5 minutes steps. When set to OFF, no integral action will be done.
  • Page 26 “Entc PAr 3.0” is set to “rooM”), but the remote sensor is not connected or is faulty. The following writings: freetime evo radio does not regulate the room temperature and the output remains off. Check the SnEh alternated to Shrt or Open...
