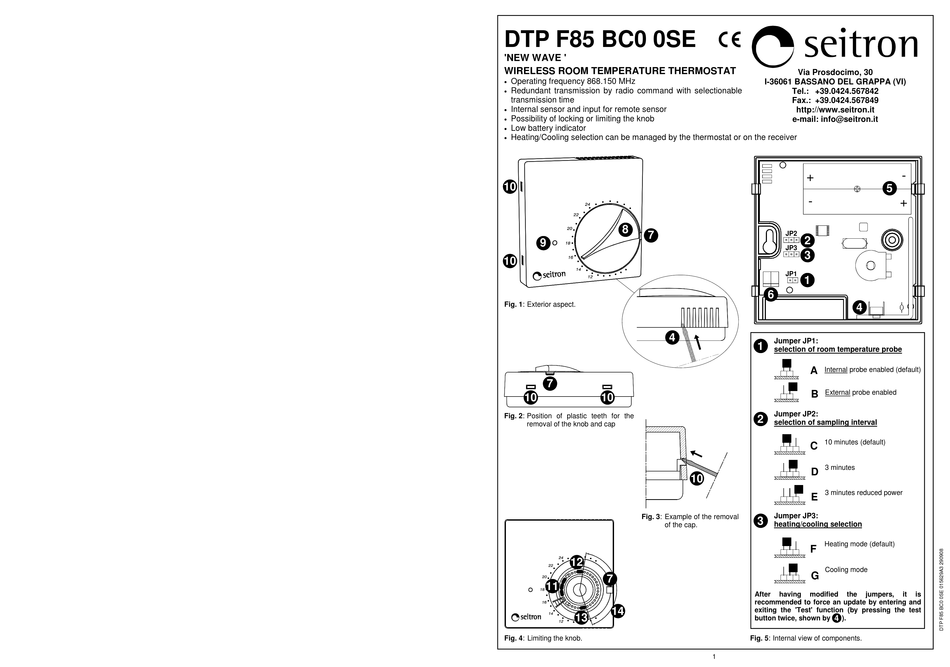

Seitron DTP F85 BC0 0SE Manual

DTP F85 BC0 0SE c c c c
'NEW WAVE '
WIRELESS ROOM TEMPERATURE THERMOSTAT
• Operating frequency 868.150 MHz
• Redundant transmission by radio command with selectionable
transmission time
• Internal sensor and input for remote sensor
• Possibility of locking or limiting the knob
Low battery indicator
•
• Heating/Cooling selection can be managed by the thermostat or on the receiver
10
8
7
9
10
Fig. 1: Exterior aspect.
4
7
10 10
Fig. 2: Position of plastic teeth for the
removal of the knob and cap
Fig. 3: Example of the removal
of the cap.
12
7
11
14
13
Fig. 4: Limiting the knob.
Via Prosdocimo, 30
I-36061 BASSANO DEL GRAPPA (VI)
Tel.: +39.0424.567842
Fax.: +39.0424.567849
http://www.seitron.it
e-mail: info@seitron.it
+
-
JP2
2
JP3
3
JP1
1
6
4
Jumper JP1:
1
selection of room temperature probe
A Internal probe enabled (default)
B External probe enabled
Jumper JP2:
2
selection of sampling interval
10 minutes (default)
C
3 minutes
D
10
3 minutes reduced power
E
Jumper JP3:
3
heating/cooling selection
Heating mode (default)
F
Cooling mode
G
After having modified the jumpers,
recommended to force an update by entering and
exiting the 'Test' function (by pressing the test
4
button twice, shown by ).
Fig. 5: Internal view of components.
1
-
5
+
it is
