Seitron freetime evo User Manual
Hide thumbs
Also See for freetime evo:
- User manual (28 pages) ,
- Manual (2 pages) ,
- Quick manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Seitron freetime evo
Summary of Contents for Seitron freetime evo

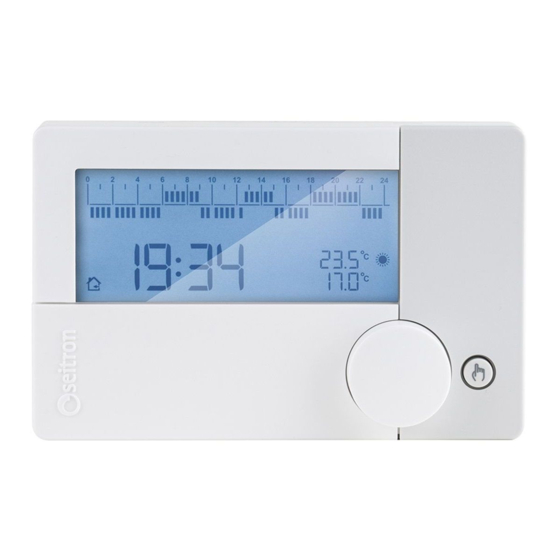

- Page 1 U S E R M A N U A L freetime evo Daily programmable thermostat...
-
Page 3: Technical Features
Featured with an input for the remote sensor connection, the device offers the possibility to regulate the Offset on the internal sensor or on the remote sensor (with this parameter it is possible to correct any systematic reading errors due to the placement of the freetime evo or the remote sensor, in areas which are not suitable for room temperature detection). -
Page 4: Operation Logic
REMOTE ROOM SENSOR The freetime evo is featured with an input for the connection of a remote sensor (optional). The remote sensor can be used to detect the room temperature if the programmable thermostat must be installed in a position which is not suitable for room temperature detection. -
Page 5: Installation
INSTALLATION WARNING - To properly set the room temperature, install the programmable thermostat far from heat sources, airstreams or particularly cold walls (thermal bridges). If a remote sensor is used, the note is applied to the sensor and not to the programmable thermostat. - In order to connect the external probe use cables with minimum section of 1,5 mm²... -
Page 6: Inserting / Replacing The Batteries
“ (completely empty), it means that the battery power is too low to allow the device to work properly and the output will always be off. In this case the freetime evo won’t regulate the temperature and the time schedule, the time and the detected room temperature won’t be displayed. - Page 7 - By pushing the knob for 10 seconds, it enters the mode “Setting User Parameters” and then: - Rotating the knob, the display shows all the advanced parameters of the freetime evo. - When a “User Parameter” is selected, pushing the knob it enters edit mode of the selected parameter: - By rotating the knob, it is possible to set the desired value/data.
- Page 8 The displayed room temperature is the one detected by the internal sensor. This symbol is only visible if a remote sensor is connected to the freetime evo. On the contrary the symbol will not be displayed because the only temperature shown is the one detected by the internal sensor.
- Page 9 DAILY TIME PROGRAM SETTING During normal operation the upper and lower segments strip of the display shows the regulation mode of the freetime evo, which allows to customize the daily time program according to each proper need.
- Page 10 TIME SCHEDULE EDITING - BRIEF DESCRIPTION Push “ “ to enter the editing of the time program. Rotate the knob to select the desired time without modifying the default time program. Push “ “ to set the comfort mode (on the time histogram bar it is shown the segment on the upper strip). Push “...
- Page 11 Turning the knob moves the time cursor, WITHOUT modifying the previously set time schedule. The corresponding segment will blink at the selected half hour. When the time from which it is desired to modify the time schedule has been selected (in this case hour 5:00) proceed as follows: Push “...
- Page 12 In order to store the set time schedule and exit from the mode “Time Schedule” push the knob or the button “ “ or wait 10 seconds without pushing any button. In order to cancel the modifications, restoring the last time program set, and exit from the mode “Hourly Schedule”...
-
Page 13: Manual Operation Mode
With the button “ “, the freetime evo can be forced to regulate the room temperature independently from the time program. On manual operation mode the temperature regulation (Set-Point) can be modified at any time by turning the knob and it is independent from the Comfort and Economy temperature of the time program. - Page 14 96 hours Vacation: time set more than 4 days (96 hours) With this mode, it is activated (pushing the knob) a countdown timer, and when it is expired resets the freetime evo to the previously set operation mode.
- Page 15 To exit the “Pause“ or “Vacation“ mode, push at any time the button “ “ or “ “. When the countdown is over, the freetime evo exits from the “Pause“ or “Vacation“ mode and resumes the previous operation mode. TCD02B0001SE 034070 130220...
- Page 16 USER PARAMETERS SETTING On the menu “User parameters“ it is possible to configure all the settings of the freetime evo. Below, there is the sequence to enter the view and/or edit mode of the user parameters. From the normal operation screen, keep the knob pressed for more than 10 seconds.
- Page 17 Push the knob or the button “ “ to edit the parameter shown on the display. The display shows the set data for that parameter. Turn the knob clockwise or anti-clockwise in order to modify the displayed data. Every change is automatically stored in memory. Push the knob or the button “...
- Page 18 USER PARAMETERS DETAILS Below, there is a detailed explanation on each single “User parameter”. “AFr PAr 1.0” ANTI-FREEZE SETTING The Anti-freeze mode allows you to select a minimum temperature to be maintained when the programmable thermostat is off, so as to protect both the room and the equipment when the room temperature falls below the set value.
-
Page 19: Troubleshooting
4. The programmable thermostat is deactivated; in order to activate the programmable thermostat press the button “ “. WARNING! By resetting the default data, the user parameters and the hourly program of the freetime evo will be restored to factory values. TROUBLESHOOTING PROBLEM... - Page 20 SEITRON S.p.A. a socio unico SEITRON S.p.A. a socio unico Via del Commercio, 9/11 36065 - Mussolente (VI) ITALY Via del Commercio, 9/11 36065 - Mussolente (VI) ITALY +39 0424 567 842 - info@seitron.it - www.seitron.com +39 0424 567 842 - info@seitron.it - www.seitron.com...
