Seitron freetime evo Quick Manual

Clock setting
Set time
Push for 3 sec.
Setting the set point temperature
Comfort temperature setting
Economy temperature setting
Time program setting
Comfort
Economy
WARRANTY
Regarding the continuous development of its products, the manufacturer reserves the right to make changes in technical data
and performance without prior notice. The consumer is guaranteed against product conformity defects according to European
Directive 2019/771 EU as well as the manufacturer's warranty policy document. The full text of the warranty is available from the
seller upon request.
Set minutes
Confirm
Confirm
Confirm
Set Comfort temp. Set Economy temp.
Select time
or
Each time the or key is pressed,
the time cursor automatically moves to the
next half hour.
WIST03250ESE 040216 191022
Kit freetime evo radio
Store

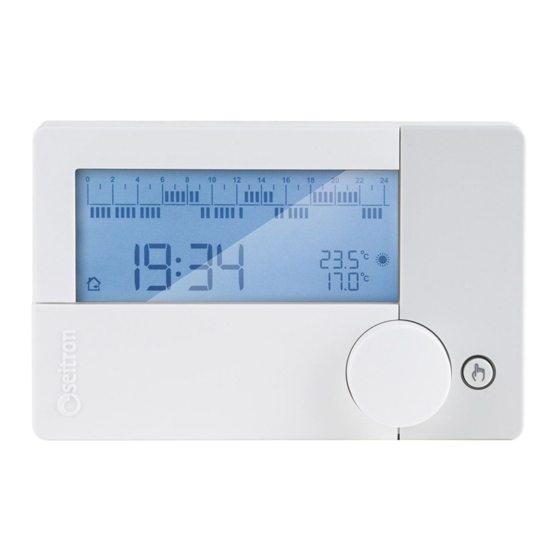

Wireless programmable thermostat kit
WARNING!
THE DEVICES IN THIS KIT HAVE BEEN
DONE, THEY ARE READY FOR USE.
radio RECEIVER
TECHNICAL FEATURES
Power supply: 230V
Outputs: 6(4)A 250V
Type of action: 1
Pollution degree 2
EMC test voltage: 230V
EMC test current: 45mA
INSTALLATION
WARNING!
Store
- Before wiring the appliance be sure to turn the mains power off.
- Before proceeding with the installation of the receiver, make sure that the radio signals transmitted by the thermostats are
correctly received by the receiver.
- Installation and electrical wirings of this appliance must be made by qualified technicians and in compliance with the current
standards.
Cut off mains power.
1
Using a screwdriver, push the plastic flap of the bottom slot and
2
slightly lift the cable lid up.
Go to the site www.seitron.com
and dowload the complete manual
CONTACT US
customer.care@seitron.it
TALK WITH US
+39 0424 567842
FACTORY PRE-MATCHED: ONCE THE MECHANICAL INSTALLATION IS
50Hz/ 24V Thermoregulation class:
(voltage free contacts) Software class:
Ball pressure test temperature:
Rated impulse voltage:
50 Hz Size:
IV (2%)
A
75°C
2500V
78x125x30,5 mm
(LxAxP)
Fig. 1
