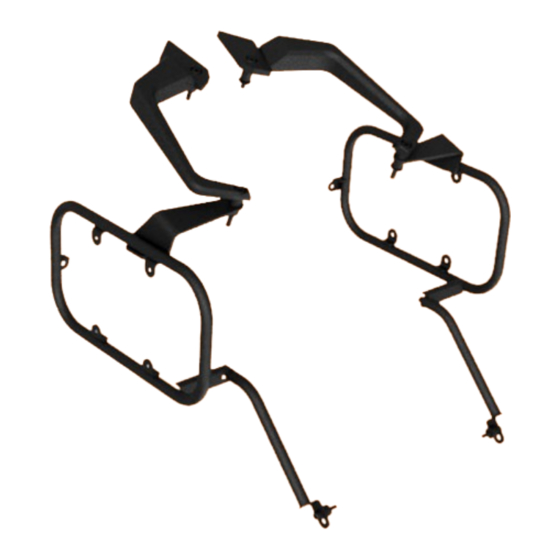

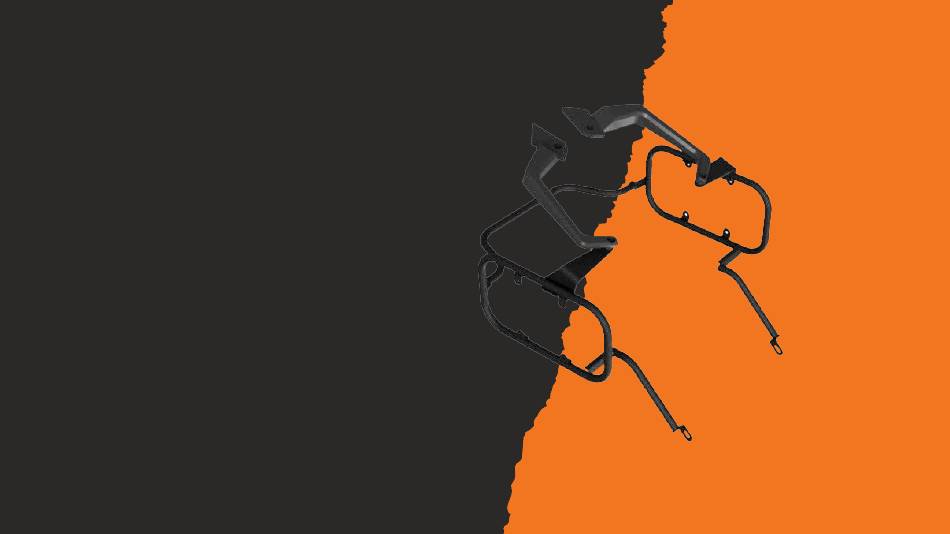

- Page 1 I N S T A L L A T I O N M A N U A L SADDLE STAY...
- Page 2 STEP 1: UNMOUNTING GRAB RAIL Unmount the Pillion Grab rail with appropriate Allen key.
- Page 3 STEP 2: MOUNTING SADDLE STAY RING. To mount the saddle stay Ring (2), take the 8mm hole diameter spacers (3) and mount the ring to grab rail (1) in configuration show in the figure. 1 GRAB RAIL 2 SADDLE STAY Use the 50mm M8 Bolt in front mounting hole and 40mm M8 Bolt in the Rear mounting hole of grab rail.
- Page 4 STEP 3: MOUNTING PEG BRACE To mount the peg brace, use 20mm M6 bolts with washer to attach it to saddle stay ring. 1 SADDLE STAY Now mount the other end of peg brace to the pillion footrest using a...
- Page 5 STEP 4: MOUNTING SADDLE STAY RING. Now follow the same procedure as step 2 and step 3 to mount the saddle stay ring on the other side of the motorcycle.
- Page 6 MOUNTING CROSS BRACE Once both side saddle stay ring and peg brace are mounted. Mount the cross brace with left and right saddle stay using the 20mm M6 Allen Bolt, M6 Washers and M6 Nylon Locknut provided with the kit.
