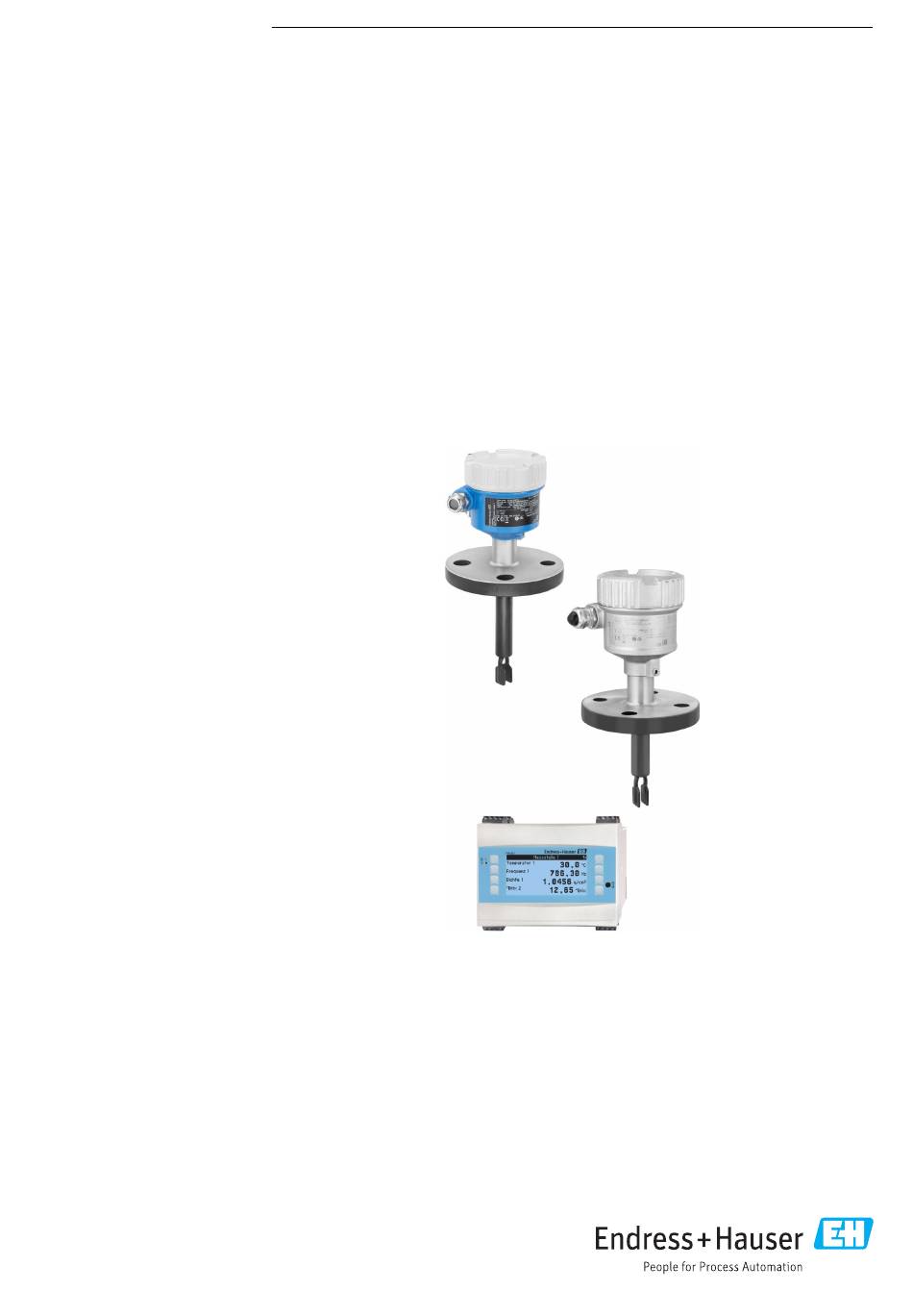

- Page 1 Products Solutions Services BA02047F/00/EN/03.22-00 71578263 2022-06-30 Valid as of version 01.00.zz Operating Instructions Liquiphant FTL62 Density Vibronic Density measurement for liquids...
- Page 2 Liquiphant FTL62 Density Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
Liquiphant FTL62 Density Table of contents Table of contents Connecting the device ....18 About this document ....5 6.3.1... - Page 4 Table of contents Liquiphant FTL62 Density 14.3 Extension cards ..... . . 28 14.4 PROFINET® Interface ....29 Technical data .
-
Page 5: About This Document
Liquiphant FTL62 Density About this document About this document Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Symbols In Graphics
Basic safety instructions Liquiphant FTL62 Density Series of steps 1.2.5 Symbols in graphics A, B, C ... View 1, 2, 3 ... Item numbers Hazardous area Safe area (non-hazardous area) Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements to carry out the necessary tasks, e. g., commissioning and maintenance:... -
Page 7: Operational Safety
It meets the general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. -
Page 8: Product Design
Incoming acceptance and product identification Liquiphant FTL62 Density Product design A0042276 1 Liquiphant FTL62 product design Housing with electronic insert FEL60D and cover Temperature spacer, pressure-tight feedthrough (second line of defense), optional Process connection flange Pipe extension probe with tuning fork... -
Page 9: Product Identification
All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided. • Enter the serial number on the nameplate into the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the Endress+Hauser Operations app 4.2.1... -
Page 10: Mounting
Mounting Liquiphant FTL62 Density A0042281 2 Handling the device during transportation Mounting WARNING Loss of protection rating if the device is opened in a wet environment. ‣ Only open the device in a dry environment! Mounting instructions • Any orientation for device with short pipe up to approx. 500 mm (19.7 in) •... -
Page 11: Flow Velocity - Installation In Pipes
Liquiphant FTL62 Density Mounting A0039685 Unit of measurement mm (in) Installation from above Installation from below Installation from the side 5.1.1 Flow velocity - installation in pipes Installing the tuning fork in the medium flow • Flow velocity: < 2 m (6.6 ft) per second •... -
Page 12: Correction Factor
Mounting Liquiphant FTL62 Density To comply with the accuracy specification, the inlet run must meet the following requirements: Inlet run: ≥ 5x DN (nominal diameter) - min. 750 mm (29.5 in) ≥ ≥ 5×DN 2×DN >750 (29.5) >250 (9.84) A0039700 6 Installing the inlet run. - Page 13 Liquiphant FTL62 Density Mounting Standard installation Correction factor "r" as a factor of height "h", for entering in the Density Computer FML621 or ReadWin2000: 12 mm (0.47 in) 1.0026 14 mm (0.55 in) 1.0016 16 mm (0.63 in) 1.0011 18 mm (0.71 in) 1.0008...
- Page 14 Mounting Liquiphant FTL62 Density 80 mm (3.15 in) 1.0008 82 mm (3.23 in) 1.0006 84 mm (3.31 in) 1.0005 86 mm (3.39 in) 1.0004 88 mm (3.46 in) 1.0003 90 mm (3.54 in) 1.0003 92 mm (3.62 in) 1.0002 94 mm (3.70 in) 1.0002...
-
Page 15: Avoid Buildup
Liquiphant FTL62 Density Mounting 92 mm (3.62 in) 1.0002 94 mm (3.70 in) 1.0001 96 mm (3.78 in) 1.0001 98 mm (3.86 in) 1.0001 100 mm (3.94 in) 1.0001 >100 mm (3.94 in) 1.0000 5.1.4 Avoid buildup NOTICE The presence of buildup or corrosion on the tuning fork affects the result of the measurement and must be avoided! ‣... -
Page 16: Mounting The Device
Mounting Liquiphant FTL62 Density A0039742 9 Support in the event of dynamic load Mounting the device 5.2.1 Required tool • Open-ended wrench for securing the flange • Allen key for housing locking screw 5.2.2 Installation Align the tuning fork using the marking The tuning fork can be aligned using the marking in such a way that the medium drains off easily and buildup is avoided. -
Page 17: Post-Mounting Check
Liquiphant FTL62 Density Mounting A0042208 11 Installation in pipes (take fork position and marking into consideration) Aligning the cable entry 4 3.5 Nm A0042214 12 Housing with external locking screw and drip loop The locking screw is not tightened when the device is delivered. -
Page 18: Electrical Connection
Electrical connection Liquiphant FTL62 Density Electrical connection Required tool • Screwdriver for electrical connection • Allen key for screw of cover lock Connection requirements 6.2.1 Cover with securing screw In the case of devices for use in the hazardous area with a certain type of protection, the cover is sealed by a securing screw. - Page 19 Liquiphant FTL62 Density Electrical connection Terminal assignment The output signal of the density sensor is based on pulse technology. With the aid of this signal, the fork frequency is continuously forwarded to the Density Computer FML621. Pulse – L+ L- PE...
- Page 20 Electrical connection Liquiphant FTL62 Density Adjustment There are 3 different types of adjustment: • Standard adjustment (order configuration): Two fork parameters are determined at the factory to describe the sensor characteristics and are provided in the calibration report with the product. These parameters must be transmitted to the Density Computer FML621.
-
Page 21: Connecting The Cables
Liquiphant FTL62 Density Electrical connection A0039632 15 Density measurement with Density Computer FML621 Liquiphant Density → Pulse output Temperature sensor, e.g. 4 to 20 mA output Pressure transmitter 4 to 20 mA output required for changes in pressure >6 bar... -
Page 22: Post-Connection Check
Electrical connection Liquiphant FTL62 Density 24/25 mm 8.0 Nm A0018023 16 Example of coupling with cable entry, electronic insert with terminals M20 coupling (with cable entry), example Conductor cross-section maximum 2.5 mm (AWG14), ground terminal on inside in housing + terminals on the electronics Conductor cross-section maximum 4.0 mm... -
Page 23: Operation Options
Liquiphant FTL62 Density Operation options Operation options Overview of operation options 7.1.1 Operating concept Operation with the Density Computer FML621. For details, see documentation for the Density Computer FML621. 7.1.2 Elements on the electronic insert Pulse – A0039683 17... -
Page 24: Operation
Operation Liquiphant FTL62 Density Operation Light signals Yellow LED Symbols, information Stable measurement Unstable measurement/process conditions Maintenance required Green LED Symbols, information / Power on / Power off Red LED Symbols, information No fault Maintenance required Device failure For more information, see the Technical Information for Liquiphant Density. -
Page 25: Firmware History
WARNING Incorrect repair can affect electrical safety! Explosion Hazard! ‣ Only specialist personnel or the Endress+Hauser service team may carry out repairs on Ex-certified devices. ‣ Relevant standards and national regulations on hazardous areas, safety instructions and certificates must be observed. -
Page 26: Spare Parts
Accessories for Liquiphant Density Liquiphant FTL62 Density 12.2 Spare parts • Some replaceable device components are identified by a spare part nameplate. This contains information about the spare part. • All the spare parts for the measuring device, along with the order code, are listed in the W@M Device Viewer (www.endress.com/deviceviewer) and can be ordered. -
Page 27: Weather Protection Cover For Single Compartment Housing, Aluminum Or 316L, Cast
Liquiphant FTL62 Density Accessories for Liquiphant Density 228.9 (9.01) 136.4 (5.37) 92.5 (3.64) 170.5 (6.71) 81 (3.19) 103 (4.06) A0039231 18 Weather protection cover for dual compartment housing, aluminum. Unit of measurement mm (in) 13.3 Weather protection cover for single compartment housing, aluminum or 316L, cast •... -
Page 28: Additional Accessories
Accessories for Density Computer FML621 Liquiphant FTL62 Density 13.5 Additional accessories Documentation currently available can be found on the Endress+Hauser website: www.endress.com → Downloads. Accessories for Density Computer FML621 14.1 Device Viewer All the spare parts for the device, along with the order code, are listed in the Device Viewer (www.endress.com/deviceviewer). -
Page 29: Profinet® Interface
Ex connection data See safety instructions (XA): All data relating to explosion protection are provided in separate Ex documentation and are available from the Downloads Area of the Endress+Hauser-website. The Ex documentation is supplied as standard with all Ex devices. Endress+Hauser... -
Page 30: Environment
Technical data Liquiphant FTL62 Density 15.3 Environment 15.3.1 Ambient temperature range –40 to +70 °C (–40 to +158 °F) In the hazardous area, the permitted ambient temperature can be limited depending on the zones and gas groups. Pay attention to the information in the Ex documentation (XA). -
Page 31: Mechanical Load
Canadian CRN approval: more details about the maximum pressure values are available in the download area of the product page under: www.endress.com→ Downloads. 15.5 Additional technical data • Technical information Liquiphant FTL62 Density: TI01553F • Technical information Liquiphant FTL62: TI01539F Endress+Hauser... -
Page 32: Index
Index Liquiphant FTL62 Density Index About this document W@M Device Viewer ..... . 9, 26 Symbols - description ..... . . 5 Workplace safety . - Page 36 *71578263* 71578263 www.addresses.endress.com...
