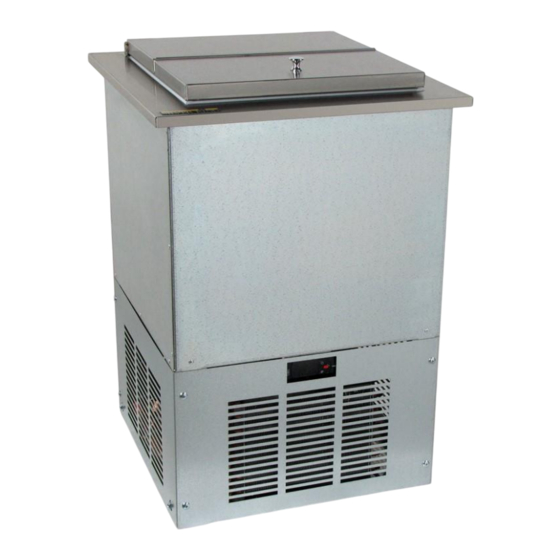

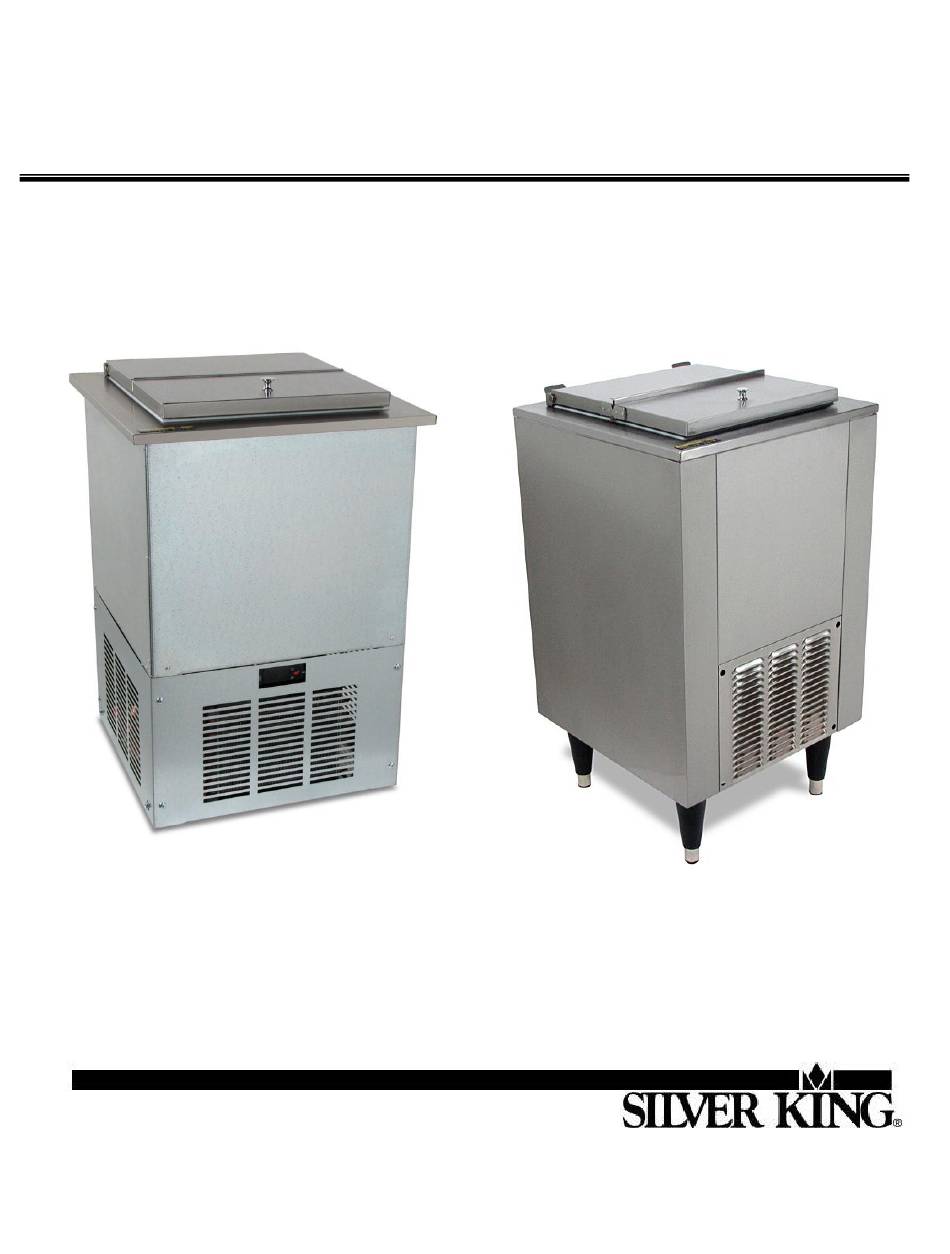

- Page 1 Technical Manual Replacement Parts List Ice Cream Cabinets MODEL SKFDI18 115V MODEL SKFI18 115V Marmon Foodservice Technologies 355 Kehoe Blvd., Carol Stream, IL 60188 Contact: (800) 328-3329 Silverking.com FORM NO. 45322-SK REV E 07/2022 Specifications Subject to Change Without Notice.
-
Page 2: Read And Follow All Safety Instructions
INSPECT FOR DAMAGE AND UNCRATE Upon delivery of your new Silver King unit, uncrate at once to inspect for possible damage following the instructions printed on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for any evidence of mishandling. -
Page 3: Different Types Of Alerts
Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed. Caution – Risk of fire or explosion. To be repaired only by trained service personnel. Use only Silver King approved replacement parts. Flammable refrigerant used. Caution –... -
Page 4: Installation
SAFETY PRECAUTIONS (Continued): WARNING - Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer. WARNING - Appliances and their surroundings shall not attain excessive temperatures in normal use. WARNING - Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. - Page 5 Your Silver King refrigerator is equipped with an eight (8) foot power cord. Any attempt to modify the plug will void the warranty, terminate the manufacturers responsibility, and could result in serious injury.
- Page 7 R290 R PECIALIZED RECAUTIONS AND UIDELINES FOR ERVICING NITS SING EFRIGERANT: Qualification of Service Personnel/Workers: Required qualification of working personnel for maintenance, service and repair operations. Every working procedure that affects safety means shall only be carried out by competent persons. Examples for such working procedures are: ·...
- Page 8 Checks to the Refrigeration Equipment: Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s technical department for assistance.
- Page 9 Cabling: Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse physical or environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
-
Page 10: Charging Procedures
Charging Procedures: In addition to conventional charging procedures, the following requirements shall be followed. WARNING: Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. WARNING: Cylinders shall be kept in an appropriate position according to the instructions. -
Page 11: Operation
Defrost The Silver King freezer is a manual defrost unit. The unit should be defrosted whenever the walls accumulate a frost layer that is 1/4 inch thick. To defrost the unit, disconnect the Power Cord from the electrical receptacle and remove or open the Lid Assembly. After the frost has melted or come loose from the walls, wipe out the cabinet interior. - Page 13 REPLACEMENT PARTS LIST – SKFDI18, SKFI18 ITEM NO. PART DESCRIPTION PART NO. BREAKER STRIP (4 REQ'D) 42286-05 COMPRESSOR KIT 115V/60HZ (W/ ELECTRICALS) 11700-2 COMPRESSOR ELECTRICAL KIT (RELAY/OVERLOAD) 115V/60HZ 11701-2 GROMMET COMPRESSOR MOUNT 20481 WASHER COMPRESSOR MOUNT 22401-SK CLIP HAIRPIN COMPRESSOR MOUNT 98106 CONDENSER COIL 39255...
- Page 15 86.0 Figure 1 89.6 93.2 Table 1 Thermistor Description Part Number 96.8 60” black 46128 100.4 120” black 46141 60” green 46127 120” green 46140 96” black 38822 P/N 45810 - Rev C SILVER KING WARRANTY – LEGACY PRODUCT LINE...
- Page 16 TC Comments 9/23/19 Silver King warrants to the original purchaser of every new Silver King Legacy refrigerated self- contained unit (as defined below), that the Equipment shall be free from defects in material and workmanship under normal use and service as outlined in the Technical Manual for a period of one (1) year from the later of either (a) the date of shipment from the manufacturer or (b) the date of installation (the “Warranty Period”), but in no event shall the Warranty Period commence...
