Technical Manual
and
Replacement Parts List
Refrigerated Chef Base

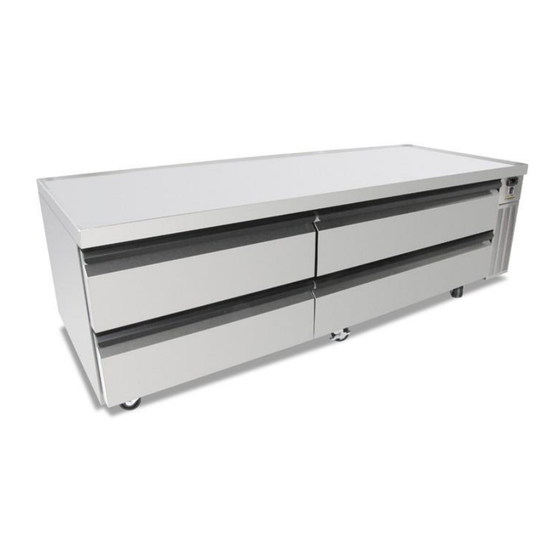

MODELS: SKRCB79H-EDUS3 (SHOWN)
SKRCB84H-EDUS3
Marmon Foodservice Technologies
355 Kehoe Blvd., Carol Stream, IL 60188
Contact: (800) 328-3329
Silverking.com
FORM NO. 47022 REV B 07/2022
Specifications Subject to Change Without Notice.
1
Advertisement
Table of Contents
Related Manuals for Silver King SKRCB79H-EDUS3
Summary of Contents for Silver King SKRCB79H-EDUS3
- Page 1 Technical Manual Replacement Parts List Refrigerated Chef Base MODELS: SKRCB79H-EDUS3 (SHOWN) SKRCB84H-EDUS3 Marmon Foodservice Technologies 355 Kehoe Blvd., Carol Stream, IL 60188 Contact: (800) 328-3329 Silverking.com FORM NO. 47022 REV B 07/2022 Specifications Subject to Change Without Notice.
-
Page 2: Read And Follow All Safety Instructions
INSPECT FOR DAMAGE AND UNCRATE Upon delivery of your new Silver King unit, uncrate at once to examine and test for possible damage following the instructions printed on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for any evidence of mishandling. -
Page 3: Safety Precautions
Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed. Caution – Risk of fire or explosion. To be repaired only by trained service personnel. Use only Silver King approved replacement parts. Flammable refrigerant used. Caution –... - Page 4 CAUTION - Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant used. SAFETY PRECAUTIONS (Continued): WARNING - Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer.
-
Page 5: Installation
At no time should the drawers be extended and used as a platform for standing on to reach elevated equipment. Energy Rating Your Silver King refrigerator has a class 4 energy rating. The refrigerator was tested at an ambient temperature of 40°C at 40% relative humidity. - Page 6 R290 R PECIALIZED RECAUTIONS AND UIDELINES FOR ERVICING NITS SING EFRIGERANT: Qualification of Service Personnel/Workers: Required qualification of working personnel for maintenance, service and repair operations. Every working procedure that affects safety means shall only be carried out by competent persons. Examples for such working procedures are: ·...
- Page 7 Checks to the Refrigeration Equipment: Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s technical department for assistance.
- Page 8 Cabling: Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse physical or environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
- Page 9 Charging Procedures: In addition to conventional charging procedures, the following requirements shall be followed. WARNING: Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. WARNING: Cylinders shall be kept in an appropriate position according to the instructions.
-
Page 10: Operation
Defrost Your Silver King refrigerator will defrost naturally and no additional plumbing is required. Evaporator defrosting is accomplished when frost buildup on the Evaporator Coil is cleared during Compressor “off” cycles. Defrost water is collected in a pan located in the compressor compartment where it is evaporated into the room air. - Page 12 REPLACEMENT PARTS LIST – SKRCB79H/84H-EDUS3 ITEM NO. PART DESCRIPTION PART NO. DRAWER ASSEMBLY COMPLETE (2 PAN DRAWER) 46652 DRAWER HANDLE (2 PAN DRAWER) 10451-10 DRAWER GASKET (2 PAN DRAWER) 10310-55 DRAWER ASSEMBLY COMPLETE (3 PAN DRAWER) 46653 DRAWER HANDLE (3 PAN DRAWER) 10451-11 DRAWER GASKET (3 PAN DRAWER) 10310-56...
- Page 14 Thermistor Field Testing Use the guide below to test if a thermistor (temperature probe) is functioning properly. See the replacement parts list for part number information. Table 2 is valid for all thermistors listed on table 1. • Establish Thermistor Temperature Table 2 Check the display’s temperature reading.
- Page 15 90 DAY REPLACEMENT PARTS WARRANTY Silver King warrants to the original Equipment purchaser that a replacement OEM part thereof will be free of defects in material and workmanship, under normal use and service, for a period of 90 days from the date of original purchase of such replacement OEM part subject to all terms and conditions herein.
- Page 16 Silver King’s review to be inefficient or inoperative due to defects in material or factory workmanship.
-
Page 17: Product Ordering Information
An RMA (Returned Merchandise Authorization) form must be completed and then approved by Silver King. Please contact Silver King for details. Restocking fee will apply. All electrical equipment is single phase. Prices, designs, and specifications are subject to change without notice.
