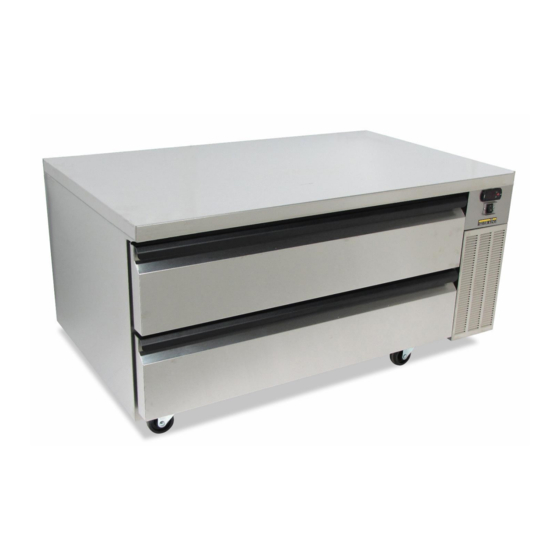

- Page 1 Technical Manual Replacement Parts List Chef Bases MODEL: SKFCB50H-EDUS1 Marmon Foodservice Technologies 355 Kehoe Blvd., Carol Stream, IL 60188 Contact: (800) 328-3329 Silverking.com FORM NO. 46883 REV B 08/2022 Specifications Subject to Change Without Notice.
- Page 2 INSPECT FOR DAMAGE AND UNCRATE Upon delivery of your new Silver King unit, uncrate at once to examine and test for possible damage following the instructions printed on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for any evidence of mishandling.
-
Page 3: Different Types Of Alerts
Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed. Caution – Risk of fire or explosion. To be repaired only by trained service personnel. Use only Silver King approved replacement parts. Flammable refrigerant used. Caution –... -
Page 4: Installation
SAFETY PRECAUTIONS (Continued): WARNING - Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer. WARNING - Appliances and their surroundings shall not attain excessive temperatures in normal use. WARNING - Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. - Page 5 At no time should the drawers be extended and used as a platform for standing on to reach elevated equipment. Energy Rating Your Silver King unit has a class 4 energy rating. The unit was tested at an ambient temperature of 40°C at 40% relative humidity. R290 R PECIALIZED...
- Page 6 Qualification of Service Personnel/Workers: Required qualification of working personnel for maintenance, service and repair operations. Every working procedure that affects safety means shall only be carried out by competent persons. Examples for such working procedures are: · Breaking into the refrigerating circuit. ·...
- Page 7 Checks to the Refrigeration Equipment: Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s technical department for assistance.
-
Page 8: Charging Procedures
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse physical or environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. - Page 9 WARNING: Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. WARNING: Cylinders shall be kept in an appropriate position according to the instructions. WARNING: Ensure that the REFRIGERATING SYSTEM is earthed prior to charging the system with refrigerant.
-
Page 10: Operation
Your Silver King unit is equipped with a seven (7) foot power cord. Any attempt to modify the plug will void the warranty, terminate the manufacturers responsibility, and could result in serious injury. - Page 12 REPLACEMENT PARTS LIST – SKFCB50H-EDUS1 ITEM PART DESCRIPTION PART NO. DRAWER ASSEMBLY COMPLETE (3 PAN DRAWER) 37784 DRAWER HANDLE (3 PAN DRAWER) 26025 DRAWER GASKET (3 PAN DRAWER) 10310-56 CABINET SLIDE MEMBER RH KIT 10451- CABINET SLIDE MEMBER LH 08 (1...
- Page 13 Thermistor Field Testing...
- Page 14 86.0 Figure 1 89.6 Table 1 93.2 Thermistor Description Part Number 96.8 60” black 46128 120” black 100.4 46141 60” green 46127 120” green 46140 96” black 38822 P/N 45810 - Rev C SILVER KING WARRANTY – LEGACY PRODUCT LINE...
- Page 15 90 DAY REPLACEMENT PARTS WARRANTY Silver King warrants to the original Equipment purchaser that a replacement OEM part thereof will be free of defects in material and workmanship, under normal use and service, for a period of 90 days from the date of original purchase of such replacement OEM part subject to all terms and conditions herein.
-
Page 16: Product Ordering Information
Silver King’s review to be inefficient or inoperative due to defects in material or factory workmanship. FIVE (5) YEAR COMPRESSOR WARRANTY Silver King warrants to the original Equipment purchaser for a period of time not to exceed the following: five... -
Page 17: Terms And Conditions
An RMA (Returned Merchandise Authorization) form must be completed and then approved by Silver King. Please contact Silver King for details. Restocking fee will apply. All electrical equipment is single phase. Prices, designs, and specifications are subject to change without notice.
